24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

Name: 24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2402
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2402

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Integrate BMS LTO Battery Pack, 24V 2.6Ah LTO Battery Pack, Solar Tracking Systems LTO Battery Pack


Chemical Formula:	Lithium Titanate Oxide	Nominal Voltage:	24V
Nominal Capacity:	2.6Ah	Rated Energy:	62.4Wh
Resistance:	≤85mΩ	Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Product Dimension(W×D×H):	195x71x57mm	Weight:	1.1kg
Self Discharge:	2% Per Month

Chemical Formula:	Lithium Titanate Oxide
Nominal Voltage:	24V
Nominal Capacity:	2.6Ah
Rated Energy:	62.4Wh
Resistance:	≤85mΩ
Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Product Dimension(W×D×H):	195x71x57mm
Weight:	1.1kg
Self Discharge:	2% Per Month

Description

24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

Ecolite 24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

Features

Lithium Titanate(LTO).

The Safest Lithium Technology.

Integrated Battery Management System(BMS).

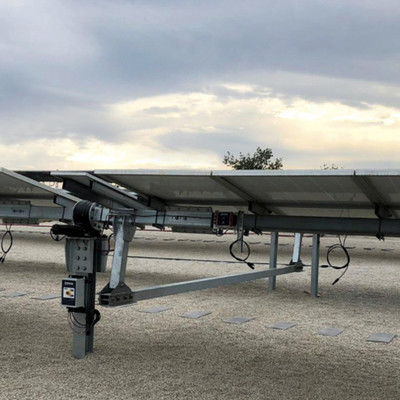

Suitable for solar tracking systems.

Supports a five-year warrenty.

Performance

Long Cycle Life＞10000cycles,Remaining capacity＞80%@25℃,1C/1C,100%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

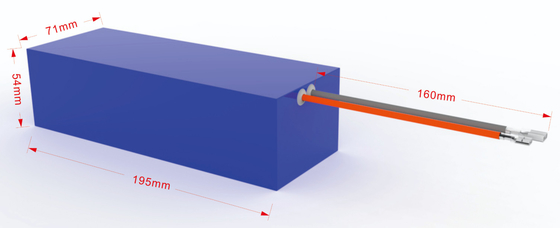

Three views of product

24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS 0

Product specificatio6

Lithium Titanate(LTO) ECOLTO2402(24V2.6Ah)

Electrical Parameters		Mechanical Parameters
Nominal Voltage	24V	Dimension(L×W×H)	195x71x57mm
Nominal Capacity	2.6Ah	Dimension(L×W×H)	7.68x2.80x2.13"
Energy	62.4Wh	Weight	1.1kg
Resistance	≤ 85mΩ	Terminal Type	FASTON 187,FASTIN-FASTON 250
Efficiency	0.98	Battery Housing	PVC
Cycle Life(25℃,1C/1C,100％DOD)	>10000cycles,Remaining capacity＞80％	Housing Protection	IP20
Self Discharge	2% per Month	Cell Type-Chemistry	LTO Cell
Cell in Series/Parallel	10S/2P	Communication(Optional)	UART(Voltage,Current,Temperature)
Discharge Parameters		Charge Parameters
Continuous Discharge Current	5.2A	Charge Method	CC-CV
Pulse Discharge Current	20A (<1S)	Charge Voltage	27.5V-28V
Recommended Volt. Disconnect	15V	Recommended Float Voltage	27.0V-27.5V
BMS Discharge Cut-off Voltage	17V	Recommended Charge Current	2.6A
Reconnect Voltage	18V	Maximum Charge Current	5.2A
Short Circuit Protection	200-500us	BMS Charge Cut-off Voltage	28.5V
Temperature Parameters
Discharge Temperature	-40 to 65 ℃
Charge Temperature	-40 to 65 ℃
Storage Temperature	0 to 45℃
BMS High Temperature Cut-off	65 ℃
