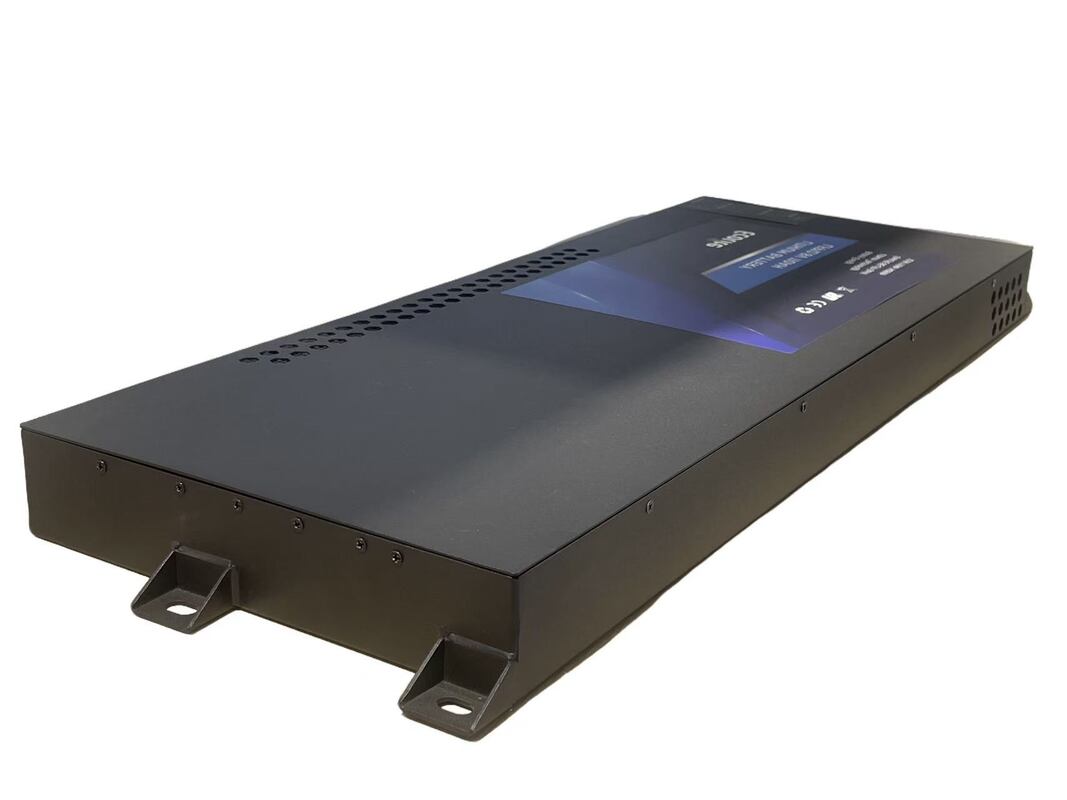

12.8V 300Ah LiFePO4 RV Battery Bluetooth App Monitoring 3840Wh Smart BMS

Product Details

Place of Origin: Guangdong, China

Brand Name: WNRLN

Certification: ISO 9001:2015, CE, UN38.3

Model Number: RV-12V300Ah-BT

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD 1150-1550 / Set

Packaging Details: Export-grade carton with shock-proof foam insert

Delivery Time: 15-25 days after deposit

Payment Terms: T/T, L/C, PayPal, Western Union

Supply Ability: 600 Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

Bluetooth App Monitoring

,

3840Wh RV Power Bank

,

Smart BMS Cell Balancing

Voltage:
12.8V
Capacity:
300Ah
Energy:
3840Wh
Cycle Life:
4000 Cycles @ 80% DOD
Cell Chemistry:
LiFePO4
Monitoring:
Bluetooth 5.0 App
Max Continuous Discharge:
150A (1920W)
Max Charge Rate:
100A
Application:
RV, Campervan, Off-Grid With App Monitoring
Voltage:
12.8V
Capacity:
300Ah
Energy:
3840Wh
Cycle Life:
4000 Cycles @ 80% DOD
Cell Chemistry:
LiFePO4
Monitoring:
Bluetooth 5.0 App
Max Continuous Discharge:
150A (1920W)
Max Charge Rate:
100A
Application:
RV, Campervan, Off-Grid With App Monitoring
Description
12.8V 300Ah LiFePO4 RV Battery Bluetooth App Monitoring 3840Wh Smart BMS

Product Overview

This 12.8V 300Ah LiFePO4 RV battery puts complete battery intelligence in your pocket with Bluetooth app monitoring. View state of charge, cell voltages, temperature and remaining runtime in real time from your smartphone, plus configure charge parameters and receive low-voltage alerts.

Core Selling Point: Smart Battery Monitoring

  • Bluetooth App: real-time SOC, voltage, temperature, health data
  • 3840Wh capacity: 3-5 days of typical RV power use
  • Smart BMS: active cell balancing for maximum capacity
  • Custom alerts: low voltage, high temp push notifications
  • History logging: track charge/discharge patterns

Technical Specifications

Nominal Voltage12.8V
Nominal Capacity300Ah
Energy3840Wh
Cycle Life4000 cycles @ 80% DOD
MonitoringBluetooth 5.0 App (iOS/Android)
Max Continuous Discharge150A (1920W)
Max Charge Rate100A
BMSSmart BMS with active balancing

Discharge Characteristics

Discharge RateCapacity RetentionEnd VoltageMax Duration
0.5C (150A)100%12.2VContinuous
1C (300A)98%11.8VContinuous
1.5C (450A)95%11.4V30 min
2C (600A)90%11.0V3 seconds (peak)

Charging Parameters

ParameterStandard ChargingFast Charging
Charging Current0.2C (60A)0.5C (150A)
Charging Voltage14.6V (3.65V/cell)14.6V (3.65V/cell)
Charging Time (0-100%)5 hours2.5 hours
Charge Efficiency95%94%
Recommended Charger12V LiFePO4 charger 60-150A

Bluetooth Monitoring Features

FeatureDetail
Real-time SOCState of charge with 1% accuracy
Cell VoltagesIndividual cell voltage display
TemperatureCell and BMS temperature monitoring
History Logs30-day charge/discharge history
AlertsPush notifications for low voltage / high temp
ConfigurationAdjust charge/discharge parameters via App

Dimension Options (Reference)

ModelLength (mm)Width (mm)Height (mm)Weight (kg)
RV-12V300Ah-BT-A52027022031
RV-12V300Ah-BT-B56025024032
RV-12V300Ah-BT-C (custom)Per drawingPer drawingPer drawingVaries

Smart BMS Protection

Protection FunctionThresholdResponse
Overcharge Protection3.75V per cellDisconnect charging
Over-discharge Protection2.5V per cellDisconnect load
Overcurrent Protection2C (600A)Disconnect within 3s
Short Circuit ProtectionImmediateDisconnect instantly
High Temperature Protection65 degrees CReduce current / cutoff
Cell Balancing+/- 15mVActive balancing

Packaging & Shipping

ItemDetail
PackagingExport-grade carton with shock-proof foam insert
Transport ClassificationUN3480, Class 9 dangerous goods
DocumentsMSDS, UN38.3 test report, CO, Commercial Invoice
Shipping MethodsSea freight, air freight (per regulation)
Lead Time15-25 days after deposit

Why Choose Bluetooth Monitoring for RV

RV power systems fail silently - by the time you notice low voltage, the fridge has already shut down or the water pump has stopped. Bluetooth monitoring gives you complete visibility: check SOC from your phone while sitting in the camp chair, get alerted when voltage drops below your preset threshold, and review usage history to right-size your solar setup. For RVers who want to understand and optimize their power system, App monitoring transforms the battery from a black box into an informative dashboard.

Application Case Study

Case: Solar Sizing Optimization
A boondocking RVer used the Bluetooth App's 30-day history to discover their fridge consumed 40% of daily energy. By adding a solar blanket and adjusting charge parameters via the App, they extended off-grid autonomy from 2 days to 5 days without adding battery capacity.

Frequently Asked Questions

Q1: Which phones are supported?
A: The App supports iOS 12+ and Android 8+ via Bluetooth 5.0.

Q2: Can I monitor multiple batteries?
A: Yes, the App supports up to 4 batteries with individual monitoring.

Q3: Does Bluetooth drain the battery?
A: Negligible - less than 0.1% of capacity per day in standby mode.

Q4: What is the warranty?
A: 3-year comprehensive warranty.

Contact us today for a quotation and technical consultation for your smart RV power system.
