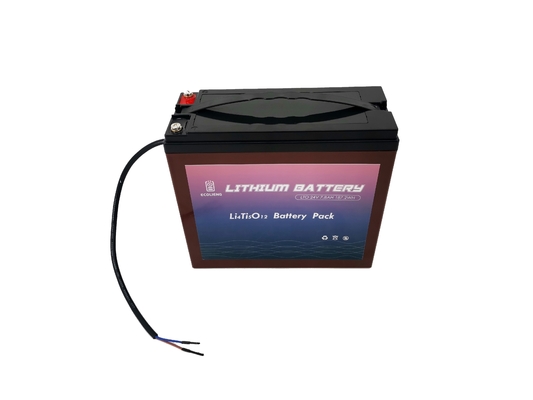

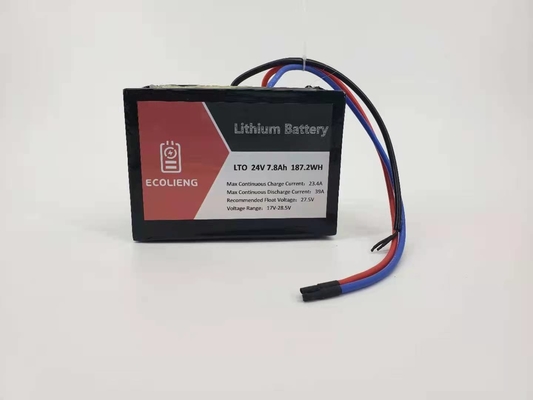

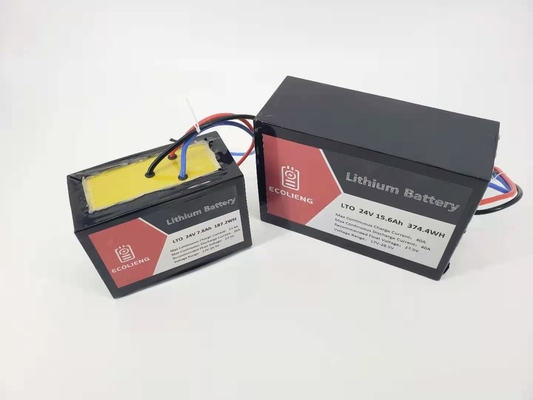

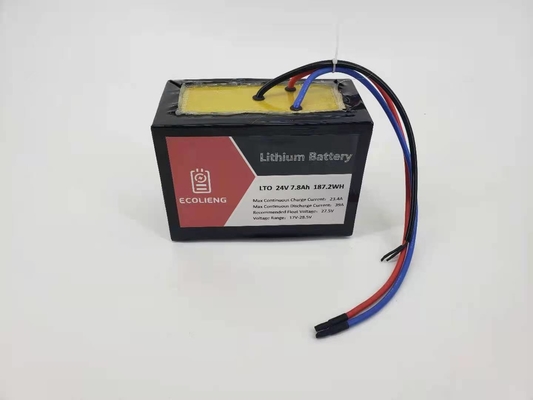

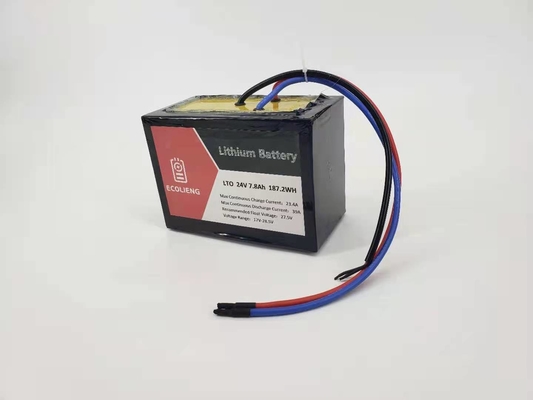

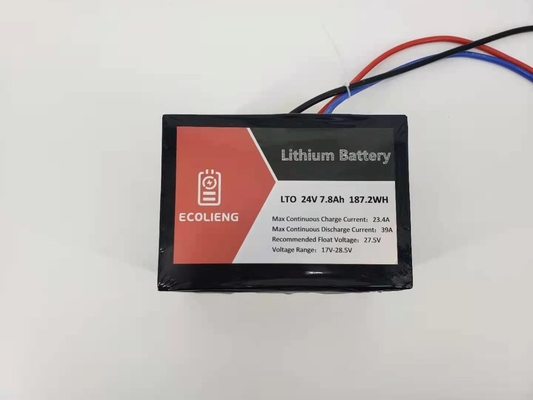

LTO 24V7.8Ah Lithium Titanate Battery Pack For Solar Tracker/Medical Instrument/Street LED Lamp/Electric Door
LTO batteries: properties and usage
LTO batteries are lithium titanate (Li2TiO3) or li-titanate batteries.They are high power batteries, so they are perfect for use in the fast charging stations. Lithium titanate battery by the authority of the third party test found that in the needle, extrusion, short circuit and other stringent tests, no smoke, no fire, no explosion.
LTO batteries applications

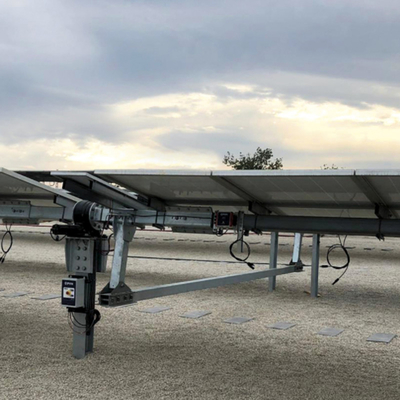

They use it in different applications like Solar tracker, 24V power tools, electric equipment,24V instrument,24V LED lamp, Solar energy storage, Electric door, Medical instrument,Surveillance camera,UPS, Electrical power trains, Solar powered street lights, Fast charge stations.
Play for any application that currently uses AGM, GEL ,lead-acid or LiFePo4 Battery.
The main advantages of the LTO batteries
Lithium titanate battery is the most safe and stable lithium battery, also the longest life of the battery.
According to the test data, the capacity of lithium titanate battery attenuates very slowly, and the number of complete charge-discharge cycles can reach more than 10,000 times, achieving a 10-year cycle service life, while the average cycle service life of ordinary batteries is 2,000 times.
In the case of batteries, they must also be adaptable to a wide range of operating environments.
The lithium titanate battery has the ability to charge and discharge at minus 40℃ to above 60℃, which means that no matter in the north or south, in winter or in summer, the equipment will not be affected work by the battery "shock" .
Lithium titanate battery can be charged and discharged quickly, which not only greatly reduces the charging time, but also has little effect on the cycle life and strong thermal stability.
Although the single cost of lithium titanate battery is higher than the cost of lithium iron phosphate battery, but in the long run, the life of lithium titanate battery is 5-6 times the life of lithium iron phosphate battery, do not need to replace the battery frequently, the cost of operation and maintenance is lower, and the difficulty of battery recycling processing is small.
Product specification
Lithium Titanate(LTO) ECOLTO2407(24V7.8Ah)
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
24V |
Dimension(L×W×H) |
223x95x175mm |
| Rated Capacity |
7.8Ah |
8.78x3.74x6.89" |
| Energy |
187.2Wh |
Weight |
3.5kg |
| Resistance |
≤ 20mΩ |
Terminal Type |
M5 |
| Efficiency |
0.99 |
Battery Housing |
ABS |
| Cycle Life |
>20000cycles @1C,80% DOD |
Housing Protection |
IP54 |
| Self Discharge |
2% per Month |
Cell Type-Chemistry |
LTO Cell |
| Max. Modules in Series/Parallel |
6P/10S |
SOC Display(Optional) |
RS485,Brown-485A,Blue-485B |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
39A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
280A (<0.01S) |
Charge Voltage |
24V-28.5V |
| Recommended Volt. Disconnect |
15V |
Recommended Float Voltage |
28.5V |
| BMS Discharge Cut-off Voltage |
17V |
Recommended Charge Current |
7.8A |
| Reconnect Voltage |
18V |
Maximum Charge Current |
23.4A |
| Short Circuit Protection |
500-1000us |
BMS Charge Cut-off Voltage |
28.5V |
| Temperature Parameters |
|
|
| Discharge Temperature |
-40 to 60 ℃ |
|
|
| Charge Temperature |
-40 to 60 ℃ |
|
|
| Storage Temperature |
0 to 45℃ |
|
|
| BMS High Temperature Cut-off |
70 ℃
|
