Intelligent BMS Battery Management System Lithium Battery LifePO4 12V Protection Board

Name: Intelligent BMS Battery Management System Lithium Battery LifePO4 12V Protection Board
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: YKN-BMS4S
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Model Number: YKN-BMS4S

Payment & Shipping Terms

Minimum Order Quantity: 100 Units

Price: Inquiry

Packaging Details: Carton Container

Delivery Time: 1-2 months

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Intelligent Battery Management System, Lithium Battery Management System, Intelligent BMS 12V


Cell Specifications:	4 Series Of Lithium Iron Phosphate Cells	Interface Type:	Charge And Discharge Are Both At The Same Port
Charge Voltage:	14.6V	Voltage Range:	9.6~15V
Continuous Charging Current:	≤150A	Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA	Consumption Of Sleep:	≤300uA
Operation Temperature:	-30℃~75℃	Size (LWH):	160mm95mm25mm

Cell Specifications:	4 Series Of Lithium Iron Phosphate Cells
Interface Type:	Charge And Discharge Are Both At The Same Port
Charge Voltage:	14.6V
Voltage Range:	9.6~15V
Continuous Charging Current:	≤150A
Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA
Consumption Of Sleep:	≤300uA
Operation Temperature:	-30℃~75℃
Size (LWH):	160mm95mm25mm

Description

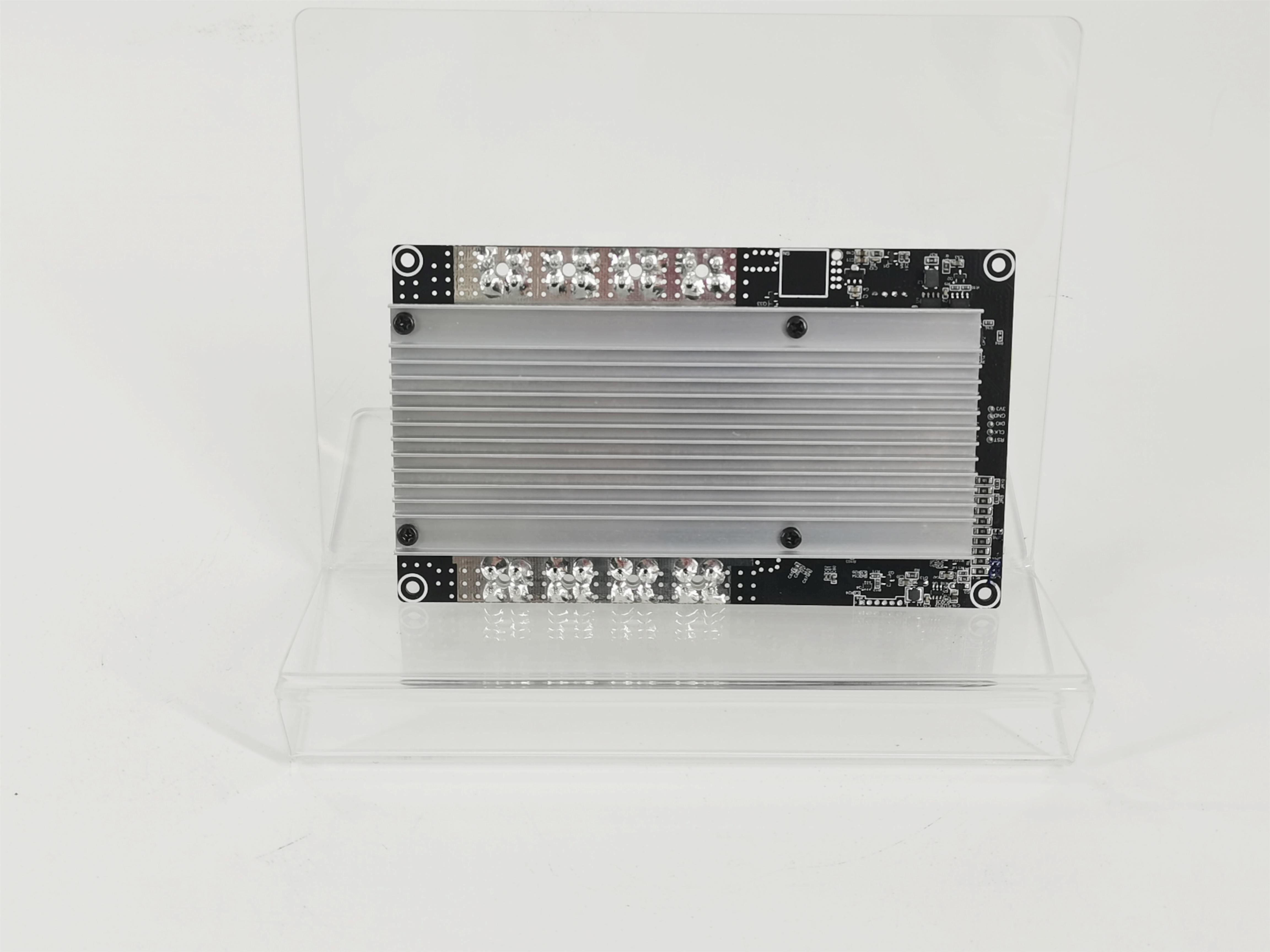

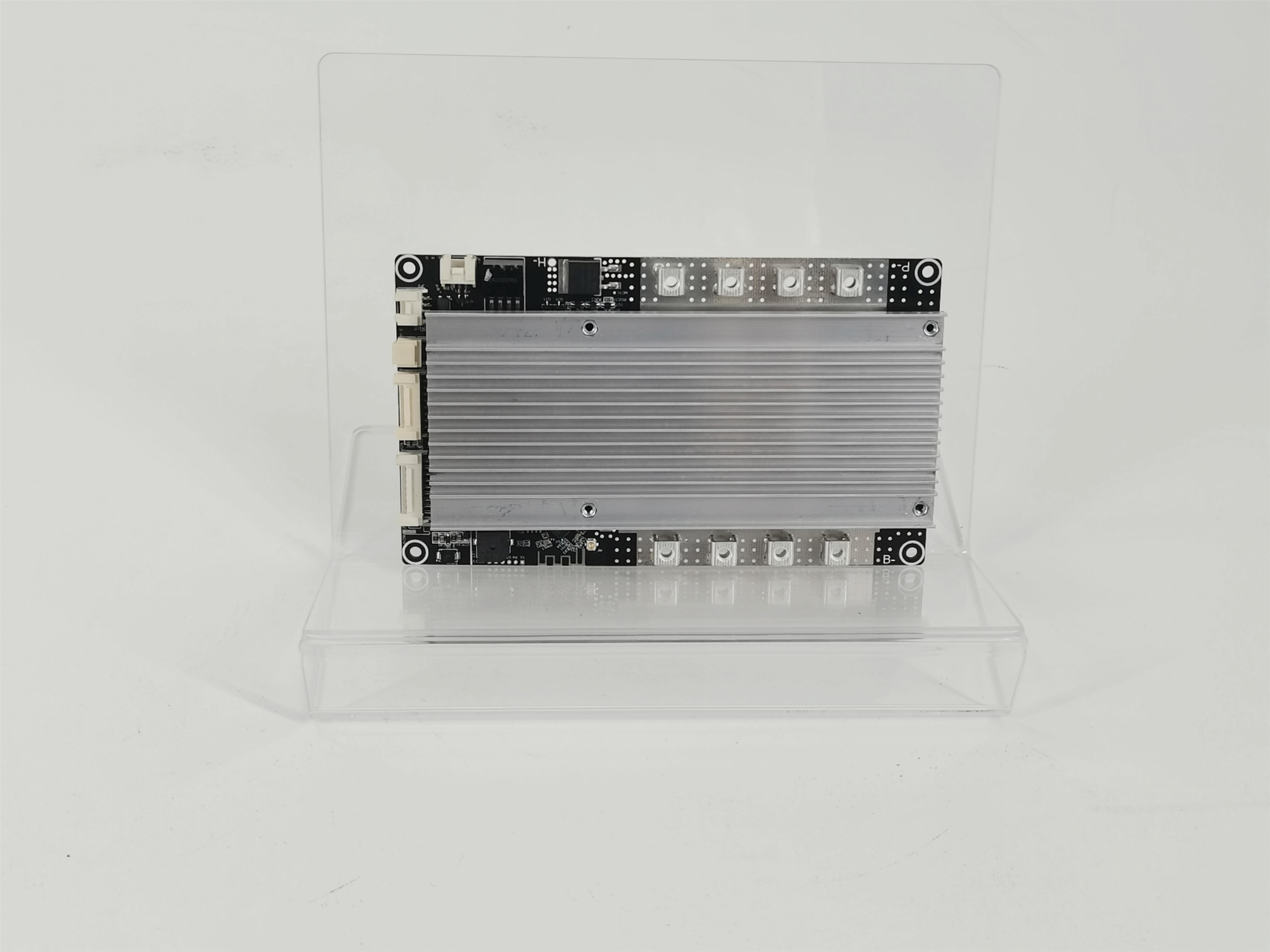

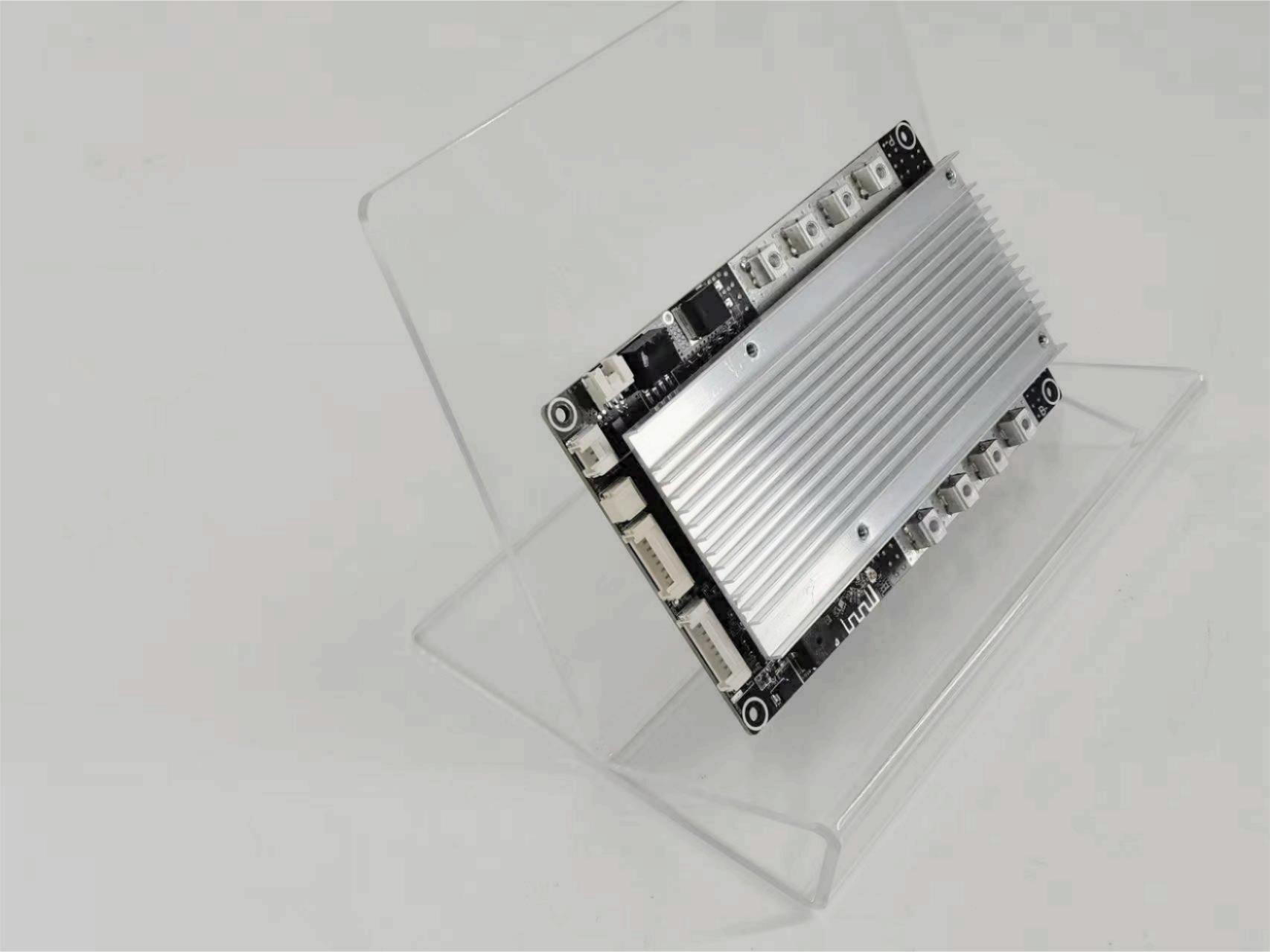

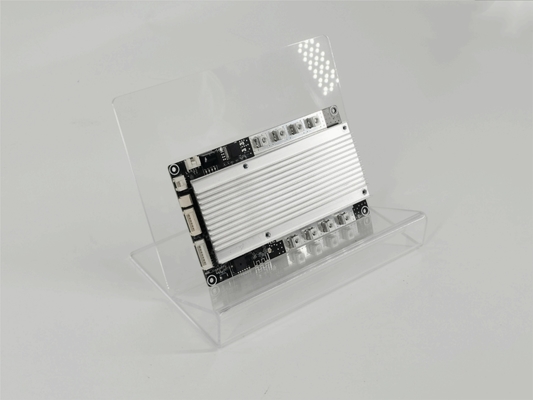

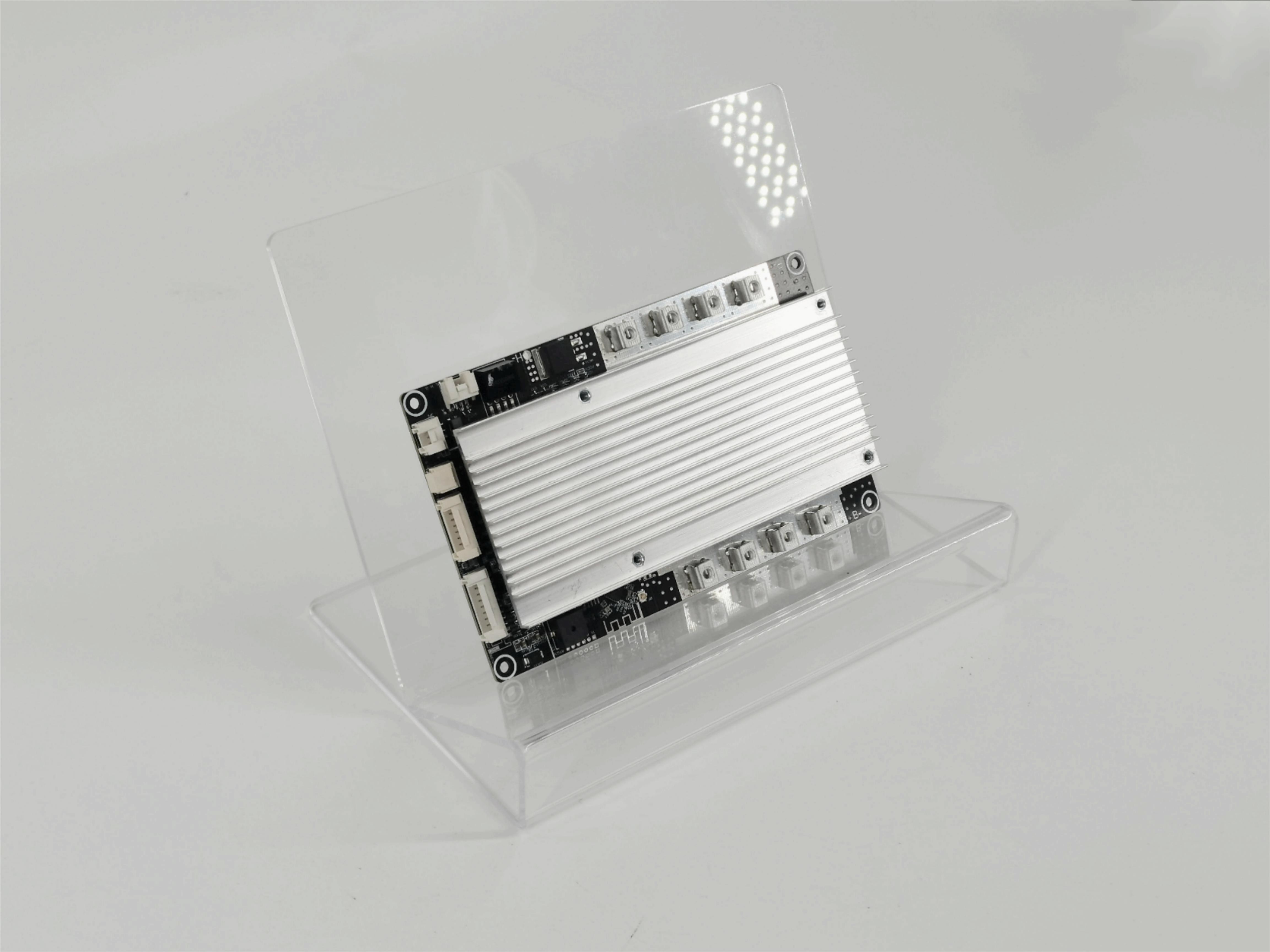

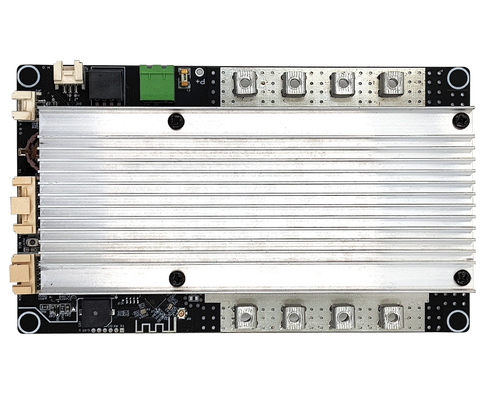

Intelligent BMS Battery Management System Lithium Battery LifePO4 12V Protection Board

Intelligent YKN-BMS4S BMS(Battery Management System) Lithium battery LifePO4 12V 4series Battery Packs protection board

Features
YKN-BMS4S is a protection board designed anddeveloped for 4-series battery packs, suitable forsmall energy storage batteries, street lights, 12V lithium batteries, and otherproducts; The product adopts an integrated intelli-gent lithium battery management chip, supporting RS485,CAN, and Bluetooth communication.Someparameters can be flexibly adjusted through theupper computer according to customer needs.

Function
Supports 4 series of lithium iron phosphate battery packs.
Integrate hardware protection functions, such as overvoltage, low voltage, overcurent, high temperature, low temperature, shor
Circuit protection,etc:Inteligent balancing function: it can set the starting voltage and starting voltage diference for balancing, and can choose
between charging balancing or static balancing;
Supports 4-way battery cell temperature detection and 1-way power temperature detection;
Supports communication such as Bluetooth,RS485, CAN, etc;
Reserve heating and buzzer functionsLow power consumption: When the BlMS is in a stationary state, it can enter a sleep state to reduce power consumptionBMS supports series and parallel connection of battery packs.

Specification

Products	Technical parameters
YKN-BMS4S(Bluetooth)	Basic parameters
	Cell specifications	4 series of lithium iron phosphate cells
	Interface type	Charge and discharge are both at the same port
	Charging Voltage	14.6V
	Cell voltage range	9.6~15V
	Continuous charging current	≤150A
	Continuous discharge current	≤150A
	Consumption of running	≤25mA
	Consumption of sleep	≤300uA
	Operating temperature	-30℃~75℃
	Size (LWH)	160mm95mm25mm
