ECOLTO Intelligent Battery Management System YKN-BMS16S 100A / 200A

Name: ECOLTO Intelligent Battery Management System YKN-BMS16S 100A / 200A
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: YKN BMS16S100A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: YKN BMS16S100A

Payment & Shipping Terms

Minimum Order Quantity: 1000UNITS

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      OEM Battery Management System, Battery Management System 200A


Supports Serial Number:	8S~16S	Support Ontinuous Current:	100A
NTC Quantity:	2 Channels Built-in 4 Channels External	Equalization Function:	Passive Equalization
Switch Function:	Standard	Charging Current Limiting Function Standard:	Standard
Battery Packs Used In Parallel:	Support	Data Storage Function:	Standard
Pre-discharge Function:	Standard	485 Communication (lsolation):	Standard
CAN Communication:	Standard	232 Communication:	Standard
Heating Film Interface:	Support	LCD Display:	Optional

Supports Serial Number:	8S~16S
Support Ontinuous Current:	100A
NTC Quantity:	2 Channels Built-in 4 Channels External
Equalization Function:	Passive Equalization
Switch Function:	Standard
Charging Current Limiting Function Standard:	Standard
Battery Packs Used In Parallel:	Support
Data Storage Function:	Standard
Pre-discharge Function:	Standard
485 Communication (lsolation):	Standard
CAN Communication:	Standard
232 Communication:	Standard
Heating Film Interface:	Support
LCD Display:	Optional

Description

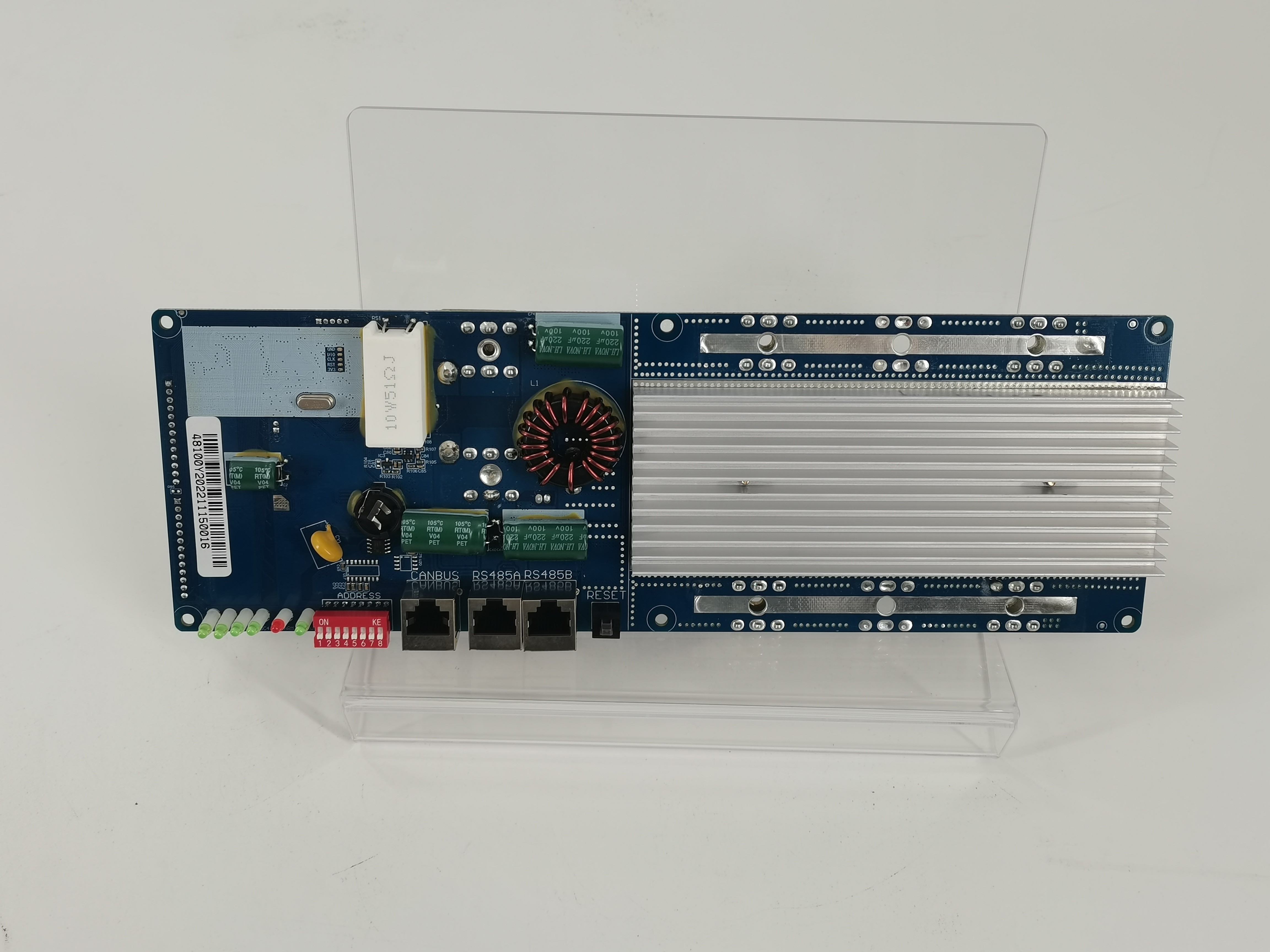

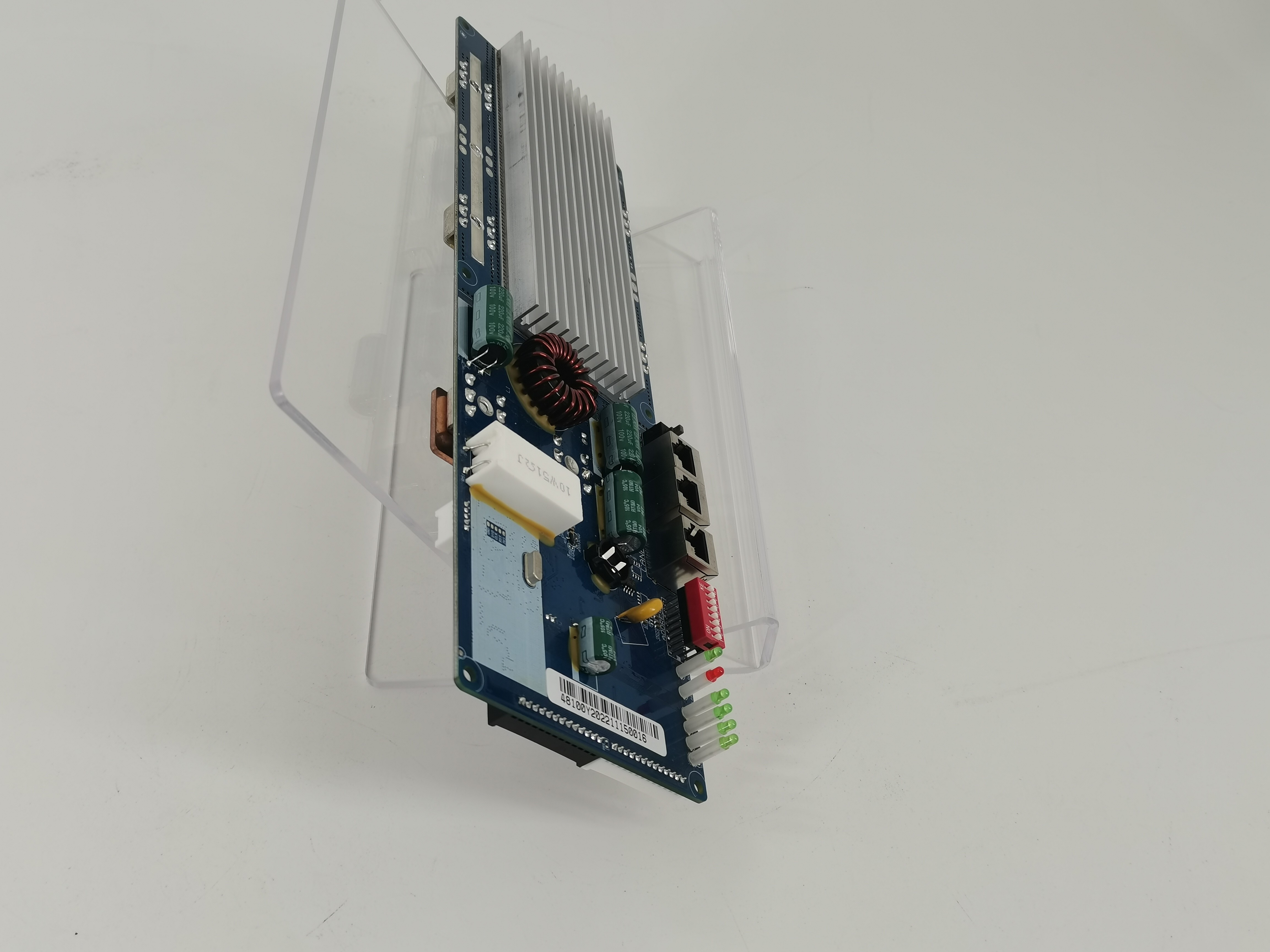

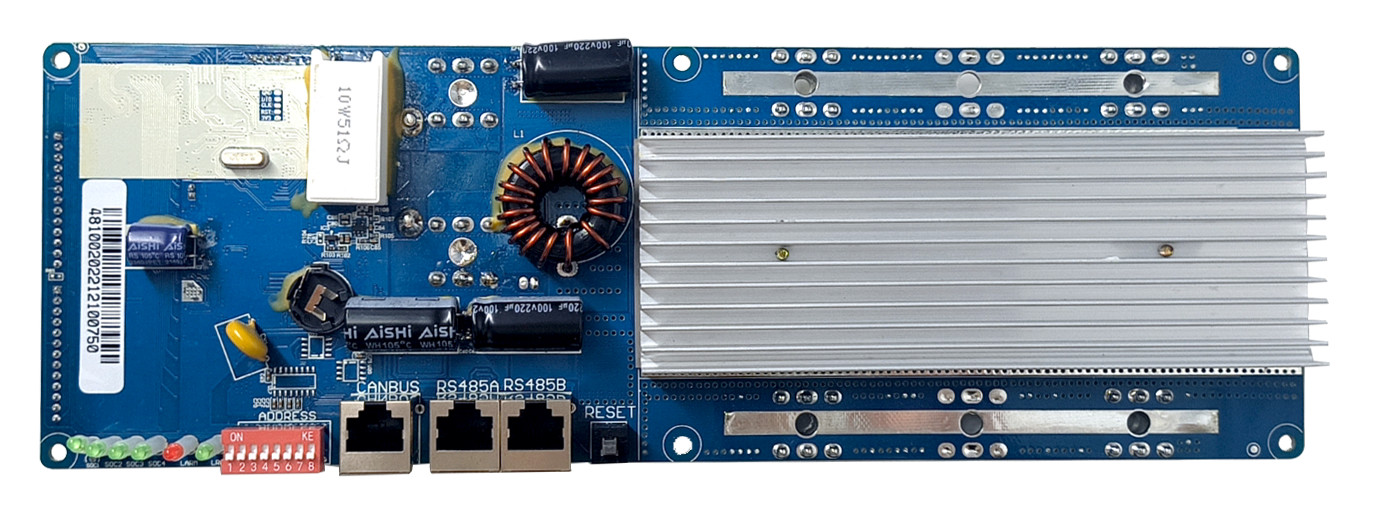

ECOLTO Intelligent Battery Management System YKN-BMS16S 100A / 200A

Intelligent YKN-BMS16S100A/200A (Battery Management System)

FEATURES:
This product is a BMS designed specifically forhousehold energy storage lithium iron/ternary powersupply,supporting 8-16 series battery cells.lt adoptsan integrated and modular design, integrating batterydata collection,management, communication andother functions into one. The product is equippedwith voltage acquisition, current acquisition, tem-perature acquisition, and various protection mecha-nisms.lt also provides intelligent charging balance,battery estimation, serial communication interface,LED display, and optional functions such as datastorage,charging current limiting, intelligent heatingfilm control, LCD display, etc.

Products	Function configuration
BMS16S100A-X	Function	Configuration	Function	Configuration
Battery packs used in parallel	Supports serial number	8S~16S	Pre-discharge function	Standard
	Support ontinuous current	100A	485 Communication (lsolation)	Standard
	NTC Quantity	2 channels built-in 4 channels external	CAN Communication	Standard
	Equalization function	Passive equalization	232 Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function Standard	Standard	LCD display	Optional
	Battery packs used in parallel	Support	LED indicator interface	Standard
	Data storage function	Standard

Products	Function confiquration
BMS16S100A-Y	Function	Configuration	Function	Configuration
Battery packs used in parallel	Supports serial number	8S~16S	Data storage function	Standard
	Support ontinuous current	100A	Pre-discharge function	Standard
	NTC Quantity	2 channels built-in 4 channels external	485 Communication	Standard
	Equalization function	Passive equalization	CAN Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function	Standard	LCD display	Optional
	Battery packs used in parallel	Support	LED indicator interface	Support

Products	Function configuration
BMS16S200A	Function	Configuration	Function	Configuration
350x110x29.5mm	Supports serial number	8S~16S	Data storage function	Standard
	Support ontinuous current	200A	Pre-discharge function	Standard
	NTC Quantity	2 channels built-in 4 channels external	485 Communication	Standard
	Equalization function	Passive equalization	CAN Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function	Standard	Display	Support 7-inchCOF Screen
	Battery packs used in parallel	Support	LED indicator interface	Reserved interface
