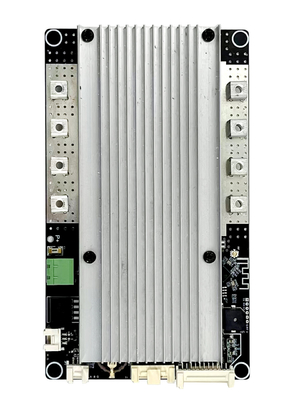

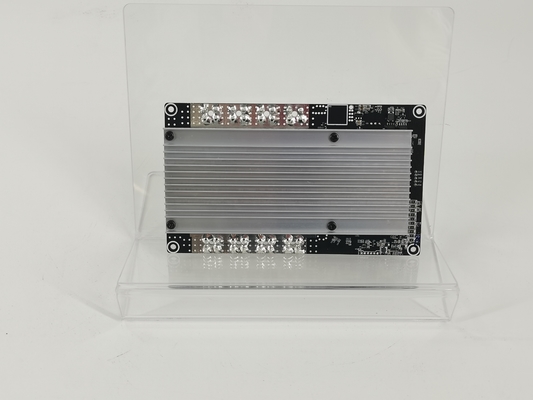

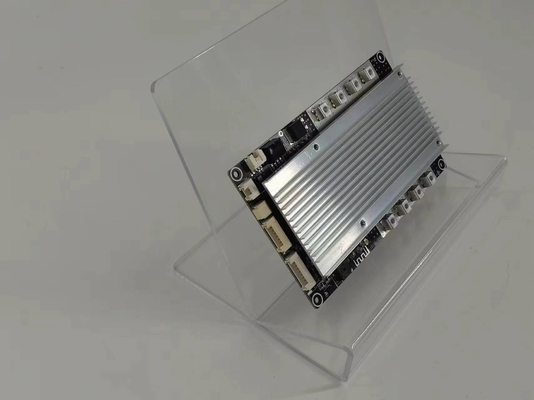

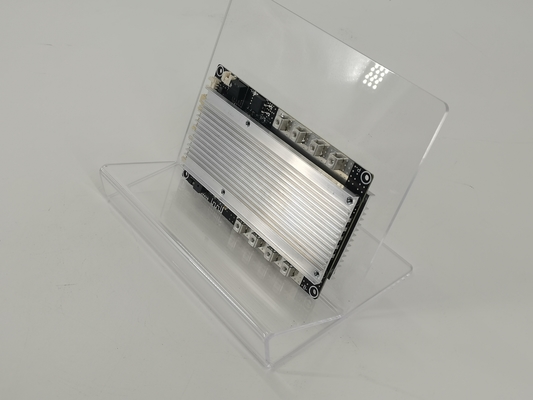

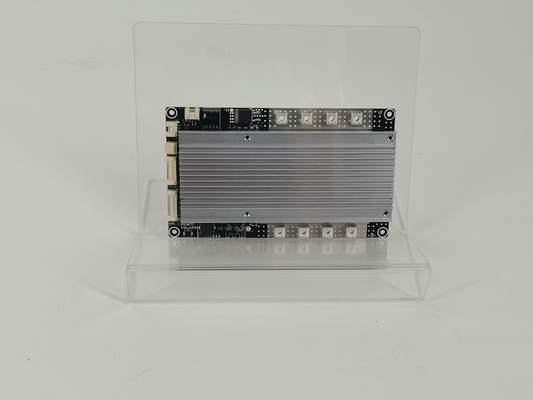

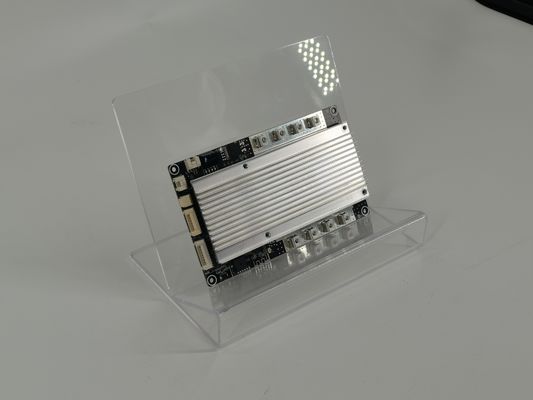

YKN-BMS8S Intelligent Battery Management System BMS For Small Energy Storage Batteries

Name: YKN-BMS8S Intelligent Battery Management System BMS For Small Energy Storage Batteries
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: YKN-BMS8S
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: YKN-BMS8S

Payment & Shipping Terms

Minimum Order Quantity: 100 Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Battery Management System BMS, Energy Storage Battery Management System


Cell Specifications:	8 Series Of Lithium Iron Phosphate Cells	Interface Type:	Charge And Discharge Are Both At The Same Port
Charging Voltage:	29.2V	Cell Voltage Range:	19.2~30V
Continuous Charging Current:	≤150A	Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA	Consumption Of Sleep:	≤300uA
Operating Temperature:	-30℃~75℃	Size(LWH):	160mm95mm25mm

Cell Specifications:	8 Series Of Lithium Iron Phosphate Cells
Interface Type:	Charge And Discharge Are Both At The Same Port
Charging Voltage:	29.2V
Cell Voltage Range:	19.2~30V
Continuous Charging Current:	≤150A
Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA
Consumption Of Sleep:	≤300uA
Operating Temperature:	-30℃~75℃
Size(LWH):	160mm95mm25mm

Description

YKN-BMS8S Intelligent Battery Management System BMS For Small Energy Storage Batteries

Intelligent YKN-BMS8S BMS(Battery Management System)

FEATURES:
YKN-BMS8S is a protection board designed and developed for 8-series battery packs, suitable for small energy storage batteries, street lights, 24Vlead-acid lithium swappable batteries, and other products;The product adopts an integrated intelli-gent lithium battery management chip, supportingS485,CAN, and Bluetooth communication. Some parameters can be flexibly adjusted through the upper computer according to customer needs.

Functional features:
Supports 8 series of lithium iron phosphate battery packs
Integrate hardware protection functions, such as overvoltage, low voltage, overcurrent, high temperature, low temperature, short circuit protection,etc;
Intelligent balancing function: lt can set the starting voltage and starting voltage difference for balancing, and can choose
between charging balancing or static balancing;
Supports 4-way battery cell temperature detection and 1-way power temperature detection;
Supports communication such as Bluetooth,RS485. CAN. etc;
Reserve heating and buzzer functions
Low power consumption: When the BMS is in a stationary state, it can enter a sleep state to reduce power consumption.
BMS supports series and parallel connection of battery packs.

Products	Technical parameters
YKN-BMS8S(Bluetooth)	Basic parameters
	Cell specifications	8 series of lithium iron phosphate cells
	Interface type	Charge and discharge are both at the same port
	Charging Voltage	29.2V
	Cell voltage range	19.2~30V
	Continuous charging current	≤150A
	Continuous discharge current	≤150A
	Consumption of running	≤25mA
	Consumption of sleep	≤300uA
	Operating temperature	-30℃~75℃
	Size(LWH)	160mm95mm25mm

Function configuration
Function	Configuration	Function	Configuration
Supports serial number	8S~10S	Pre-discharge function	Standard
Support ontinuous curent	150A	485 Communication (lsolation)	Standard
NTC Quantity	1 channels built-in. 4 channels external	CAN Communication	Standard
Equalization function	Passive equalization	UART Communication	Optional
Battery packs used in parallel	Support	Heating film interface	Support
Data storage function	Standard	BLE/WVIFI	Optional
Buzzer alarm	Optional
