Name: 60.8V 80Ah Electric Vehicle Lithium Battery Li Ion Cell LiFePo4 Battery Pack For Three Wheeler
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 60.8V 80Ah
Availability: InStock

60.8V 80Ah Electric Vehicle Lithium Battery Li Ion Cell LiFePo4 Battery Pack For Three Wheeler

1000pcs

MOQ

Inquiry

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Nominal Voltage: 60.8V

Rated Capacity: 80Ah

Energy: 4864Wh

Resistance: ≤33mΩ

Efficiency: 0.99

Cycle Life: >1500cycles @25℃,1C

Self Discharge: 2% Per Month

Max.ModulesinSeries/Parallel: 4P/19S

Highlight:

80Ah Electric Vehicle Lithium Battery

60.8V Electric Vehicle Lithium Battery

Three Wheeler EV LiFePo4 Battery Pack

Basic Infomation

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 60.8V 80Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Gallery

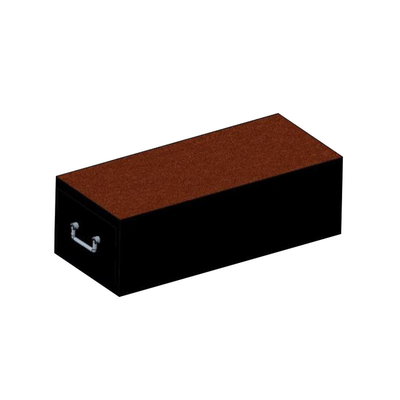

60.8V 80Ah Electric Vehicle Lithium Battery Li Ion Cell LiFePo4 Battery Pack For Three Wheeler

Product Description

Ecolite Free Maintenance Li-Ion Cell LiFePo4 Battery Pack 60.8v 80Ah For Three Wheeler Lithium Electric Vehicle Battery

60.8V 80Ah Electric Vehicle Lithium Battery Li Ion Cell LiFePo4 Battery Pack For Three Wheeler 0

Electrical Parameters		Mechanical Parameters
Nominal Voltage	60.8V	Dimension(LxWxH)	402x290x186mm
Rated Capacity	80Ah	Dimension(LxWxH)	15.8x11.4x7.3
Energy	4864Wh	Weight	35kg
Resistance	≤33mΩ	Terminal Type	optional
Efficiency	0.99	Battery Housing	Metal
Cycle Life	>1500cycles @25℃,1C	Housing Protection	IP56
Self Discharge	2% per Month	CellType-Chemistry	LiFePO4Cell
Max.MModules in Series/Parallel	4P/19S	Soc Display(optional)	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	50A	Charge Method	CC-CV
Maximum Discharge Current	100A	Charge Voltage	69-71V
Recommended Volt. Disconnect	47.5V	Recommended Float Voltage	69V
BMS Discharge Cut.offVoitage	47.5V	Recommended Charge Current	50A
Reconnect Voltage	54V	Maximum Charge Current	100A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Voltage	72V

Temperature Parameters
Discharge Temperature		-30 to 60 ℃ (-22 to 140°F)
Charge Temperature		0 to 60 ℃ (32 to 140°F)
Storage Temperature		-20 to 45℃ (-4 to 113°F)
BMS High Temperature Cut-off		78 ℃(172.4°F)

60.8V 80Ah Electric Vehicle Lithium Battery Li Ion Cell LiFePo4 Battery Pack For Three Wheeler 2

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
