Home /Products/Solar Tracker Battery/ECOLTO-T2407 LTO Battery Pack 24V 7.8Ah Lithium Titanate LTO Battery

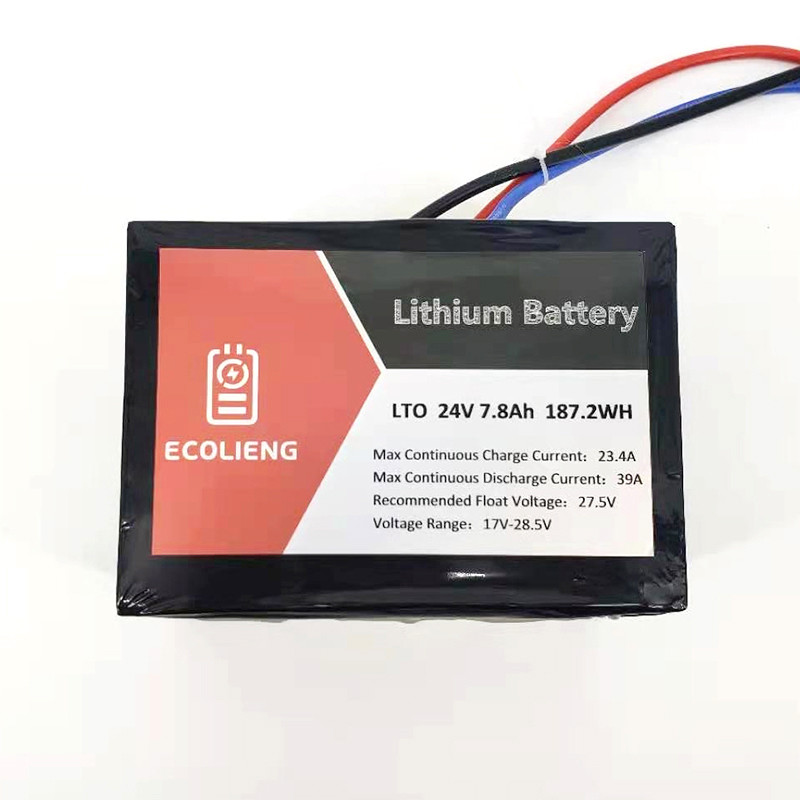

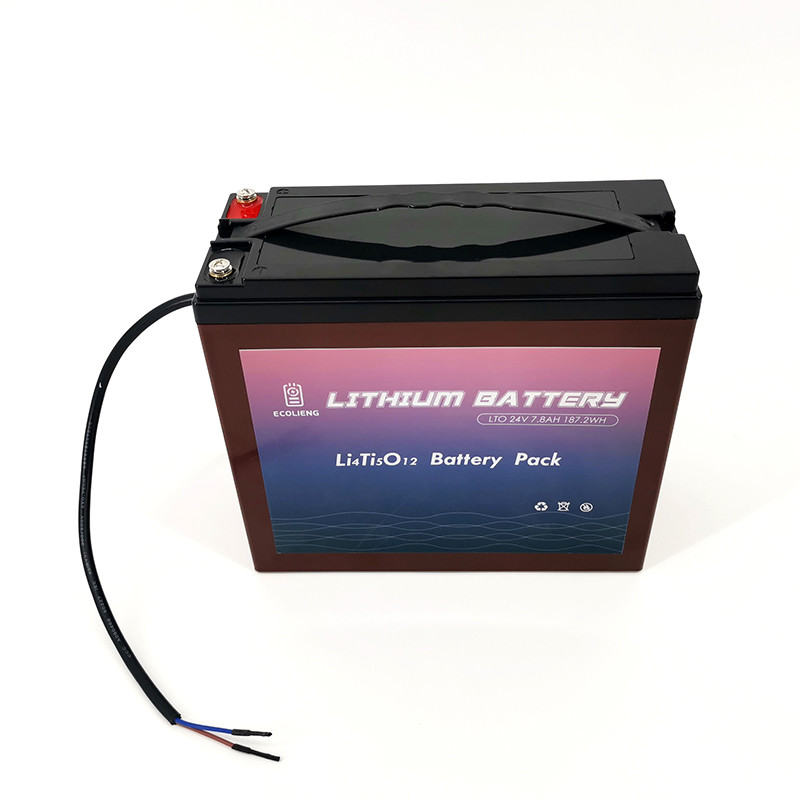

ECOLTO-T2407 LTO Battery Pack 24V 7.8Ah Lithium Titanate LTO Battery

2000pcs
MOQ
Inquiry
Price
ECOLTO-T2407 LTO Battery Pack 24V 7.8Ah Lithium Titanate LTO Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 24V
Rated Capacity: 7.8Ah
Energy: 187.2Wh
Resistance: ≤ 20mΩ
Efficiency: 0.99
Cycle Life: >20000cycles @1C,80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 6P/10S
Weight: 3.5kg
Terminal Type: M5
Battery Housing: ABS
Housing Protection: IP54
Cell Type-Chemistry: LTO Cell
SOC Display(Optional): RS485,Brown-485A,Blue-485B
Highlight:

LTO Battery Pack 24V

,

LTO Battery Pack 7.8Ah

,

24V Lithium Titanate LTO Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: ECOLTO-T2407
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 6-8 work days
Payment Terms: L/C, T/T
Supply Ability: 6000 units/month
Product Description

ECOLTO-T2407 LTO Battery Pack

information
Start a Free Product Chat



ECOLTO-T2407
Lithium titanate battery
1) Quick Details
Lithium Titanate(LTO)24V7.8Ah
2) Features
The cell adopts lithium titanate technology.A wide range of temperature, rapid charging, stability and high output,free Maintenance. Long Cycle Life >20000cycles @1C,80% DOD.
Divided into plastic case version and simple version. Plastic case (ABS)is suitable for mobile power supply,Terminal Type M5.Simple version (PVC)is more suitable to put into the battery compartment of the device,It's more compact in design.
3) Application

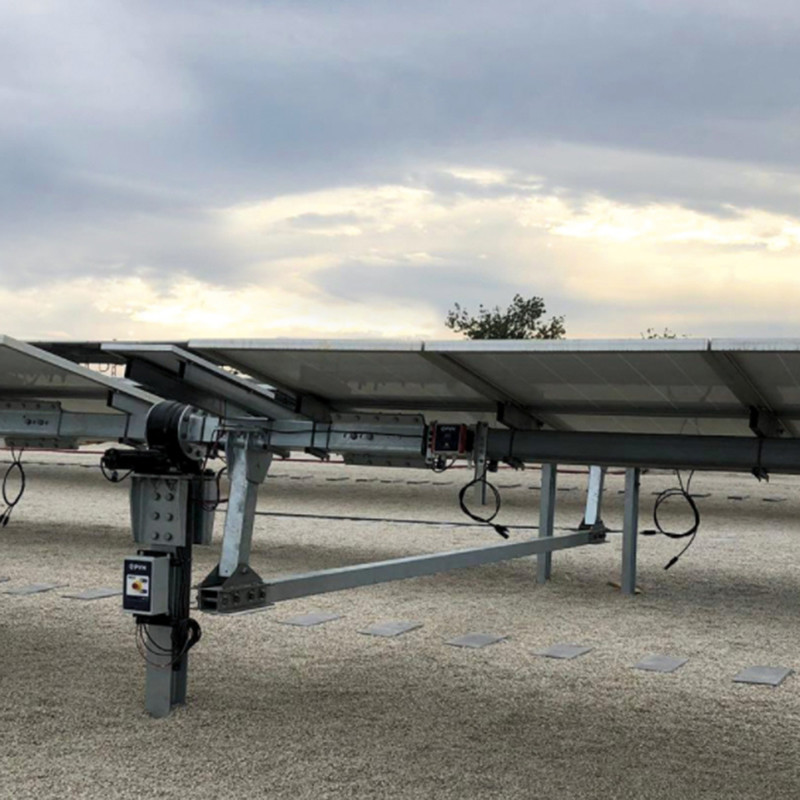

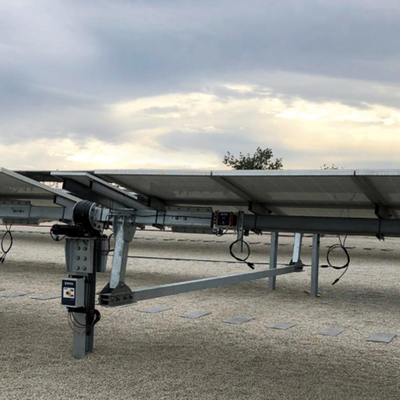

Solar tracker, 24V power tools, electric equipment

Product Parameter
Start a Free Product Chat

ECOLTO-T2407 LTO Battery Pack 24V 7.8Ah Lithium Titanate LTO Battery 0

Electrical Parameters Mechanical Parameters
Nominal Voltage 24V Dimension(L×W×H) 223x95x175mm
Rated Capacity 7.8Ah 8.78x3.74x6.89"
Energy 187.2Wh Weight 3.5kg
Resistance ≤ 20mΩ Terminal Type M5
Efficiency 0.99 Battery Housing ABS
Cycle Life >20000cycles @1C,80% DOD Housing Protection IP54
Self Discharge 2% per Month Cell Type-Chemistry LTO Cell
Max. Modules in Series/Parallel 6P/10S SOC Display(Optional) RS485,Brown-485A,Blue-485B
Discharge Parameters Charge Parameters
Continuous Discharge Current 39A Charge Method CC-CV
Pulse Discharge Current 280A (<0.01S) Charge Voltage 24V-28.5V
Recommended Volt. Disconnect 15V Recommended Float Voltage 28.5V
BMS Discharge Cut-off Voltage 17V Recommended Charge Current 7.8A
Reconnect Voltage 18V Maximum Charge Current 23.4A
Short Circuit Protection 500-1000us BMS Charge Cut-off Voltage 28.5V
Temperature Parameters
Discharge Temperature -40 to 60 ℃
Charge Temperature -40 to 60 ℃
Storage Temperature 0 to 45℃
BMS High Temperature Cut-off 70 ℃

BATTERY DATA SHEET





Tag:

24V LTO Battery Pack

Solar Tracker LTO Battery Pack

7.8Ah LTO Battery Pack
