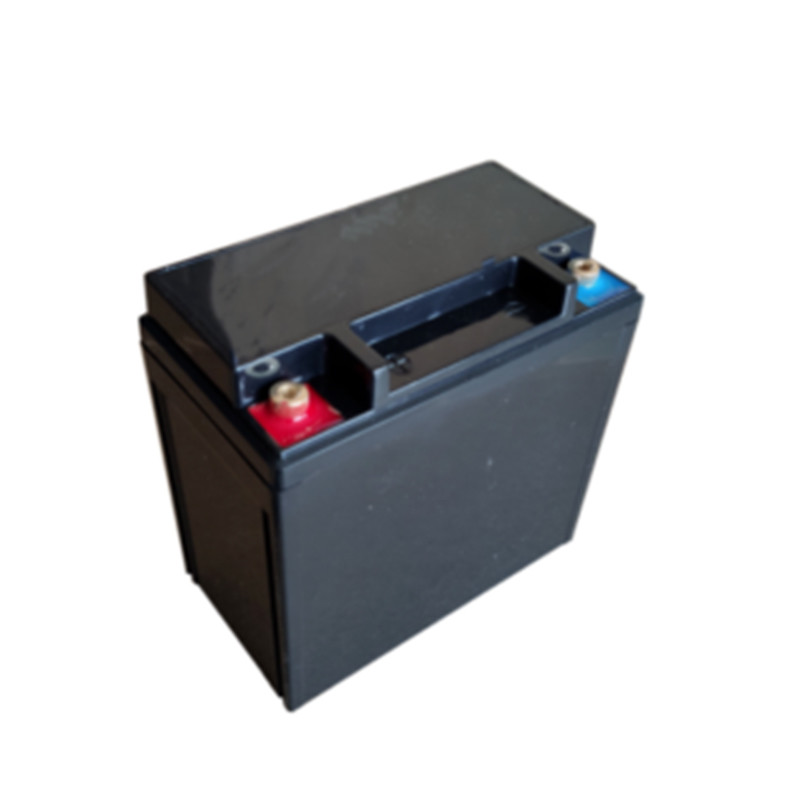

12.8V 6.6Ah LFP Electric Vehicle Lithium Battery For Golf Car

Name: 12.8V 6.6Ah LFP Electric Vehicle Lithium Battery For Golf Car
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12.8V 6.6Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12.8V 6.6Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              LFP Electric Vehicle Lithium Battery, 6.6Ah Electric Vehicle Lithium Battery, 12.8V Golf Car Lithium Battery


Nominal Voltage:	12.8V	Rated Capacity:	6.6Ah
Energy:	84.5 Wh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4S/3P

Nominal Voltage:	12.8V
Rated Capacity:	6.6Ah
Energy:	84.5 Wh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4S/3P

Description

12.8V 6.6Ah LFP Electric Vehicle Lithium Battery For Golf Car

Ecolite 12.8V 6.6Ah LFP Lithium Golf Cart Battery Pack

Golf car batteries, Golf Cart 12V Batteries, Best Golf Cart Batteries 2022 Reviews & Buying Guide, eco battery 48v 72ah

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	6.6Ah
Energy	84.5 Wh
Resistance	≤2.5mΩ
Efficiency	0.99
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/3P
Mechanical Parameters
Dimension(L×W×H)	1498593mm
Dimension(L×W×H)	5.873.353.66"
Weight	1kg
Terminal Type
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/
Discharge Parameters
Continuous Discharge Current	6.6A
Cold Cranking Ampere	380CCA
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	14.5V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.4V
Recommended Float Voltage	13.4V
Recommended Charge Current	6.6A
Maximum Charge Current	26.4A
BMS Charge Cut-off Voltage	14.4V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
