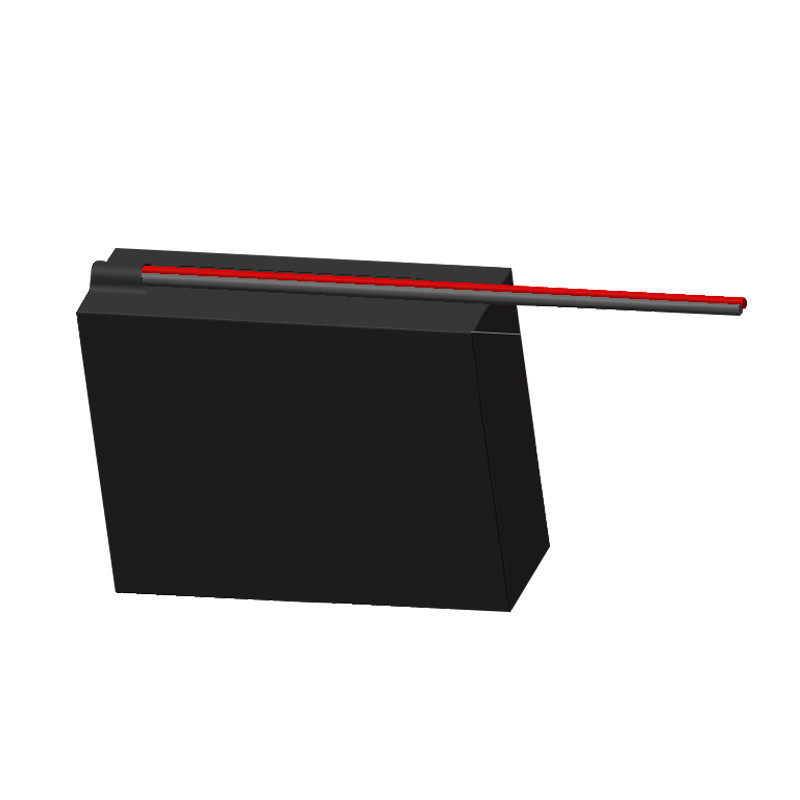

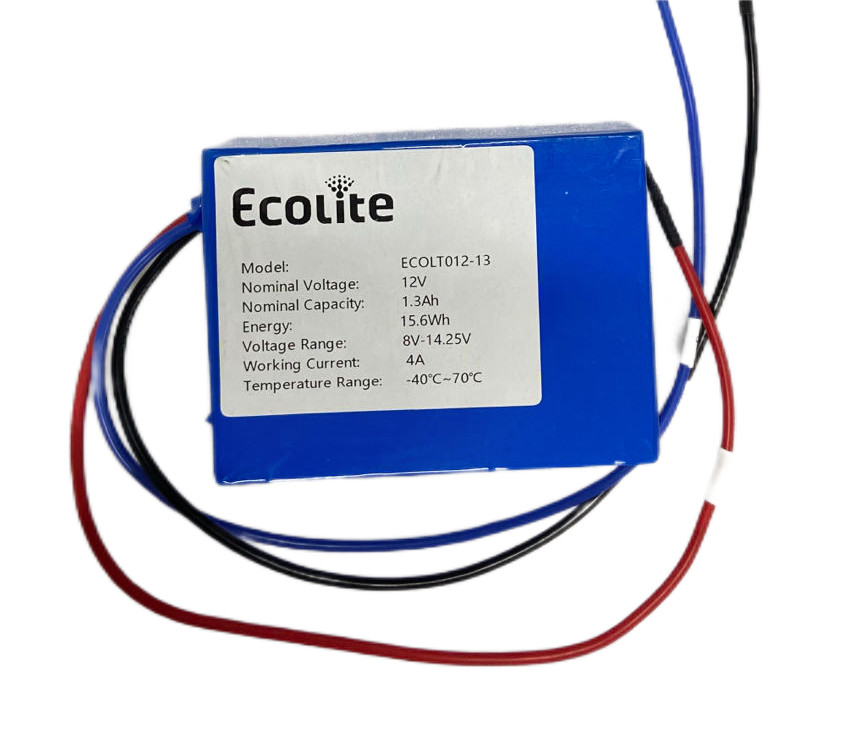

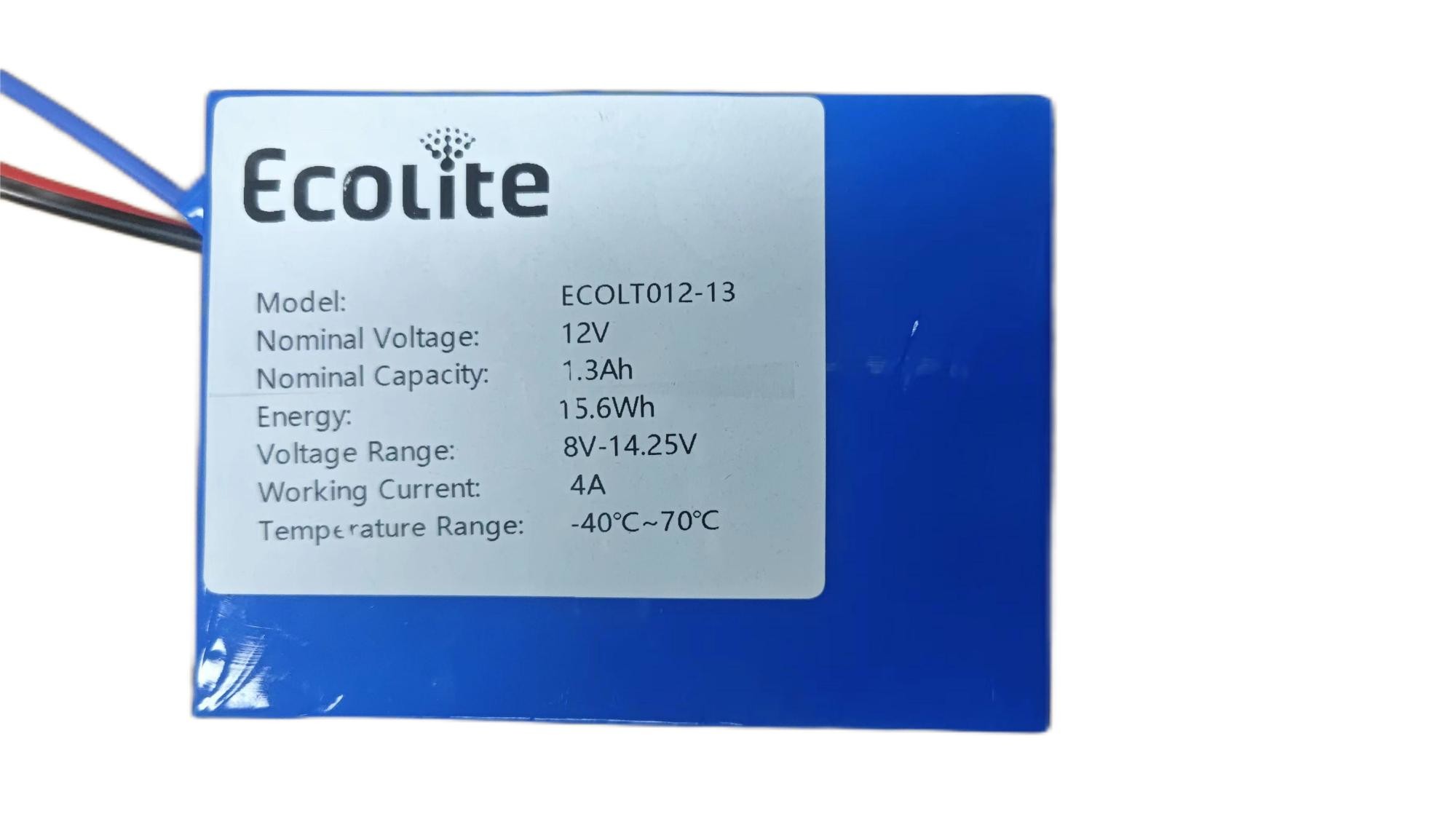

Customizable LTO Battery Pack 12V 1.3Ah Long Cycle Lithium Titanate LTO Batteries

Name: Customizable LTO Battery Pack 12V 1.3Ah Long Cycle Lithium Titanate LTO Batteries
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LTO12V1.3Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS UL

Model Number: LTO12V1.3Ah

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1 months

Payment Terms: T/T, L/C

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Customizable LTO Battery Pack, LTO Battery Pack Long Cycle, 12V Lithium Titanate LTO Batteries


Nominal Voltage:	12V	Rated Capacity:	1.3Ah
Energy:	15.6Wh	Resistance:	≤12mΩ
Efficiency:	0.99	Cycle Life:	>22000cycles @3C 20% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	1P/5S
Continuous Discharge Current:	4A	Pulse Discharge Current:	7A(<100S)
Recommended Volt. Disconnect:	7.5V	BMS Discharge Cut-off Voltage:	8V
Reconnect Voltage:	10V	Short Circuit Protection:	200-500us

Nominal Voltage:	12V
Rated Capacity:	1.3Ah
Energy:	15.6Wh
Resistance:	≤12mΩ
Efficiency:	0.99
Cycle Life:	>22000cycles @3C 20% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	1P/5S
Continuous Discharge Current:	4A
Pulse Discharge Current:	7A(<100S)
Recommended Volt. Disconnect:	7.5V
BMS Discharge Cut-off Voltage:	8V
Reconnect Voltage:	10V
Short Circuit Protection:	200-500us

Description

Customizable LTO Battery Pack 12V 1.3Ah Long Cycle Lithium Titanate LTO Batteries

Lithium Titanate Battery 12v 1.3Ah Customizable LTO Battery Pack Long Cycle Free Maintenance High Temperature Range

BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12V	Dimension(LxWxH)	95.4x30x74mm
Rated Capacity	1.3Ah	Dimension(LxWxH)	3.76x1.18x2.92'
Energy	15.6Wh	Weight	0.4kg
Resistance	≤12mΩ	Terminal Type	On demand
Efficiency	0.99	Battery Housing	Epoxy board+PVC
Cycle Life	>22000cycles @3C 20% DOD	Housing Protection	IP50
Self Discharge	2% per Month	Cell Type-Chemistry	LTO Cell
Max. Modules in Series/Parallel	1P/5S	SOC Display(Optional)	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	4A	Charge Method	CC-CV
Pulse Discharge Current	7A(<100S)	Charge Voltage	14-14.25V
Recommended Volt. Disconnect	7.5V	Recommended Float Voltage	13.75V
BMS Discharge Cut-off Voltage	8V	Recommended Charge Current	0.7A
Reconnect Voltage	10V	Maximum Charge Current	1.3A
Short Circuit Protection	200-500us	BMs Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-40 to 70 ℃
Charge Temperature	-40 to 70 ℃
Storage Temperature	-40 to 70℃
BMS High Temperature Cut-off	85 ℃

Lithium titanate battery

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
