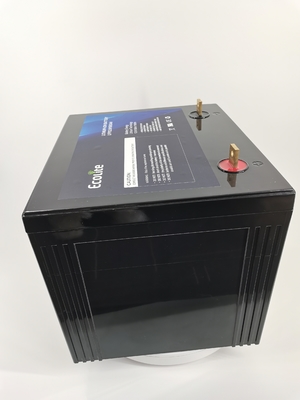

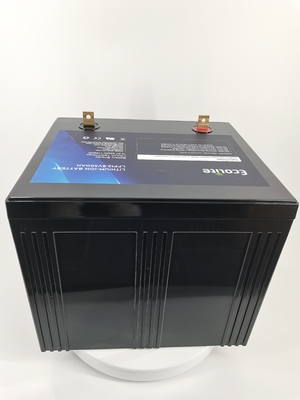

Marine LifePO4 Lithium Battery LFP 12.8V 560Ah M8 Terminal Type

5000
MOQ
Inquiry
Price
Marine LifePO4 Lithium Battery LFP 12.8V 560Ah M8 Terminal Type
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V
Rated Capacity: 560Ah
Energy: 7168Wh
Resistance: ≤30mΩ
Cycle Life: >6000cycles @0.5C,80% DOD
Self Discharge: <5% Per Month
Max, Modules In Series,Parallel: 4S/2P
Dimension(LxWxH): 401x351x342mm
Dimension((LxWxH): 15.79x 13.82x 13.46
Weight: 50Kg
Terminal Type: M8
Battery Housing: ABS
Housing Protection: IP65
Cell Type-Chemistry: LiFePO4 Cell
Communication: Bluetooth
Discharge Temperature: -20℃ To 60℃
Highlight:

Marine LifePO4 Lithium Battery

,

LifePO4 Lithium Battery 12.8V
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

Ecolite LifePO4 Lithium Battery LFP12.8V 560Ah

FEATURES

Lithium lron Phosphate (LiFePO4).

The SafestLithium Technology.

Integrated Battery Management System(BMS)

Maximum support 4 in series or 4 in parallel.

PERFORMANCE

Long Cycle Life >4000cycles@ 80%DOD.

High Density,High Discharge Current,High Tempera-ture Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.



Specifications

Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 560Ah
Energy 7168Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >6000cycles @0.5C,80% DOD
Self Discharge <5% per Month
Max, Modules in Series,Parallel 4S/2P



MechanicalParameters
Dimension(LxWxH) 401x351x342mm
Dimension((LxWxH) 15.79x 13.82x 13.46
Weight 50Kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 300A(<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current /
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 14.8V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃
