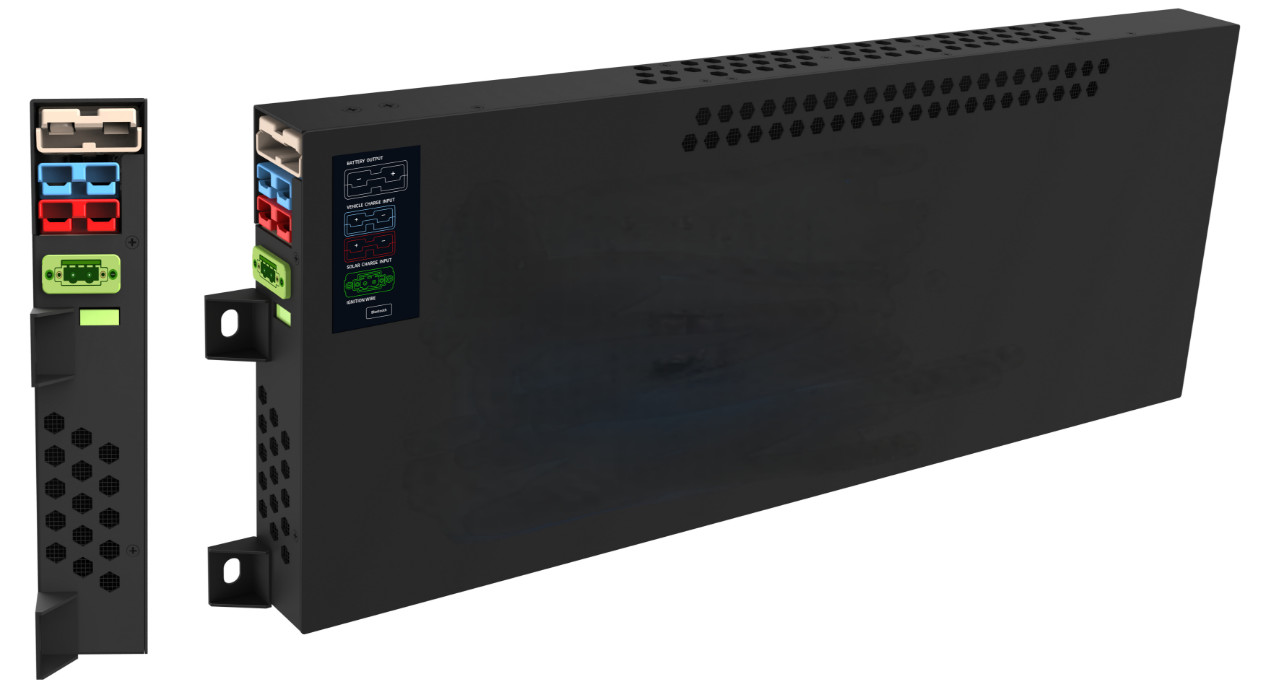

LFP 12.8V 100Ah 12V Marine LiFePO4 Battery Sailboat Boat Lithium Battery Pack

Name: LFP 12.8V 100Ah 12V Marine LiFePO4 Battery Sailboat Boat Lithium Battery Pack
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: SLIMLINE100
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: SLIMLINE100

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 3000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              12V Marine LiFePO4 Battery, 100Ah Marine LiFePO4 Battery, LFP Boat Lithium Battery


Nominal Voltage:	12.8V	Rated Capacity:	100Ah
Energy:	1280Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In SeriesParallel:	4S/1P

Nominal Voltage:	12.8V
Rated Capacity:	100Ah
Energy:	1280Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In SeriesParallel:	4S/1P

Description

LFP 12.8V 100Ah 12V Marine LiFePO4 Battery Sailboat Boat Lithium Battery Pack

SLIMLINE LFP12.8V 100Ah 12V Lithium Battery Pack For Marine Boat Sailboat

PERFORMANCE
SLIMLINE 100 sampling lithium iron phosphate battery cell, with built-in intelligent BMS, has characteristics such as long service life, light weight, high discharge current, wide temperature range, fast charging, maintenance free, safety and environmental protection.At the same time, it has multiple charging and discharging interfaces,supporting three charging methods: car generator,photovoltaic panel, and city power. lt is a multi- functional power supply, making it easier to use and more convenient.

CONNECTOR

INPUT

Anderson 50A(blue) Alternator,DC10.5-DC16.5V Max40A

Anderson 50A (red) Solar,DC9-DC50V Max40A

OUTPUT

Anderson 175A (grey) DC10V-DC14.6V,Max150A

Anderson 50A (grey)*2 DC10V-DC14.6V,Max50A

Car cigarette lighter DC10V-DC14.6V,Max10A

American standard refrigerator socket DC10V-DC14.6V,Max10A

USB-A QC3.0(x2) 5V-3A;9V-2A;12V-1.5A,Max18W

USB-C PD3.0 5V-3A:9V-3A:12V-3A;15V-3A;20V-3A,Max60W

OTHER

4P Wiring terminal Display interface

2P Wiring terminal IGNITION

BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(W×H×D) Including installation feet	685x230x50mm
Rated Capacity	110Ah		26.97 x9.06x 1.97''
Energy	1408Wh	Weight	15kg
Resistance	≤30mΩ	Terminal Type	Reference connector parameters
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP30
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	55A
Reconnect Voltage	10.8V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	14.8V
