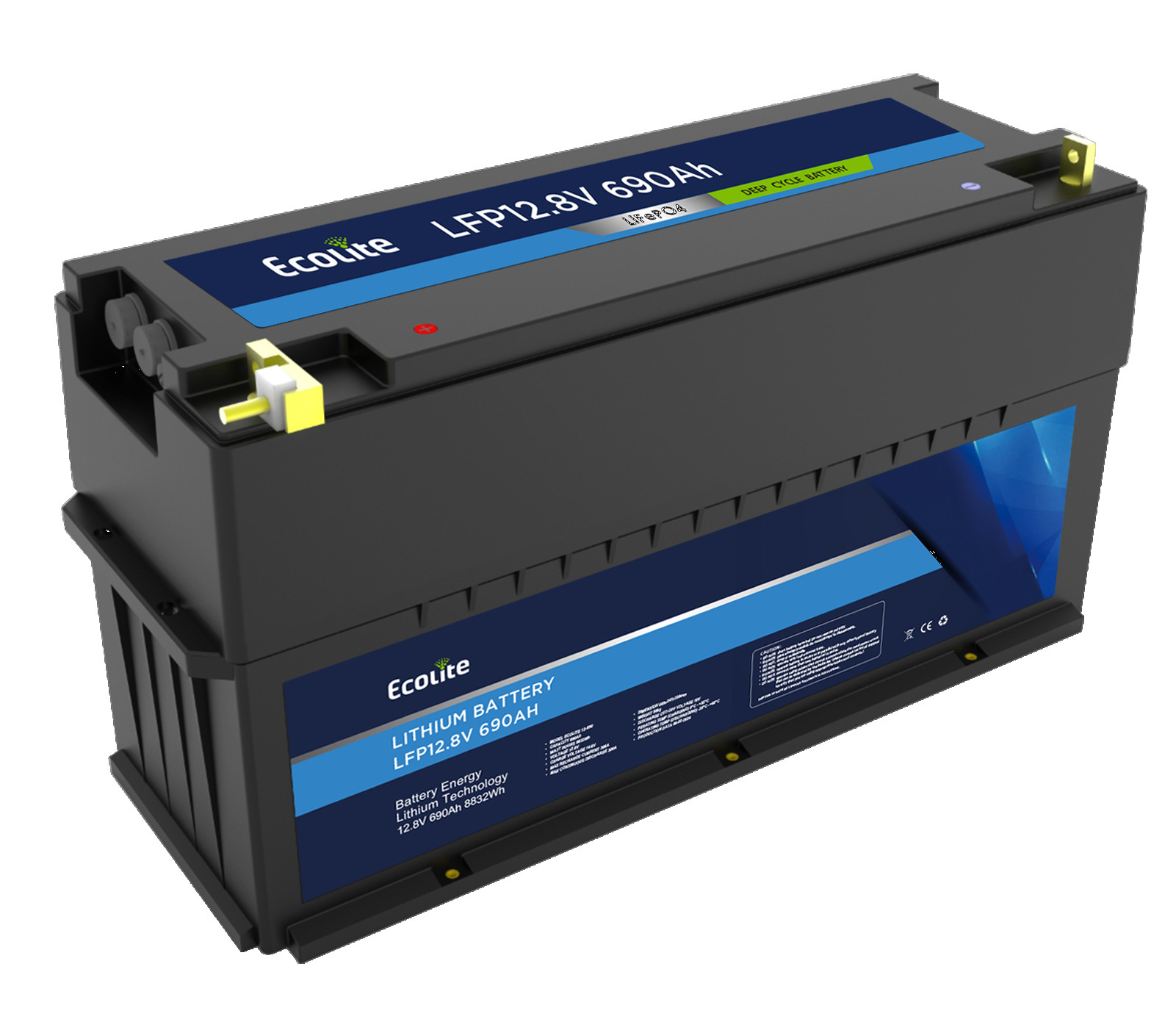

LFP 12.8V 690Ah Lithium Iron Phosphate Marine Battery IP65 Housing Protection

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  12.8V Lithium Iron Phosphate Marine Battery, 690Ah Lithium Iron Phosphate Marine Battery


Nominal Voltage:	12.8V	Rated Capacity:	690Ah
Energy:	8832Wh	Resistance:	≤50mΩ
Cycle Life:	>4000cycles @1C,80% DOD	Self Discharge:	<5% Per Month
Cell In SeriesParallel:	4S/3P	Dimension(WxDxH):	29.21x 9.49x 12.13
Weight:	56kg	Terminal Type:	M8
Battery Housing:	ABS	Housing Protection:	IP65
Cell Type-Chemistry:	LiFePO4 Cell

Nominal Voltage:	12.8V
Rated Capacity:	690Ah
Energy:	8832Wh
Resistance:	≤50mΩ
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Cell In SeriesParallel:	4S/3P
Dimension(WxDxH):	29.21x 9.49x 12.13
Weight:	56kg
Terminal Type:	M8
Battery Housing:	ABS
Housing Protection:	IP65
Cell Type-Chemistry:	LiFePO4 Cell

Description

LFP 12.8V 690Ah Lithium Iron Phosphate Marine Battery IP65 Housing Protection

Ecolite LFP12-690(12.8V690Ah)Lithium Iron Phosphate

Specifications

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	690Ah
Energy	8832Wh
Resistance	≤50mΩ
Efficiency	≥0.98
Cycle Life	>4000cycles @1C,80% DOD
Self Discharge	<5% per Month
Cell in SeriesParallel	4S/3P

Mechanical Parameters
Dimension(WxDxH)	742x 241x 308mm
Dimension(WxDxH)	29.21x 9.49x 12.13
Weight	56kg
Terminal Type	M8
Battery Housing	ABS
Housing Protection	IP65
Cell Type-Chemistry	LiFePo4 Cell
Communication	CAN

Discharge Parameters
Continuous Discharge Current	300A
Pulse Discharge Current	500A (<10S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	300A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
