24V 1.3Ah Smart 31.2Wh Lithium Titanate LTO Battery Pack For Solar Tracker Integrate BMS

Name: 24V 1.3Ah Smart 31.2Wh Lithium Titanate LTO Battery Pack For Solar Tracker Integrate BMS
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2401
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2401

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Solar Tracker LTO Battery Pack, Smart 31.2Wh LTO Battery Pack, 24V 1.3Ah LTO Battery Pack


Chemical Formula:	Lithium Titanate Oxide	Nominal Voltage:	24V
Nominal Capacity:	1.3Ah	Rated Energy:	31.2Wh
Resistance:	≤100mΩ	Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Size(W×D×H):	195x71x35mm	Self Discharge:	＜5% Per Month
Cell In Series/Parallel:	10S/1P

Chemical Formula:	Lithium Titanate Oxide
Nominal Voltage:	24V
Nominal Capacity:	1.3Ah
Rated Energy:	31.2Wh
Resistance:	≤100mΩ
Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Size(W×D×H):	195x71x35mm
Self Discharge:	＜5% Per Month
Cell In Series/Parallel:	10S/1P

Description

24V 1.3Ah Smart 31.2Wh Lithium Titanate LTO Battery Pack For Solar Tracker Integrate BMS

Ecolite 24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

Application scenarios of lithium titanate batteries

Lithium titanate batteries are suitable for scenarios that require high safety, long lifespan, and fast charging, such as public transportation, grid energy storage, etc. In these fields, the high safety and long lifespan characteristics of lithium titanate batteries can significantly reduce operational risks and maintenance costs. In addition, due to its high safety and environmental friendliness, lithium titanate batteries are also widely used in the field of home appliances and smart homes.

Features

Lithium Titanate(LTO).

The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Suitable for solar tracking systems.

Supports a five-year warrenty.

Performance

Long Cycle Life＞10000cycles,Remaining capacity＞80%@25℃,1C/1C,100%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

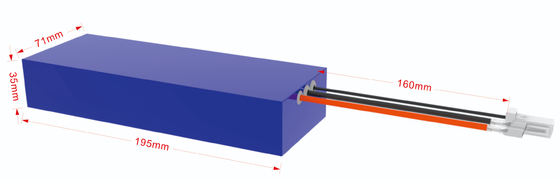

Three views of product

24V 1.3Ah Smart 31.2Wh Lithium Titanate LTO Battery Pack For Solar Tracker Integrate BMS 0

Product specification

Lithium Titanate(LTO) ECOLTO2401(24V1.3Ah)

Electrical Parameters		Mechanical Parameters
Nominal Voltage	24V	Dimension(L×W×H)	195x71x35mm
Nominal Capacity	1.3Ah	Dimension(L×W×H)	7.68x2.80x1.38"
Energy	31.2Wh	Weight	0.8kg
Resistance	≤ 100mΩ	Terminal Type	FASTON 6.1*0.8mm both V+andV-
Efficiency	0.98	Battery Housing	PVC
Cycle Life(25℃,1C/1C,100％DOD)	>10000cycles,Remaining capacity＞80％	Housing Protection	IP20
Self Discharge	＜5% per Month	Cell Type-Chemistry	LTO Cell
Cell in Series/Parallel	10S/1P	Communication(Optional)	JST PAP-02-V
Discharge Parameters		Charge Parameters
Continuous Discharge Current	4A	Charge Method	CC-CV
Pulse Discharge Current	20A (<1S)	Charge Voltage	27.5V-28V
Recommended Volt. Disconnect	15V	Recommended Float Voltage	27.0V-27.5V
BMS Discharge Cut-off Voltage	17V	Recommended Charge Current	1.3A
Reconnect Voltage	18V	Maximum Charge Current	4A
Short Circuit Protection	200-500us	BMS Charge Cut-off Voltage	28.5V
Temperature Parameters
Discharge Temperature	-40 to 65 ℃
Charge Temperature	-40 to 65 ℃
Storage Temperature	0 to 45℃
BMS High Temperature Cut-off	65 ℃
