Highlight:
25.6V Lithium Iron Phosphate Battery Pack
, 7.5Ah Lithium Iron Phosphate Battery Pack
Chemical Formula: |
Lithium Iron |
Nominal Voltage: |
25.6V |
Rated Capacity: |
7.5Ah |
Energy: |
192Wh |
Cycle Life（25℃，1C/1C,100％DOD）: |
>2000cycles ,Remaining Capacity＞80％ |
Size（W×D×H）: |
182x75x108mm |
Weight: |
2.3kg |
Terminal Type: |
FASTON 187,FASTIN-FASTON 250 |
Battery Housing: |
PVC |
Discharge Temperature: |
-20℃ To 60℃ |
Charge Temperature: |
-20℃ To 60℃ Support Heating |
Storage Temperature: |
0℃ To 25℃ |
BMS High Temperature Cut Off: |
65℃ |

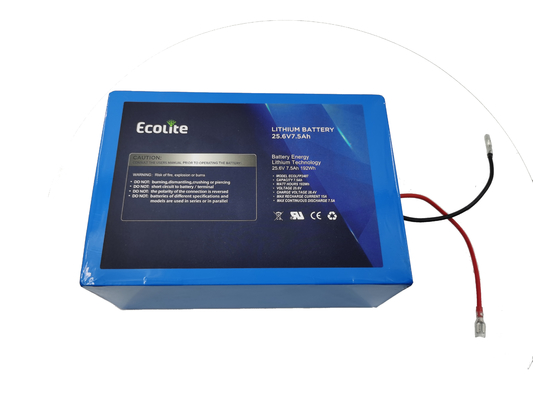

25.6V 7.5Ah LifePO4 Lithium Iron Phosphate Battery Pack For Solar Tracker Electric Door
LFP 25.6V7.5Ah LifePO4 Lithium Iron Battery Pack For Solar Tracker/Medical Instrument/Street LED Lamp/Electric Door With BMS
LFP batteries: properties and usage
Lithium iron battery have good safety performance, high chemical stability of cathode material Ferrous lithium phosphate, and no combustion and explosion even under special conditions such as short circuit, overcharge, extrusion, acupuncture, etc.Low self-discharge rate, convenient for long-term storage.No memory effect, the battery can be used with charging.The temperature characteristic is good, the thermal peak can reach 350℃ to 500℃, and the working temperature range is generally -20℃ to 75℃.The cost is low, and the raw materials do not contain rare and expensive metal elements such as cobalt.Environmental protection, does not contain any heavy metals and rare metals, and is non-toxic and pollution-free.
LFP batteries applications
They use it in different applications like Solar tracker, 24V power tools, electric equipment,24V instrument,24V LED lamp, Solar energy storage, Electric door, Medical instrument,Surveillance camera,UPS, Electrical power trains, Solar powered street lights, Fast charge stations.
Play for any application that currently uses AGM, GEL ,lead-acid or LiFePo4 Battery.
The main advantages of the LFP batteries
Lithium iron battery has good thermal stability, is less prone to thermal runaway, and has better safety performance than other types of lithium-ion batteries. Lithium iron phosphate batteries have a long cycle life, generally reaching 1000-2000 charge and discharge cycles, and even some products can reach more than 3500 cycles, with high cost-effectiveness,
Three views of product
Product specification
Lithium Iron(LFP) ECOLFP2407(25.6V7.5Ah)
| Electrical Parameters |
Mechanical Parameters |
| Rated Voltage |
25.6V |
Dimension(L×W×H) |
182x75x108mm |
| Rated Capacity |
7.5Ah |
7.17x2.95x4.25" |
| Energy |
192Wh |
Weight |
2.3kg |
| Resistance |
≤ 45mΩ |
Terminal Type |
FASTON 187,FASTIN-FASTON 250 |
| Efficiency |
0.98 |
Battery Housing |
PVC |
| Cycle Life(25℃,1C/1C,100％DOD) |
>2000cycles,Remaining capacity＞80％ |
Housing Protection |
IP20 |
| Self Discharge |
＜5% per Month |
Cell Type-Chemistry |
LiFePO4 Cell |
| Cell in Series/Parallel |
8S/5P |
Communication(Optional) |
UART(Voltage,Current,Temperature) |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
15A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
40A (<1S) |
Charge Voltage |
28.4V-29.2V |
| Recommended Volt. Disconnect |
20V |
Recommended Float Voltage |
26.6V-26.8V@100％ |
| BMS Discharge Cut-off Voltage |
20V |
Recommended Charge Current |
4A |
| Reconnect Voltage |
21.6V |
Maximum Charge Current |
7.5A |
| Short Circuit Protection |
200-500us |
BMS Charge Cut-off Voltage |
29.6V |
| Temperature Parameters |
|
|
| Discharge Temperature |
-20 to 60 ℃ |
|
|
| Charge Temperature |
-20 to 60 ℃,Support heating |
|
|
| Storage Temperature |
0 to 25℃ |
|
|
| BMS High Temperature Cut-off |
65 ℃
|
Hefei Ecolite Energy Co., Ltd., founded in 2014,is a China leading manufacturer who specialized in R&D,production,sales and technology support of Lithium battery (LFP and LTO) and BMS.
We provide full solution for your battery inquiry.One-stop service from battery design to delivery.
APPLICATION
Our lithium batteries are widely used in home, industrial and commercial energy storage, solar systems, RV(recreational vehicle), forklifts, golf carts, AGVs and small appliances.
MAINLY EXPORTED
Australia, Spain, South Africa, Japan, Germany, Singapore and other countries,.Product quality and service have been widely recognized by customers.
