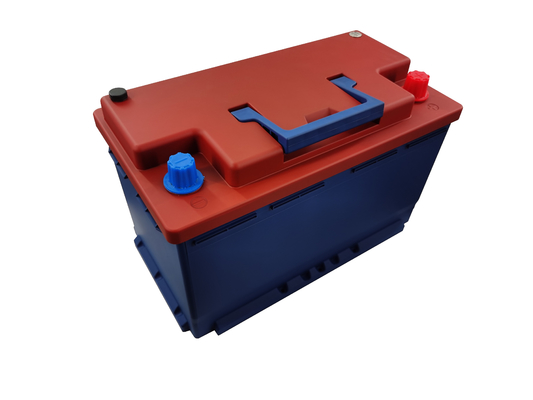

OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring

3000
MOQ
Inquiry
Price
OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 70Ah
Energy: 896Wh
Resistance: ≤7mΩ
Efficiency: ≥98%
Cycle Life(25℃,1C/1C,100%DOD): >8000cycles,70%SOH
Self Discharge: <5% Per Month
Cell In Series/Parallel: 4S/3P
Highlight:

12.8V 70Ah LFP Battery Pack

,

Lightweight LFP Battery Pack

,

Car Staring LFP Battery Pack

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP457TDP
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

OEM/ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring


Features:
1.Fast charging :Fully charged in about 1 hour.
2.Lightweight :Original lead-acid battery 1/2.
3.Built in BMS with self balancing function.
4.Reserve 30% SOC for emergency start-up.
5.Safety: overcurrent, overtemperature,
overvoltage, undervoltage protection.

Performance Feature:

1.High energy density

2.Long cycle life>8000cycles,70%SOH
3.Fast charging

4.High security


OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 0

 OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 1

Mechanical Parameters
Model LFP12.8V70Ah
Dimension(W×D×H) 279mm×175mm×189mm
Product Weight 10kg
Terminal Type post
Battery Housing ABS
Housing protection IP65
Cell Type-Chemistry LiFePO4 Cell



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 1000A(<3S)
CCA(Tested by DY-2015) 1000CCA
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10V



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.4~14.6V
Recommended Float Voltage 13.5~13.8V
Recommended Charge Current 70A
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 15.6V



Temperature Parameters
Discharge Temperature -40℃ to 85℃(-40℃,0.2C)
Charge Temperature -30  to 85 ℃(-30℃,0.1C)
Storage Temperature -20℃ to 25 ℃(1 year)
BMS High Temperature Cut-off 85℃



OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 2
OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 3

APPLICATION
Our lithium batteries are widely used in home, industrial and commercial energy storage, solar systems, RV(recreational vehicle), forklifts, golf carts, AGVs and small appliances.
OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 4
MAINLY EXPORTED
Australia, Spain, South Africa, Japan, Germany, Singapore and other countries,.Product quality and service have been widely recognized by customers.



OEM / ODM Lightweight LFP 12.8V 70Ah LiFePO4 Cranking Battery Pack For Car Staring 5
Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
