Name: ECOLITE 24V 6Ah Lithium Iron Phosphate Batteries For Solar Tracking Systems
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2406
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Nominal Voltage: 25.6V

Rated Capacity: 6Ah

Energy: 153.6Wh

Resistance: ≤50mΩ

Efficiency: 0.98

Cycle Life（25℃，1C/1C，100%DOD）: ＞2000cycles，Remaining Capacity＞80%

Self Discharge: 8S/4P

Highlight:

6Ah Lithium Iron Phosphate Batteries

ECOLITE Lithium Iron Phosphate Batteries

24V Lithium Iron Phosphate Batteries

Basic Infomation

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2406

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Gallery

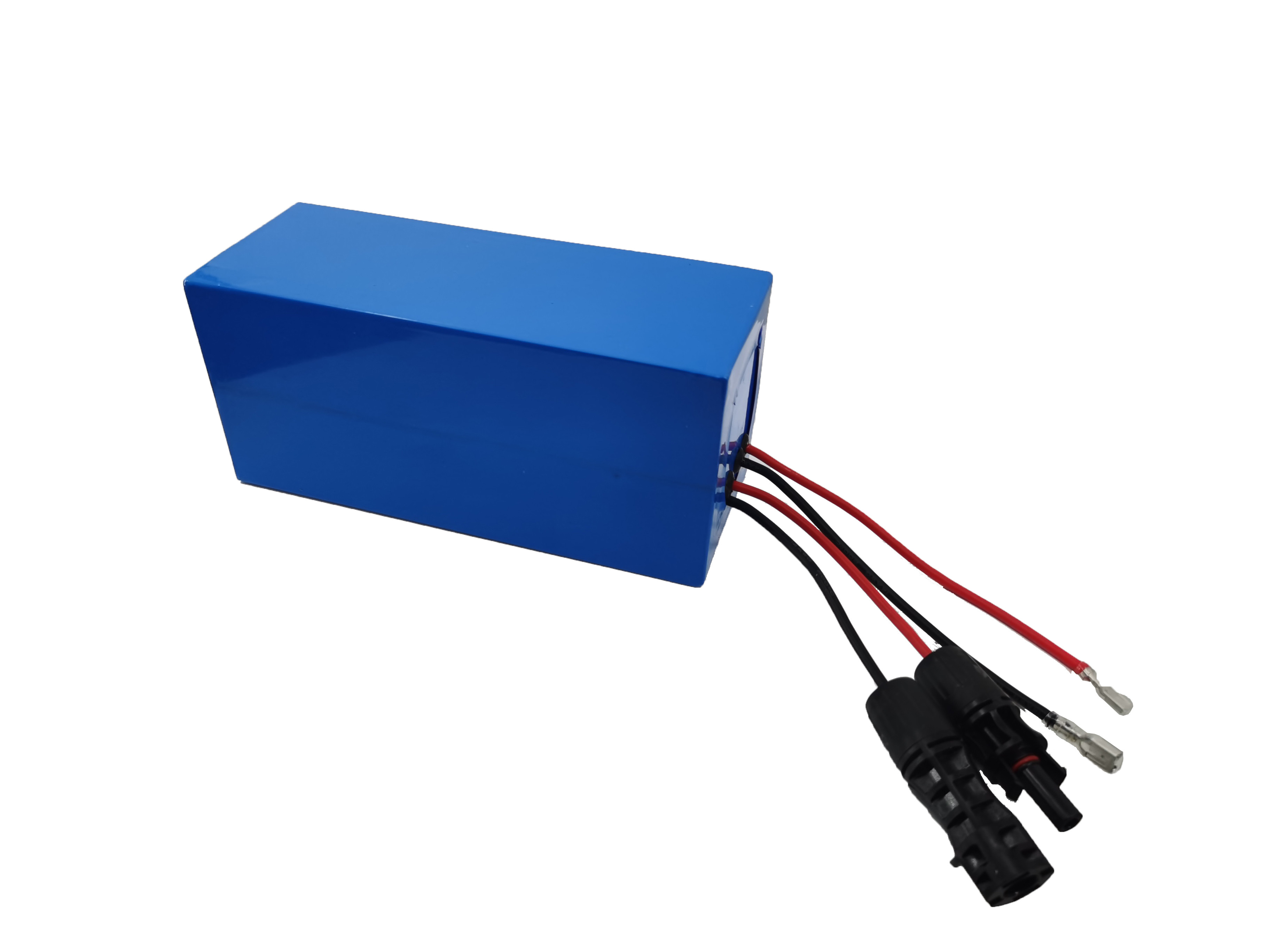

ECOLITE 24V 6Ah Lithium Iron Phosphate Batteries For Solar Tracking Systems

Product Description

ECOLITE 24V 6Ah Lithium Iron Phosphate Batteries For Solar Tracking Systems

DESCRIPTION

ECOLITE offers a wide range of solar panel tracker battery which can be used in various solar tracking systems, which can calculate the sun's position using the current longitude, latitude, and time of day, and position of the tracking solar PV system to face the sun directly.

FEATURES

Lithium Iron Phosphate (LiFePO4).

The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Integrated MPPT function.

Suitable for solar tracking systems.

Supports a five-year warranty.

PERFORMANCE

Long Cycle Life: Exceeds 2000 cycles with ≥80% remaining capacity
(Tested at 25℃, 1C charging/discharging rate, 100% Depth of Discharge)

High Energy Density: Optimized for compact energy storage solutions

High Discharge Current: Supports peak power demands efficiently

Wide Operating Temperature Range: Maintains performance in extreme climates

Lightweight Design: Reduces installation complexity and structural load

Maintenance-Free: No electrolyte replacement or regular servicing required

Rapid Charging Capability: Reaches full capacity in minimal time

Eco-Friendly: Utilizes non-toxic materials and sustainable manufacturing processes

Electrical Parameters
Nominal Voltage	25.6V
Rated Capacity	6Ah
Energy	153.6Wh
Resistance	≤50mΩ
Efficiency	0.98
Cycle Life(25℃,1C/1C,100%DOD)	>2000cycles ,Remaining capacity ＞80%
Self Discharge	＜5% per Month
Cell in Series/Parallel	8S/4P

Mechanical Parameters
Dimension(LWH)	192mmx86mmx75mm
Dimension(LWH)	7.56"x3.39"x2.95"
Weight	1.9Kg

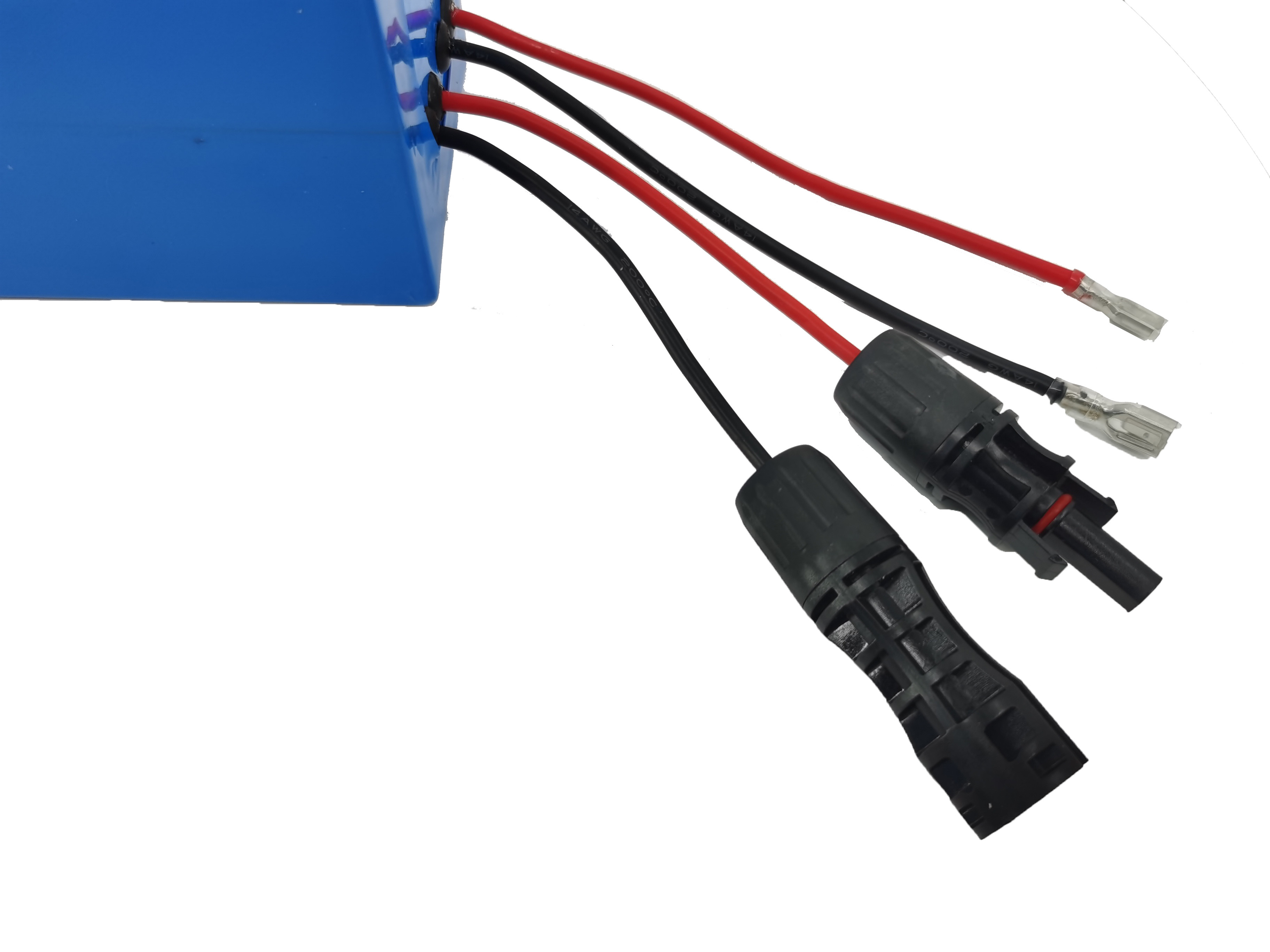

Terminal Type	+,TE 2293255-1;-,TE5-160526-9;MC4
Battery Housing	PVC
Housing Protection	IP20
Cell Type-Chemistry	LiFePO4 Cell
Communication(Optional)	UART(Voltage,Current,Temperature)

Discharge Parameters
Continuous Discharge Current	12A
Pulse Discharge Current	40A (<1S)
Recommended Volt. Disconnect	20V
BMS Discharge Cut-off Voltage	20V
Reconnect Voltage	21.6V
Short Circuit Protection	200-500us

Charge Parameters
MPPT Range	DC16V~DC36V
Max. Input Current	6A
BMS Charge Cut-off Voltage	29.6V

Temperature Parameters
Discharge Temperature	-20 ℃to 60 ℃
Charge Temperature	-20℃to 60 ℃,Support heating
Storage Temperature	0℃ to 25℃
BMS High Temperature Cut-off	65 ℃
