JS100 DC Input 25.9V 6Ah For Motorcycles ATVs Lithium And Deep Cycle Batteries

5000
MOQ
Inquiry
Price
JS100 DC Input 25.9V 6Ah  For Motorcycles ATVs Lithium And Deep Cycle Batteries
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Parameters: JS100
Weight: 1.7kg
Dimension(LxWxH): 240×140×75.5mm
Battery Capacity: 14.8V 2.5Ah 37Wh
Housing Protection: IP54
Maximum Pulse Current: 3000A@1ms
Highlight:

25.9V Lithium And Deep Cycle Batteries

,

6Ah Lithium And Deep Cycle Batteries

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: JS100
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

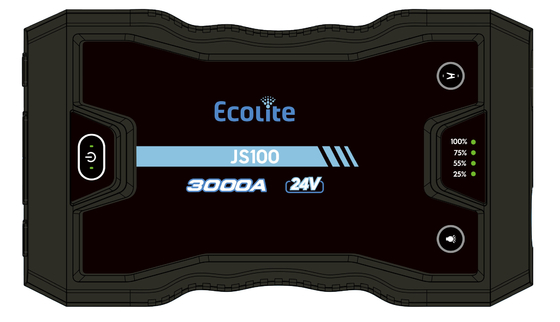

Ecolite Lithium Jump Starter JS100 25.9V 6Ah



DESCRIPTION

The design philosophy of JS100 is easy to operate, portable, and capable of handling various emergency situations. Its advantages are light weight, small size, easy to master, long standby time, long service life, and wide temperature range. It is a portable lithium jump starter designed specifically for 24V starters.


FUNCTION

This jump start product is designed with versatile connectivity and practical utilities. It features a USB-A output and USB-C output for charging smartphones, tablets, and other portable devices, ensuring compatibility with modern gadgets. Additionally, it incorporates a high-intensity LED flashlight for emergency illumination and a dedicated Jump Start Output to quickly revive dead vehicle batteries, making it an essential tool for roadside assistance.



SECURE PROTECTION

To ensure safe and reliable operation, the device is equipped with advanced safety mechanisms. These include overvoltage, undervoltage, overcurrent, overtemperature, and short circuit protection. These integrated safeguards prevent damage to connected devices, the jump starter itself, and the vehicle’s electrical system, providing peace of mind during charging and jump-starting applications.



SPECIFICATION

Basic Parameters JS100
Weight 1.7kg
Dimension(LxWxH)
240x140x75.5mm
Battery Capacity
25.9V6Ah 155.4Wh
Housing Protection IP54
Input
DC DC11V~DC30V,MAX45W
Outport
USB-A QC3.0(×2) 5V-3A,9V-2A,12V-1.5A,Max18W
USB-C 5V-3A,9V-3A,12V-3A,15V-3A,20V-3A,Max60W
Start Interface
Maximum Pulse Current 3000A@1ms
Continuous Output Current 30A-80A@Lasts 15 seconds
External Detection Voltage Range

17.0±0.5V~30±0.5V

LED Light
LED Power 360mA@3V,1W
Temperature
Operating Temperature Charge 0℃~+45℃;Discharge-10℃~+50℃
Storage Temperature -10℃-+50℃
Power Consumption
Static Power ≤100uA
