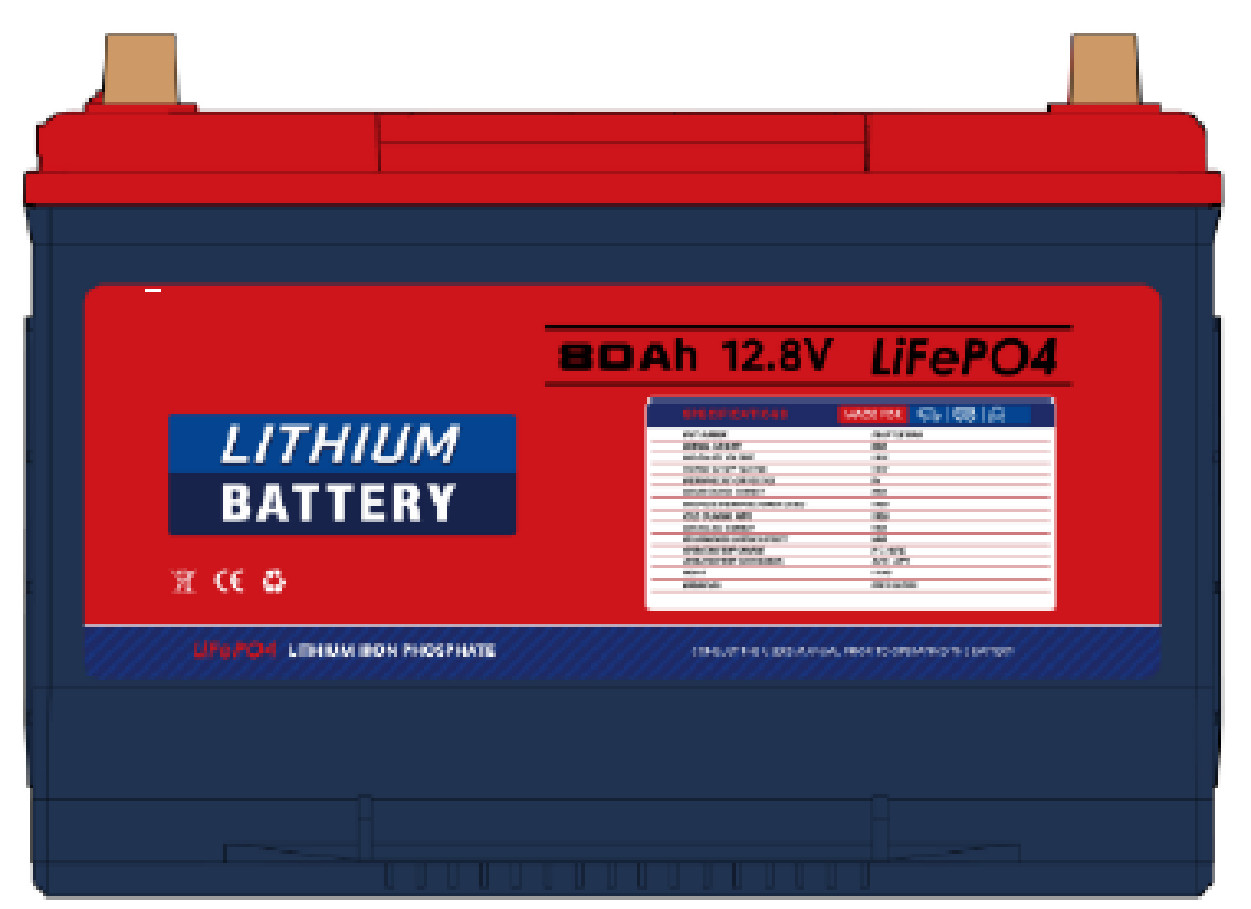

Long Cycle Life LiFePO4 LFP 12.8V 80Ah Lithium Iron Phosphate Cranking Battery

5000
MOQ
Inquiry
Price
Long Cycle Life LiFePO4 LFP 12.8V 80Ah Lithium Iron Phosphate Cranking Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Model: JS-LFP12.8V80Ah
Housing Material: ABS
Max.Pulse Discharge Current(3 Sec): 1000A
Dimension(W×D×H): 306×174×200/220mm
Weight: 11.5kg
Nominal Voltage: 12.8V
Nominal Capacity: 80Ah
Resistance: ≥98%
Highlight:

12.8V Lithium Jump Starter

,

LFP Lithium Jump Starter
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

Lithium Iron Phosphate Starting Battery Lithium Jump Starter LFP12.8V80Ah

FEATURES



Low self discharge → < 2% / month
High working voltage →＞ 12.8V
High current starting capacity → 30C
Fast charging → About 1hr full charge
Light weight → Primary lead-acid battery 1 / 2
Long service life → ＞ 2000 Cycles
Built in BMS with self balancing function
Wide temperature range
Maintenance free
Environment protection
Physical Characteristics
Model JS-LFP12.8V80Ah
Length 306mm
Width 174mm
Height 200/220mm
PackingWeight Approx. 12kg
BatteryWeight Approx. 11.5 kg
Housing Material ABS



Operating Conditions
Standard Charge CC/CV
MaxCharge Voltage 16.4V
Discharge Cut-off Voltage 15.6V
Recommended Charge Current ≤40A
Max Charge Current 100A
Discharge Cut-off Voltage 8V
Max.Discharge Current 200 A
Max.Pulse Discharge Current(3 Sec) 1000A
Max.Charge Current 1000A



Electrical Characteristics
Nominal Voltage 12.8 V
Rated Capacity 80Ah
Resistance AC IR(1kHz) <12mΩ
Watt-Hours(0.5C,25℃) 1024 Wh
Cycle Life at DOD 100% (25 ℃)
1C Discharge/0.5C Charge(80%↑)		 2000 Cycles



Operating Temperature Range
Charge Temperature 0 ℃ / 55 ℃
Discharge Temperature -20 ℃ / 60 ℃
Storage Temperature 0 ℃ / 35 ℃
BMS High Temperature Cut-off 65℃
