Car Starter Sodium Battery 20 Minute Fast Charge 15C Cranking -30℃ Discharge

Car Starter Sodium Battery 20 Minute Fast Charge 15C Cranking -30℃ Discharge

Why Sodium Instead of Lead or Lithium

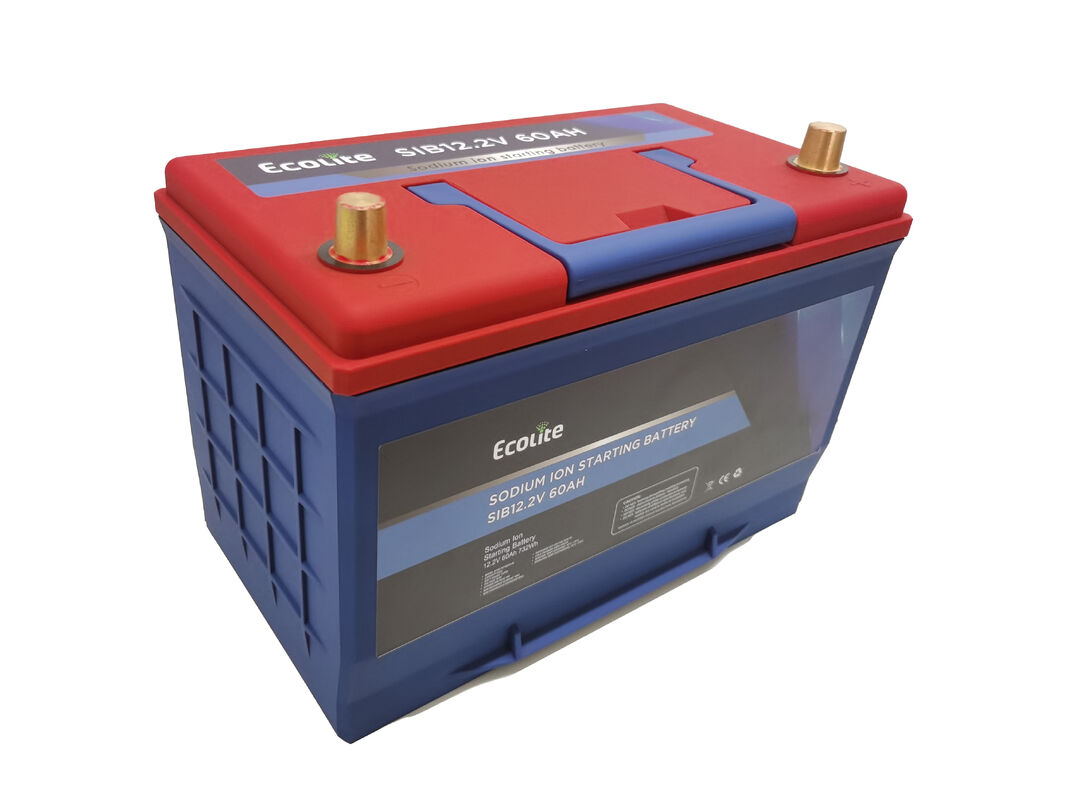

This 12.2V 60Ah battery uses sodium ion chemistry which combines the safety of LiFePO4 with the cold cranking power of lead acid but without the weight or toxicity. It delivers 900 cold cranking amps and 15C pulse current while weighing only 9.5 kilograms. A comparable lead acid battery would weigh 18 to 20 kilograms and last only 500 cycles. This sodium battery lasts over 3000 cycles.

Direct Replacement for Standard Car Batteries
The dimensions are 306 by 174 by 200 millimeters and terminal type is standard automotive post. It fits most passenger cars SUVs light trucks and boats that use group size 24 27 or 31 battery trays. The nominal voltage is 12.2V which stays above 12V under load unlike lead acid that drops to 10V during cranking. The engine starts faster and electronics see cleaner power.

Extreme Cold Starting Performance
Discharge temperature range goes down to -30°C. At -20°C the battery still delivers over 600 CCA enough for most petrol engines. The BMS allows discharge at low temperatures without restriction. For cold climates this sodium battery outperforms standard lead acid which loses half its CCA below freezing.

Ultra Fast Charging Saves Time
Maximum charge current is 180 amps which can fully recharge the battery from empty in 20 minutes using a suitable charger. For daily driving the alternator typically recharges the battery within 10 to 15 minutes of driving after starting. The recommended charge current is 30 amps for normal use but the battery accepts up to 180 amps without damage.

Built in BMS with Self Balancing
The internal Battery Management System monitors each cell individually. It balances cells during charging to maintain capacity. Protection includes overcharge cutoff at 16V over discharge cutoff at 8V over current on both charge and discharge short circuit and high temperature cutoff at 70°C. The BMS also prevents reverse polarity connection.

Rugged Construction for Under Hood Use
The housing is ABS plastic with IP65 dust and water resistance. It withstands vibration engine heat and road spray. Operating temperature for discharge is -30°C to 70°C. Charge temperature is -20°C to 70°C. Storage temperature is 0°C to 35°C. The battery is sealed and maintenance free no water to add no acid to spill.

Lower Self Discharge for Long Storage
Self discharge is less than 3 percent per month. A vehicle left parked for 3 months will still have over 90 percent charge remaining. Lead acid batteries self discharge at 5 to 10 percent per month and often go flat after 2 months of storage. This sodium battery is ready to start even after long idle periods.

Applications Beyond Starting
While designed as a starting battery it also works for marine cranking RV house power backup sump pumps and small solar systems. The high 180A continuous discharge can run a 2000W inverter. The 60Ah capacity provides 720 watt hours of usable energy. For dual purpose starting and deep cycle use this battery handles both roles.

Compare to Lead Acid Directly
Lead acid 60Ah battery weighs 18kg provides 300 to 500 cycles usable capacity only 30Ah (50 percent DOD) and requires checking water levels every month. Sodium 60Ah battery weighs 9.5kg provides 3000 cycles usable capacity 60Ah (100 percent DOD) and requires no maintenance. The sodium battery pays for itself in two years through longer life and less downtime.

OEM and Custom Options
Hefei Ecolite Energy offers OEM and ODM services for this sodium battery. Customers can print their own logo on the housing customize terminal orientation or change the ABS color. Minimum order quantities for custom work start at 100 units. Free samples are available with freight charged.

Warranty and Shipping
Standard warranty is one year. The battery ships with UN38.3 certification and MSDS documents. Transport is usually by sea. Payment terms include T/T and L/C. Monthly cell production capacity is 1.8 million units. The company has exported to Australia Spain South Africa Japan Germany and Singapore.
