24V 2.6Ah Long Cycle Life＞10000cycles Lithium Titanate LTO Battery Integrated MPPT Function

Name: 24V 2.6Ah Long Cycle Life＞10000cycles Lithium Titanate LTO Battery Integrated MPPT Function
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2402
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2402

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  24V Lithium Titanate LTO Battery, 2.6Ah Lithium Titanate LTO Battery


Chemical Formula:	Lithium Titanate Oxide	Nominal Voltage:	24V
Rated Capacity:	2.6Ah	Energy:	62.4Wh
Resistance:	≤70mΩ	Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Dimension(W×D×H):	205x71x55mm	Weight:	1.2kg
Terminal Type:	+,TE 2293255-1;-,TE5-160526-9,MC4

Chemical Formula:	Lithium Titanate Oxide
Nominal Voltage:	24V
Rated Capacity:	2.6Ah
Energy:	62.4Wh
Resistance:	≤70mΩ
Cycle Life（25℃，1C/1C,100％DOD）:	>10000cycles ,Remaining Capacity＞80％
Dimension(W×D×H):	205x71x55mm
Weight:	1.2kg
Terminal Type:	+,TE 2293255-1;-,TE5-160526-9,MC4

Description

24V 2.6Ah Long Cycle Life＞10000cycles Lithium Titanate LTO Battery Integrated MPPT Function

Ecolite 24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

Product specification

Lithium Titanate(LTO) ECOLTO2402(24V2.6Ah)

Electrical Parameters		Mechanical Parameters
Nominal Voltage	24V	Dimension(L×W×H)	205x71x55mm
Nominal Capacity	2.6Ah	Dimension(L×W×H)	8.07x2.80x2.17"
Energy	62.4Wh	Weight	1.2kg
Resistance	≤ 70mΩ	Terminal Type	+,TE 2293255-1;-,TE5-160526-9,MC4
Efficiency	0.98	Battery Housing	PVC
Cycle Life(25℃,1C/1C,100％DOD)	>10000cycles,Remaining capacity＞80％	Housing Protection	IP20
Self Discharge	＜5% per Month	Cell Type-Chemistry	LTO Cell
Cell in Series/Parallel	10S/2P	Communication(Optional)	UART(Voltage,Current,Temperature)
Discharge Parameters		Charge Parameters
Continuous Discharge Current	8A	MPPT Range	DC16V~DC36V
Pulse Discharge Current	25A (<1S)	Max.Input Current	6A
Recommended Volt. Disconnect	15V	BMS Charge Cut-off Voltage	28.5V
BMS Discharge Cut-off Voltage	17V
Reconnect Voltage	18V
Short Circuit Protection	200-500us
Temperature Parameters
Discharge Temperature	-40 to 65 ℃
Charge Temperature	-40 to 65 ℃
Storage Temperature	0 to 45℃
BMS High Temperature Cut-off	65 ℃

ADVANTAGES

Lithium Titanate Oxide (LTO) Technology
- Industry-leading safety with non-flammable electrolyte
- Exceptional cycle life exceeding 10,000 cycles
- Operational temperature range: -40°C to +60°C
- UL/CE-certified for global safety standards
Integrated Smart Battery Management System (BMS)
- Real-time voltage/current/temperature monitoring
- Overcharge/discharge/short circuit protection
- Active cell balancing for optimized performance
- Remote diagnostics capability via IoT connectivity
Solar Tracking System Optimization
- Perfectly matched for single-axis/two-axis tracker applications
- High-power delivery for motor actuation requirements
- Grid-independent operation for remote locations
Long-Term Performance Assurance
- 5-year comprehensive warranty (industry-leading coverage)
- 80% capacity retention after 10 years
- Global service network with 24/7 technical support
Sustainable Energy Storage
- Zero maintenance design
- Recyclable materials construction
- Carbon-neutral manufacturing process

PERFORMANCE

Cycle Life Excellence: Engineered with cutting-edge lithium-ion technology, this battery delivers an industry-leading cycle life exceeding 10,000 cycles while maintaining ≥80% remaining capacity under rigorous 25℃ testing conditions (1C/1C charge-discharge, 100% DOD).

Premium Performance Features:

High Energy Density: Maximizes power output in compact designs, ideal for space-constrained solar tracking systems.
Rapid Discharge Capability: Supports high-current applications with stable voltage output.
Wide Thermal Range: Operates reliably across extreme temperatures, ensuring consistent performance in challenging environments.

Advanced Design:

Ultra-Lightweight: Reduces system load and installation complexity without compromising durability.
Maintenance-Free Operation: Eliminates need for periodic servicing, minimizing lifecycle costs.

Charging Efficiency: Equipped with fast-charging technology, enabling rapid energy replenishment for continuous solar tracking operations.

Sustainability Focus: Constructed with eco-friendly materials and designed for recyclability, aligning with global green energy initiatives.

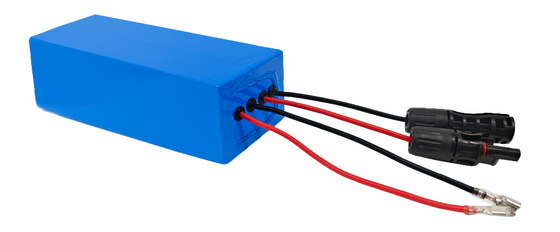

Three views of product
24V 2.6Ah Long Cycle Life＞10000cycles Lithium Titanate LTO Battery Integrated MPPT Function 0
