25.6V 6.5Ah 156Wh Lithium Titanate Battery Pack For Solar Tracking System

Name: 25.6V 6.5Ah 156Wh Lithium Titanate Battery Pack For Solar Tracking System
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2406
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2406

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  25.6V Lithium Titanate Battery Pack, 156Wh Lithium Titanate Battery Pack


Chemical Formula:	Lithium Titanate Oxide	Nominal Voltage:	24V
Capacity:	6.5Ah	Energy:	156Wh
Resistance:	≤40mΩ	Efficiency:	0.98
Cycle Life:	＞10000cycles，Remaining Capacity＞80%	Self Discharge:	＜5% Per Month
Cell In Series/Parallel:	10S/5P

Chemical Formula:	Lithium Titanate Oxide
Nominal Voltage:	24V
Capacity:	6.5Ah
Energy:	156Wh
Resistance:	≤40mΩ
Efficiency:	0.98
Cycle Life:	＞10000cycles，Remaining Capacity＞80%
Self Discharge:	＜5% Per Month
Cell In Series/Parallel:	10S/5P

Description

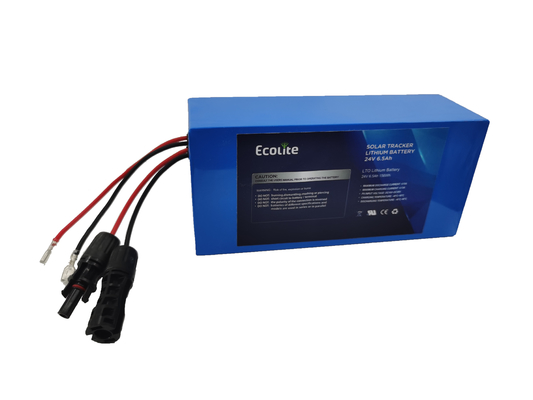

25.6V 6.5Ah 156Wh Lithium Titanate Battery Pack For Solar Tracking System

Ecolite 24V 6.5Ah Fast Charging Lithium Titanate LTO Battery Pack For Solar Tracker Integrate BMS

DETAILS

The 24V 6.5Ah LTO solar tracker battery features a light weight design,which renders the transportation and installation processes effortless. Its high energy density, rapid charging and discharging capabilities and good temperature resistance, endow it with outstanding advantages. This battery can perform charging and discharging operations within a temperature span stretching from minus 40°C to over 65°C.

FEATURES

ECOLTO2406 is designed with BMS and MPPT function,realizing real-time Monitoring & Control,including cell voltage,temperature,current,and state of charge.This product can be connected to MPPT and matched with the appropriate MPPT algorithm to better control the solar panels to receive solar energy.

Three views of product

25.6V 6.5Ah 156Wh Lithium Titanate Battery Pack For Solar Tracking System 0

Product specification

Lithium Titanate(LTO) ECOLTO2406(24V6.5Ah)

Electrical Parameters		Mechanical Parameters
Nominal Voltage	24V	Dimension(L×W×H)	225x105x75mm
Rated Capacity	6.5Ah	Dimension(L×W×H)	8.86x4.13x2.95"
Energy	156Wh	Weight	2.6kg
Resistance	≤ 40mΩ	Terminal Type	+,TE 2293255-1;-TE5-160526-9,MC4
Efficiency	0.98	Battery Housing	PVC
Cycle Life(25℃,1C/1C,100％DOD)	>10000cycles,Remaining capacity＞80％	Housing Protection	IP20
Self Discharge	5% per Month	Cell Type-Chemistry	LTO Cell
Cell in Series/Parallel	10S/5P	Communication(Optional)	UART(Voltage,Current,Temperature)
Discharge Parameters		Charge Parameters
Continuous Discharge Current	15A	MPPT Range	DC16V~DC36V
Pulse Discharge Current	40A (<1S)	Max.Input Current	8A
Recommended Volt. Disconnect	15V	BMS Charge Cut-off Voltage	28.5V
BMS Discharge Cut-off Voltage	17V
Reconnect Voltage	18V
Short Circuit Protection	200-500us
Temperature Parameters
Discharge Temperature	-40 to 65 ℃
Charge Temperature	-40 to 65 ℃
Storage Temperature	0 to 45℃
BMS High Temperature Cut-off	65 ℃
