Highlight:
24V lithium iron solar tracker battery
, 4.5Ah LFP battery with MPPT
, solar tracker battery integrated MPPT
Usage Scenario: |
Solar Tracker Battery |
Chemical Formula: |
Lithium Iron Phosphate |
Nominal Voltage: |
25.6V |
Rated Capacity: |
4.5Ah |
Energy: |
115.2Wh |
Resistance: |
≤60mΩ |
Cycle Life（25℃，1C/1C,100％DOD）: |
>2000cycles ,Remaining Capacity＞80％ |
Dimension(W×D×H): |
226x77x57mm |
Weight: |
1.6kg |
Terminal Type: |
+,TE 2293255-1;-,TE5-160526-9,MC4 |
Battery Housing: |
PVC |
Cell Type-Chemistry: |
LiFePO4 |
ECOLFP2404 24V 4.5Ah lithium iron LFP Solar tracker Battery Integrated MPPT Function
ECOLFP2404 24V 4.5Ah lithium iron LFP Solar tracker Battery Integrated MPPT Function
Product specification
Lithium Iron Phosphate(LFP) ECOLFP2404(25.6V4.5Ah)
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
25.6V |
Dimension(L×W×H) |
226x77x57mm |
| Rated Capacity |
4.5Ah |
8.90x3.03x2.24" |
| Energy |
115.2Wh |
Weight |
1.6kg |
| Resistance |
≤ 60mΩ |
Terminal Type |
+,TE 2293255-1;-,TE5-160526-9,MC4 |
| Efficiency |
0.98 |
Battery Housing |
PVC |
| Cycle Life(25℃,1C/1C,100％DOD) |
>2000cycles,Remaining capacity＞80％ |
Housing Protection |
IP20 |
| Self Discharge |
＜5% per Month |
Cell Type-Chemistry |
LiFePO4 Cell |
| Cell in Series/Parallel |
8S/3P |
Communication(Optional) |
UART(Voltage,Current,Temperature) |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
9A |
MPPT Range |
DC16V~DC36V |
| Pulse Discharge Current |
30A (<1S) |
Max.Input Current |
4.5A |
| Recommended Volt. Disconnect |
20V |
BMS Charge Cut-off Voltage |
29.6V |
| BMS Discharge Cut-off Voltage |
20V |
|
|
| Reconnect Voltage |
21.6V |
|
|
| Short Circuit Protection |
200-500us |
|
|
| Temperature Parameters |
|
|
| Discharge Temperature |
-20 to 65 ℃ |
|
|
| Charge Temperature |
0℃ to 60℃,Support heating |
|
|
| Storage Temperature |
0 to 25℃ |
|
|
| BMS High Temperature Cut-off |
65 ℃
|
Discover the ultimate power solution for your solar tracking systems with our high-performance 25.6V 4.5Ah Solar Tracker Lithium Iron Phosphate Battery. Engineered to meet the rigorous demands of renewable energy applications, this battery combines cutting-edge technology with outstanding reliability.
FEATURES
Lithium Iron Phosphate (LiFePO4) - The Safest Lithium Technology
At the heart of our solar tracker battery lies the lithium iron phosphate chemistry, renowned as the safest lithium technology available. Our in-house developed LiFePO4 cells provide exceptional thermal stability and chemical stability, minimizing the risk of thermal runaway and ensuring long-term safety even in the most demanding conditions. Say goodbye to concerns about overheating, combustion, or explosion, and embrace a worry-free power source for your solar tracking systems.
Integrated Battery Management System (BMS)
Our solar tracker battery is equipped with an advanced integrated Battery Management System (BMS) that acts as the brain of the battery, monitoring and controlling its performance in real-time. The BMS protects the battery from overcharging, over-discharging, over-current, and short circuits, extending its lifespan and ensuring optimal performance. It also provides accurate battery status information, allowing you to monitor the battery's health and make informed decisions about its usage.
Integrated MPPT Function
Maximize the efficiency of your solar tracking systems with our battery's integrated Maximum Power Point Tracking (MPPT) function. The MPPT algorithm continuously adjusts the operating point of the solar panels to ensure they are always operating at their maximum power output, even in changing weather conditions. This results in increased energy harvest and improved system performance, helping you get the most out of your solar investment.
Suitable for Solar Tracking Systems
Designed specifically for solar tracking systems, our 25.6V 4.5Ah battery offers seamless integration and optimal performance. Its compact size and lightweight design make it easy to install and transport, while its high-density construction provides a large energy storage capacity in a small footprint. Whether you're using a single-axis or dual-axis solar tracker, our battery is the perfect power solution to keep your system running smoothly and efficiently.
Supports a Five-Year Warranty
We stand behind the quality and reliability of our solar tracker battery, which is why we offer a comprehensive five-year warranty. Our warranty covers defects in materials and workmanship, giving you peace of mind and confidence in your purchase. If you experience any issues with your battery during the warranty period, simply contact our customer support team, and we'll be happy to assist you.
PERFORMANCE
Long Cycle Life
With a long cycle life of over 2000 cycles and a remaining capacity of over 80% at 25°C, 1C/1C, 100% DOD, our solar tracker battery offers exceptional durability and longevity. It can withstand repeated charging and discharging cycles without significant capacity loss, ensuring reliable performance for years to come. Whether you're using your solar tracking system in a residential, commercial, or industrial setting, our battery is designed to meet your energy storage needs.
High Density, High Discharge Current
Our battery's high-density construction allows it to store a large amount of energy in a small space, making it ideal for applications where space is limited. It also features a high discharge current, enabling it to deliver a large amount of power quickly when needed. This makes it suitable for a wide range of applications, including solar tracking systems, off-grid power systems, electric vehicles, and more.
High Temperature Range
Our solar tracker battery is designed to operate in a wide temperature range, from -20°C to 60°C, making it suitable for use in harsh environments. Its advanced thermal management system ensures that the battery stays within its optimal operating temperature range, even in extreme conditions. This helps to extend the battery's lifespan and ensure reliable performance in any climate.
Low Weight, Free Maintenance
Thanks to its lightweight design, our solar tracker battery is easy to install and transport, reducing installation costs and time. It also requires no maintenance, eliminating the need for regular checks and replacements. This makes it a hassle-free and cost-effective power solution for your solar tracking systems.
Fast Charging
Our battery supports fast charging, allowing you to recharge it quickly and efficiently. This means you can spend less time waiting for your battery to charge and more time using your solar tracking system. Whether you're using a solar charger, a wind turbine, or a grid-connected charger, our battery can be charged quickly and easily.
Environment Friendly
Our solar tracker battery is an environmentally friendly power solution that produces zero emissions during operation. It helps to reduce your carbon footprint and contribute to a cleaner, greener future. By choosing our battery, you're not only investing in a reliable and high-performance power source but also making a positive impact on the environment.
Invest in the future of renewable energy with our 25.6V 4.5Ah Solar Tracker Lithium Iron Phosphate Battery. With its unrivaled features, exceptional performance, and five-year warranty, it's the perfect power solution for your solar tracking systems. Contact us today to learn more about our battery and how it can help you achieve your energy goals.

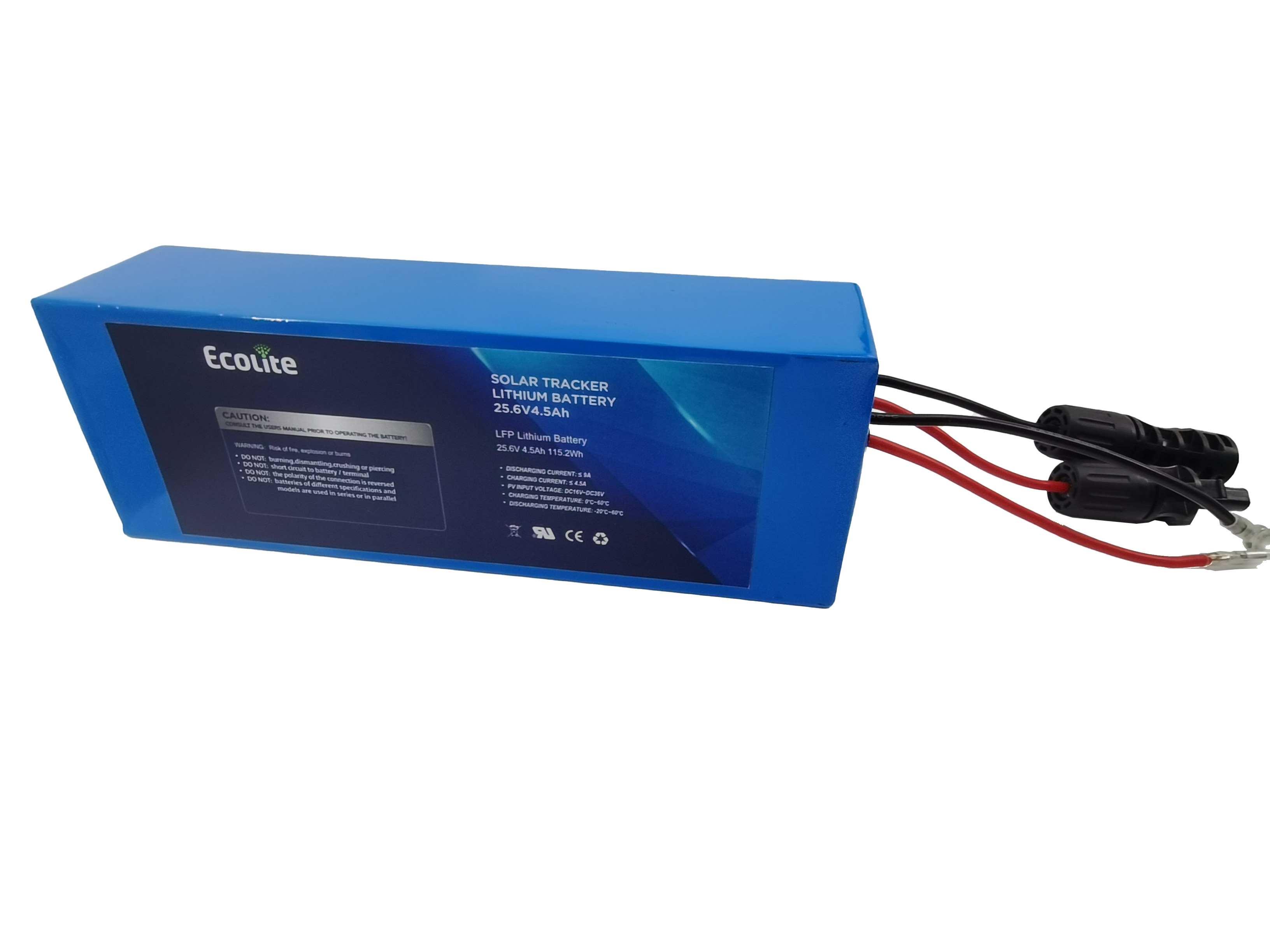

Three views of product
