ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range

Name: ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO2406
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: ECOLTO2406

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          24V LiFePO4 solar tracker battery, 6Ah high temperature solar battery, LiFePO4 battery for solar tracker


Usage Scenario:	Solar Tracker Battery	Chemical Formula:	Lithium Iron Phosphate
Battery Voltage:	25.6V	Capacity:	6Ah
Energy:	153.6Wh	Resistance:	≤50mΩ
Efficiency:	0.98	Discharge Temperature:	-20℃ To 65℃
Charge Temperature:	-20℃ To 60℃	Storage Temperature:	0℃ To 25℃
BMS High Temperature Cut-off:	65℃

Usage Scenario:	Solar Tracker Battery
Chemical Formula:	Lithium Iron Phosphate
Battery Voltage:	25.6V
Capacity:	6Ah
Energy:	153.6Wh
Resistance:	≤50mΩ
Efficiency:	0.98
Discharge Temperature:	-20℃ To 65℃
Charge Temperature:	-20℃ To 60℃
Storage Temperature:	0℃ To 25℃
BMS High Temperature Cut-off:	65℃

Description

ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range

Product specification

Lithium Iron Phosphate(LFP) ECOLFP2404(25.6V6Ah)

Electrical Parameters		Mechanical Parameters
Nominal Voltage	25.6V	Dimension(L×W×H)	192x86x75mm
Rated Capacity	6Ah	Dimension(L×W×H)	7.56x3.39x2.95"
Energy	153.6Wh	Weight	1.9kg
Resistance	≤ 50mΩ	Terminal Type	+,TE 2293255-1;-,TE5-160526-9,MC4
Efficiency	0.98	Battery Housing	PVC
Cycle Life(25℃,1C/1C,100％DOD)	>2000cycles,Remaining capacity＞80％	Housing Protection	IP20
Self Discharge	＜5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	8S/4P	Communication(Optional)	UART(Voltage,Current,Temperature)
Discharge Parameters		Charge Parameters
Continuous Discharge Current	12A	MPPT Range	DC16V~DC36V
Pulse Discharge Current	40A (<1S)	Max.Input Current	6A
Recommended Volt. Disconnect	20V	BMS Charge Cut-off Voltage	29.6V
BMS Discharge Cut-off Voltage	20V
Reconnect Voltage	21.6V
Short Circuit Protection	200-500us
Temperature Parameters
Discharge Temperature	-20 to 65 ℃
Charge Temperature	0℃ to 60℃
Storage Temperature	0 to 25℃
BMS High Temperature Cut-off	65 ℃

Power your solar tracking systems with confidence using our 25.6V 6Ah Solar Tracker Lithium Iron Phosphate Battery. Crafted with our self-developed LiFePO4 cells, it offers superior safety, reliability, and performance.

FEATURES
Lithium Iron Phosphate (LiFePO4): Our proprietary LiFePO4 cells ensure top-notch safety with high thermal and chemical stability, minimizing risks.
Integrated BMS: Monitors and protects against overcharging, discharging, and short circuits for extended lifespan.
Integrated MPPT: Maximizes solar panel efficiency, optimizing energy harvest.
Tailored for Solar Trackers: Compact, lightweight, and easy to integrate, it fits single or dual-axis systems.
Five-Year Warranty: We stand by our product's quality with a comprehensive guarantee.

PERFORMANCE
Long Cycle Life: Over 2000 cycles with 80% capacity retention at 25°C, 1C/1C, 100% DOD.

High Density & Discharge Current: Stores more energy in a small space and delivers quick power.
Wide Temperature Range: Operates from -20°C to 60°C, ideal for harsh conditions.
Low Weight & Maintenance-Free: Easy installation and no upkeep required.
Fast Charging: Recharges quickly for uninterrupted use.
Eco-Friendly: Zero emissions for a sustainable energy solution.
Choose our 25.6V 6Ah Solar Tracker Lithium Iron Phosphate Battery for a reliable, high-performing power source. Contact us to learn more.

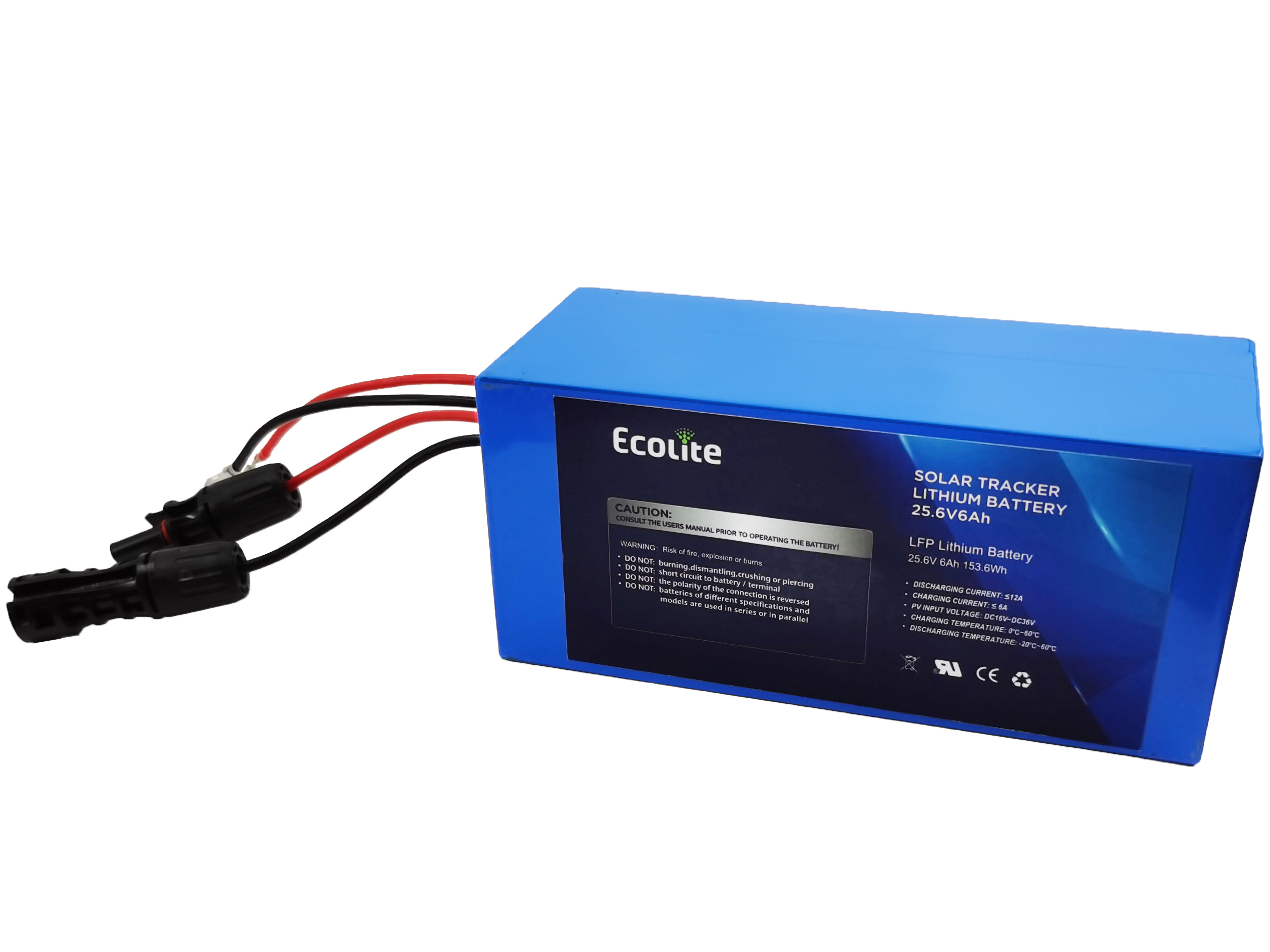

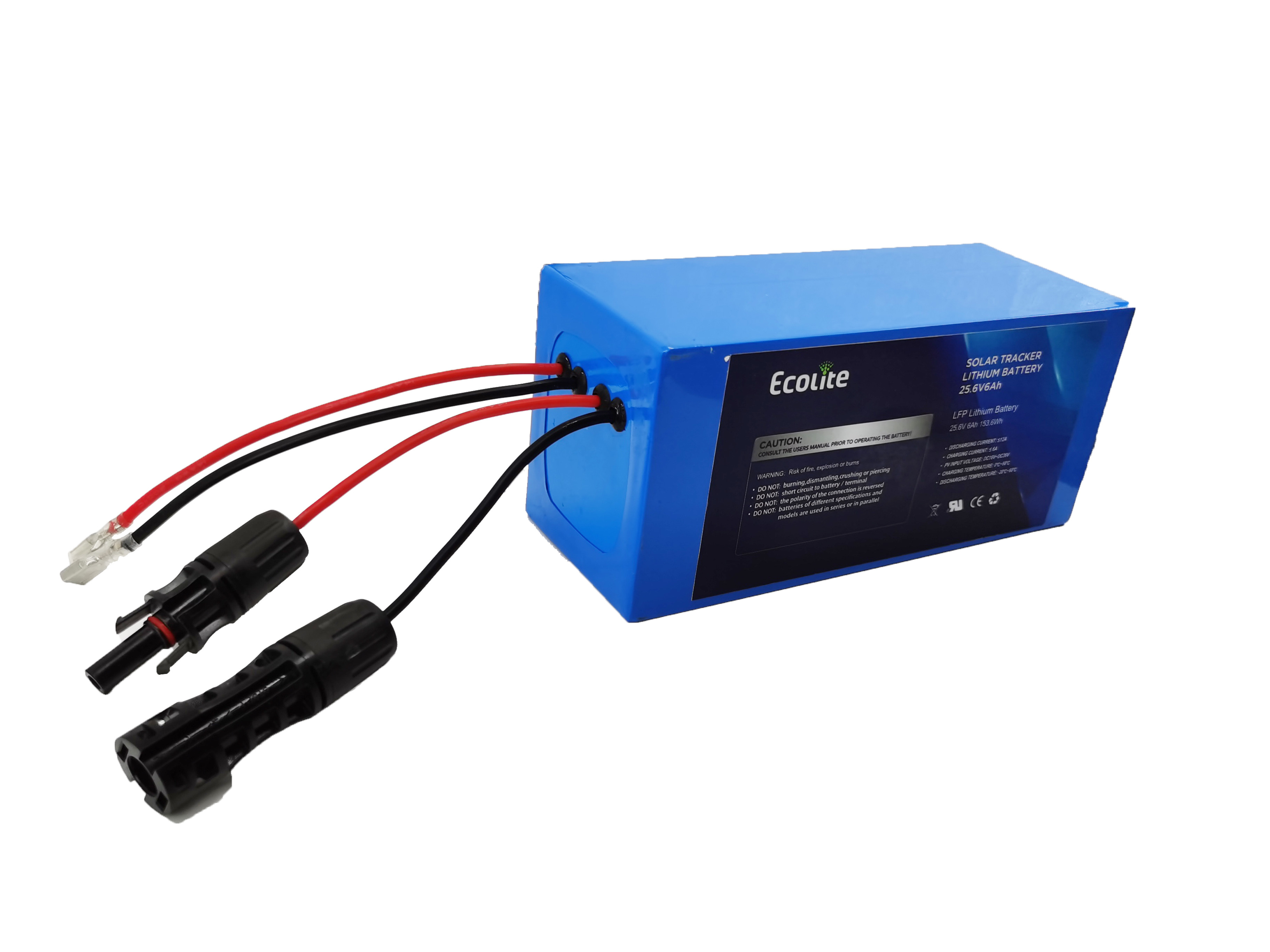

Three views of product
ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range 0
