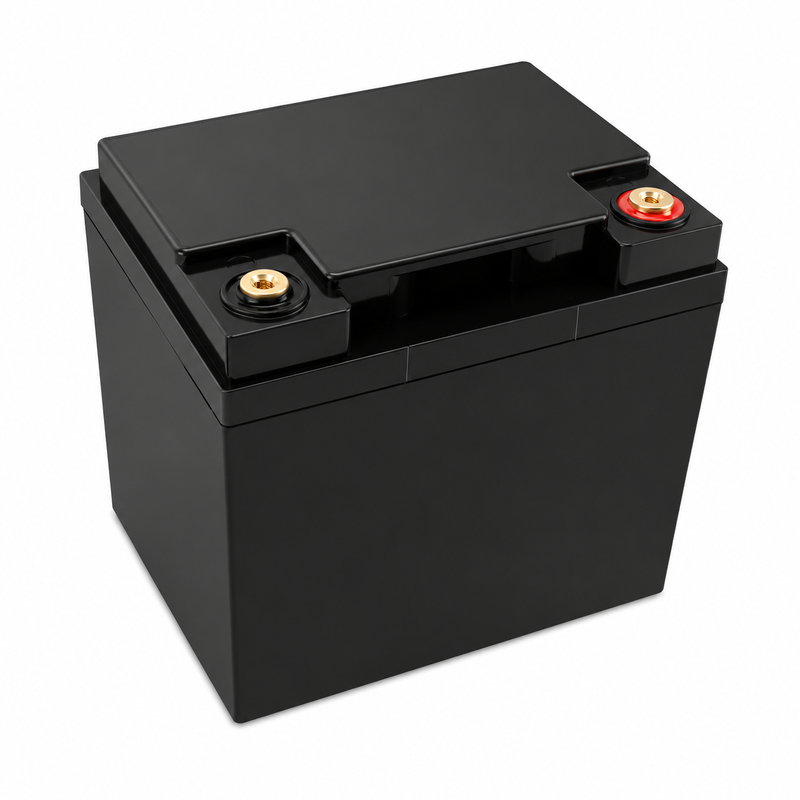

12.8V 200Ah LiFePO4 RV Battery 3000W Inverter High Rate Discharge 2560Wh

Product Overview

This 12.8V 200Ah LiFePO4 battery is engineered for RV owners running 3000W inverters, rooftop air conditioners and high-power appliances. With 200A continuous discharge capability, it powers the most demanding off-grid loads without voltage sag or BMS shutdown.

Core Selling Point: High Rate Discharge for Heavy Loads

• 200A continuous discharge: powers 3000W inverters steadily
• 400A pulse: handles AC compressor startup surge
• 2560Wh energy: extended runtime for boondocking
• 4000 cycle life: 10+ years of daily use
• High-temp tolerant: operates to 65 degrees C

Technical Specifications

Discharge Characteristics

Charging Parameters

High Rate Discharge vs Standard Battery

Dimension Options (Reference)

Smart BMS Protection

Packaging & Shipping

Why Choose High Rate Discharge for RV

Modern RVs increasingly run rooftop air conditioners, induction cooktops, electric kettles and high-wattage inverters - loads that demand sustained high current. Standard 100A batteries trip their BMS under these loads, cutting power at the worst moment. This 200Ah high-rate battery delivers 200A continuously and 400A pulses, powering a 3000W inverter with margin for AC compressor startup surge. Boondockers can run comfort appliances without generator noise.

Application Case Study

Case: Desert Boondocking with AC
A family of four boondocks in the Arizona desert for weeks at a time, running a 13,500 BTU rooftop AC through a 3000W inverter. This 200Ah high-rate battery powers the AC for 4-6 hours per charge cycle, recharges fully from solar in one sunny afternoon, and has completed 600+ cycles with no performance loss.

Understanding Continuous vs Peak Discharge Ratings

Many drop-in batteries advertise impressive peak currents but cannot sustain them. This 200Ah battery is rated for a true 200A continuous discharge - about 2560W at 12.8V - which is the figure that matters when running a 3000W inverter at realistic duty cycles. Continuous rating means the battery can hold that current indefinitely without the BMS tripping or the pack overheating, not merely for a few seconds.

The 400A peak rating (about 5120W for 3 seconds) covers the inrush surge of rooftop air conditioners and refrigerator compressors, which draw 3-5 times their running current at startup. Between the continuous and peak ratings, this battery delivers the headroom that high-power RV appliances demand, without the voltage sag that causes inverter low-voltage alarms on lesser packs.

Powering 3000W Inverters and Roof Air Conditioners

A 3000W inverter connected to this battery can run a 13.5K BTU roof air conditioner (about 1800W running / 3500W surge), an induction cooktop (1800W), a microwave (1000W) or an electric kettle (1500W) - individually or in sensible combinations. The 2560Wh energy reserve translates to roughly 45 minutes of full 3000W load, or 6-10 hours of typical mixed use with an AC cycling on and off.

For sustained AC operation, pair the battery with solar or a generator recharge source: at 200A charge acceptance it replenishes from a 60A charger in about 3.5 hours, or from a high-output alternator even faster. This makes the battery suitable for boondocking in hot climates where air conditioning is not optional.

Parallel Expansion for Larger Systems

When 200Ah is not enough, up to four batteries can be connected in parallel to form an 800Ah / 10.2kWh bank with 800A continuous capability - sufficient to run two roof AC units plus a residential fridge. The batteries share load automatically through their matched internal resistance, and each pack's BMS protects its own cells independently.

Parallel wiring is straightforward: connect all positive terminals to a common busbar and all negative terminals to a common busbar, using cable of adequate gauge for the combined current. No special synchronizing module is required because LiFePO4 packs in parallel self-balance during charging and discharging. Keep cable lengths equal between packs for even current sharing.

Frequently Asked Questions

Q1: Can this battery power my rooftop AC?
A: Yes, with a 3000W inverter it handles the AC's running load and startup surge reliably.

Q2: How long does it run a 3000W inverter?
A: At full 3000W load, approximately 45 minutes; at typical 800-1500W mixed loads, 2-4 hours.

Q3: Can I connect two in parallel for more power?
A: Yes, up to 4 batteries in parallel (800Ah, 400A continuous) for larger systems.

Q4: What is the warranty?
A: 3-year comprehensive warranty.

Contact us today for a quotation and technical consultation for your high-power RV system.
