RV Lithium Battery Voltage: 12.8V

Rated Capacity: 620Ah

Energy: 7936Wh

Housing Protection: IP65

Communication: Bluetooth,Can, RS485

Cycle Life: >8000cycles @0.5C/0.5C,100% DOD

OEM/ODM: Accpted

Discharge Temperature: -20℃ To 60℃

Charge Temperature: 0℃ To 60℃

Basic Infomation

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LFP12-600

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C,T/T

Supply Ability: 5000 Units per month

Gallery

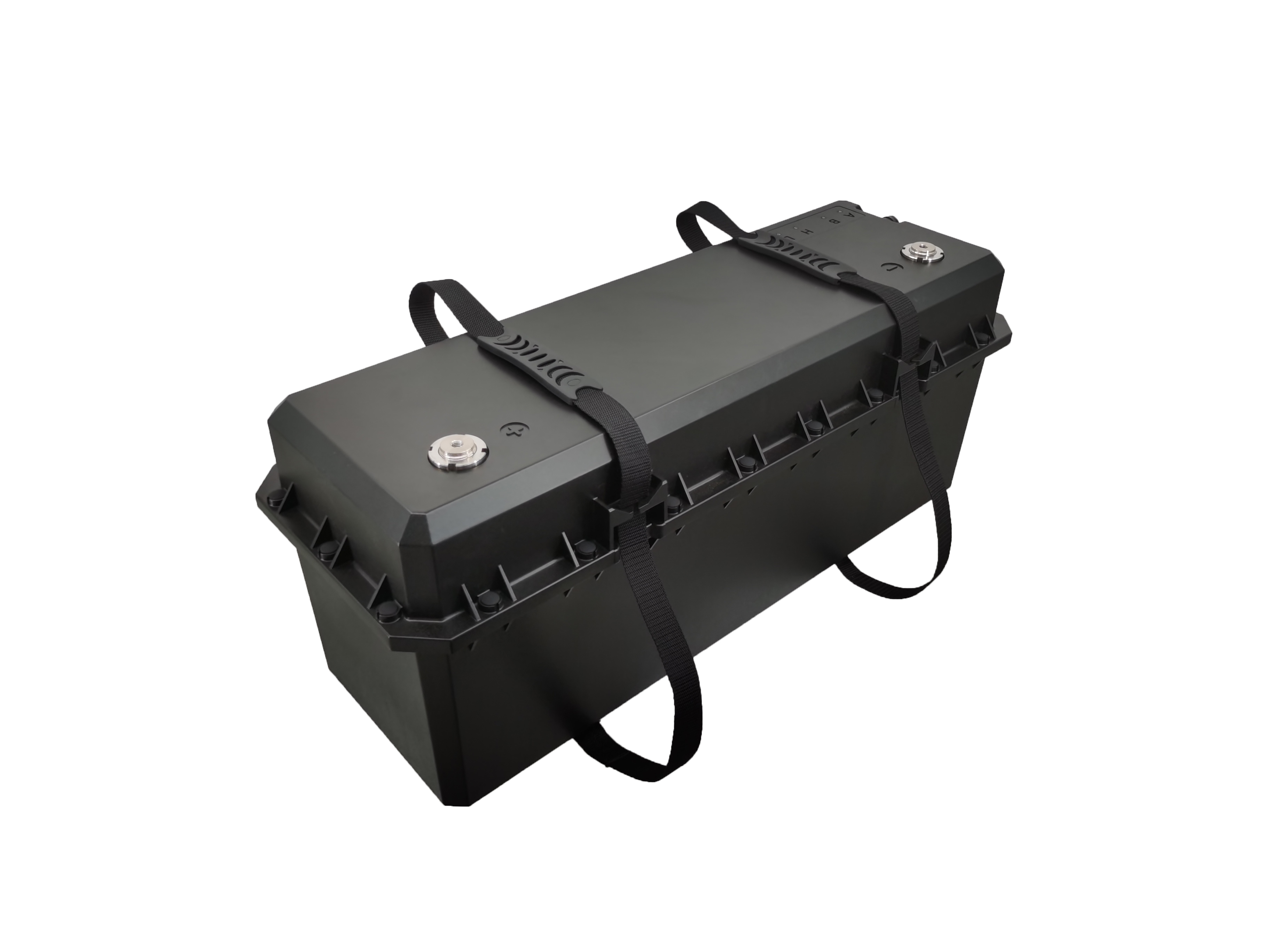

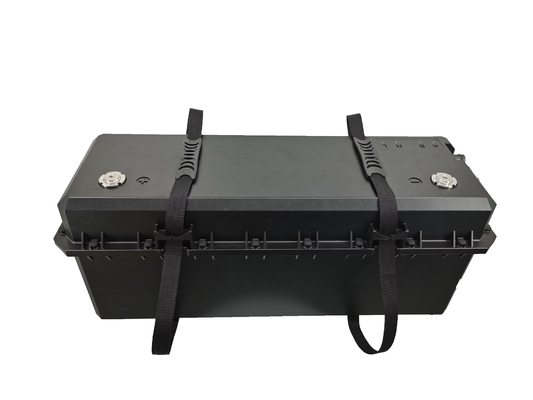

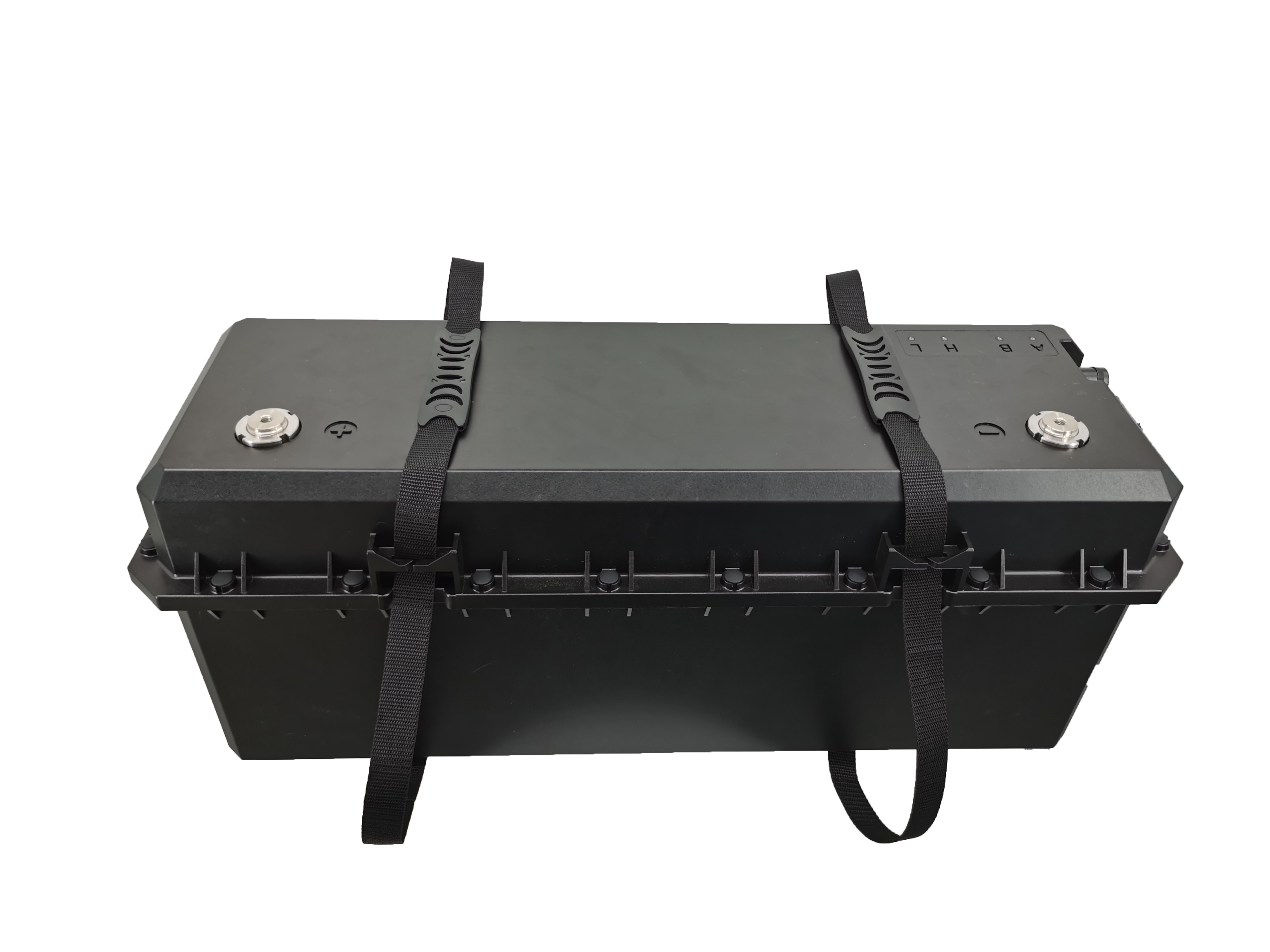

Lithium RV Battery12.8V620Ah Deep Cycle LiFePO4 Battery For Caravan

Product Description

Lithium RV Battery 12.8V620Ah Deep Cycle LiFePO4 Battery For Caravan

Our ECOLITE RV lithium battery engineered for adventurers and off-grid enthusiasts, our high-capacity RV lithium batteries provide reliable, long-lasting energy storage. Perfect for RVs, marine use, and solar systems, they outperform traditional lead-acid batteries with faster charging, deeper discharges, and a decade-long lifespan.

Specification

Electrical Parameters
Lithium RV battery voltage	12.8V
Rated Capacity	620Ah
Nominal Energy	7936Wh
Internal Resistance	≤15mΩ
Efficiency	≥0.98
Cycle Life	>8000cycles @0.5C/0.5C,100% DOD
Self Discharge	<3% per Month
Cell in Series,Parallel	4S/2P

Mechanical Parameters
Dimension(LxWxH)	690x250x280mm
Dimension((LxWxH)	21.17x9.84x11.02''
Weight	55Kg
Terminal Type	M8
Battery Housing	PPE
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth,CAN, RS485

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	300A
Maximum Charge Current	350A
BMS Charge Cut-off Voltage	29.2V

Discharge Parameters
Continuous Discharge Current	200A
Pulse Discharge Current	300A(<1S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	100-400us

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 60℃
Storage Temperature	-10℃ to 35℃
BMS High Temperature Cut-off	65℃

RV Lithium Battery Features:

Lithium Iron Phosphate(LiFePO4)

The Safest Lithium Technology.

Integrated Battery Management System(BMS)

Maximum support 4S4P.

Perfromance:

Flexible Capacity: Choose from 100Ah to 400Ah – or combine units for custom configurations.

Expandable Design: Supports both series and parallel connections for flexible expansion.

Long Service Life: Over 8000 cycles at 80% DOD, greatly outlasting traditional lead-acid batteries.

Superior Safety: Built with LiFePO4 chemistry – stable, non-toxic, and resistant to thermal runaway.
Maintenance-Free: No acid, no water refills, and no corrosion – just plug and play.
Lightweight & Compact: Easier to install and transport than bulky lead-acid counterparts.
Fast Charging: Compatible with solar, AC chargers, and alternators – charge more efficiently.
Long Runtime: High energy density provides extended power for longer trips or backup use.
Perfect Replacement for Lead-Acid: Drop-in design makes upgrading seamless.

ECOLITE deep-cycle RV batteries are designed for steady, sustained power output over long periods, making them ideal for operating your recreational vehicles’ appliances such as lights, air conditioners and TVs. If you’re experiencing rapid drainage with your devices, upgrade to deep-cycle batteries designed to perform efficiently in extreme temperatures and offer strong, reliable performance to power devices and bring the comforts of home to the great outdoors and off-grid living, whether the RV motor is on or off.
