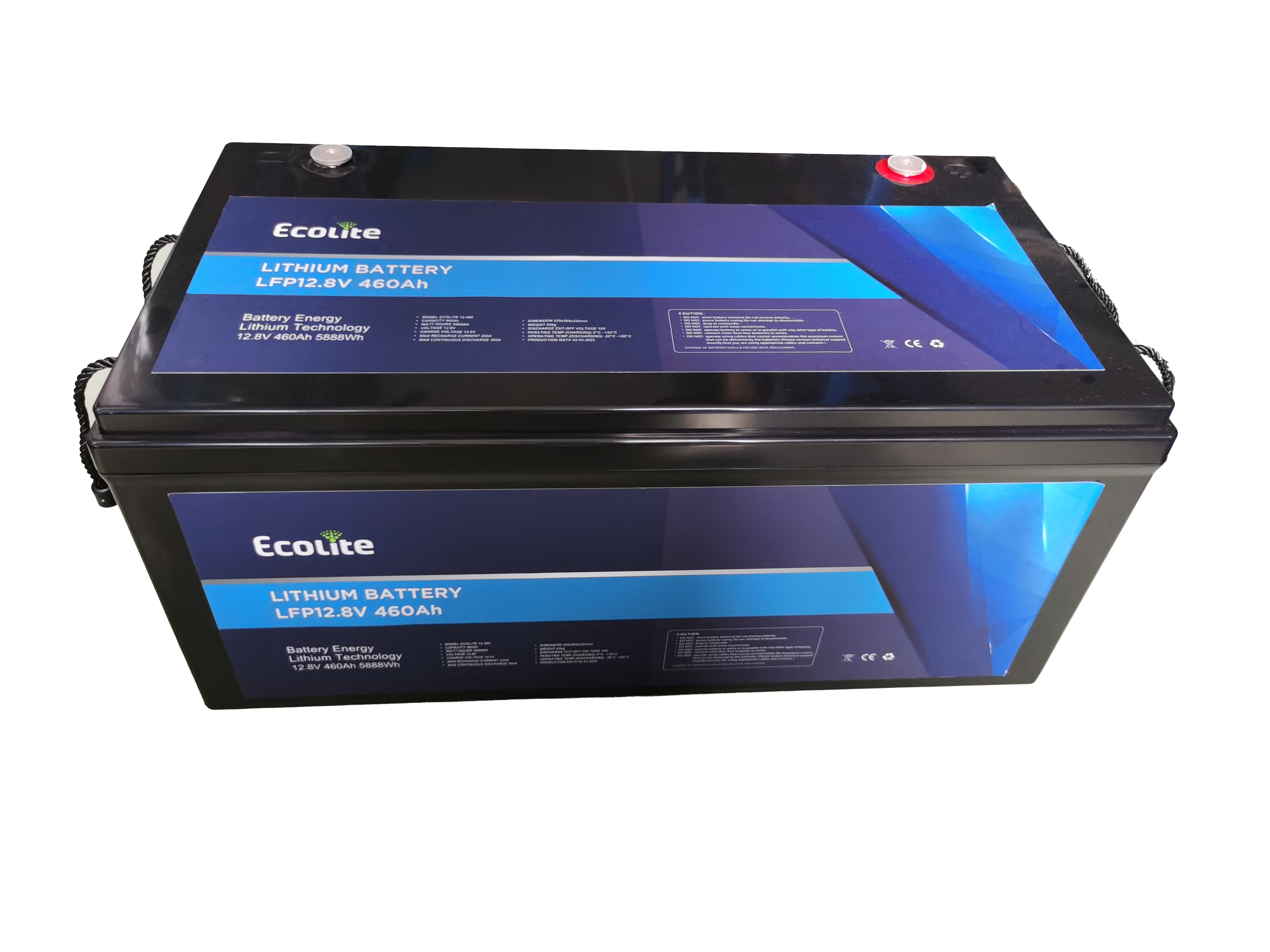

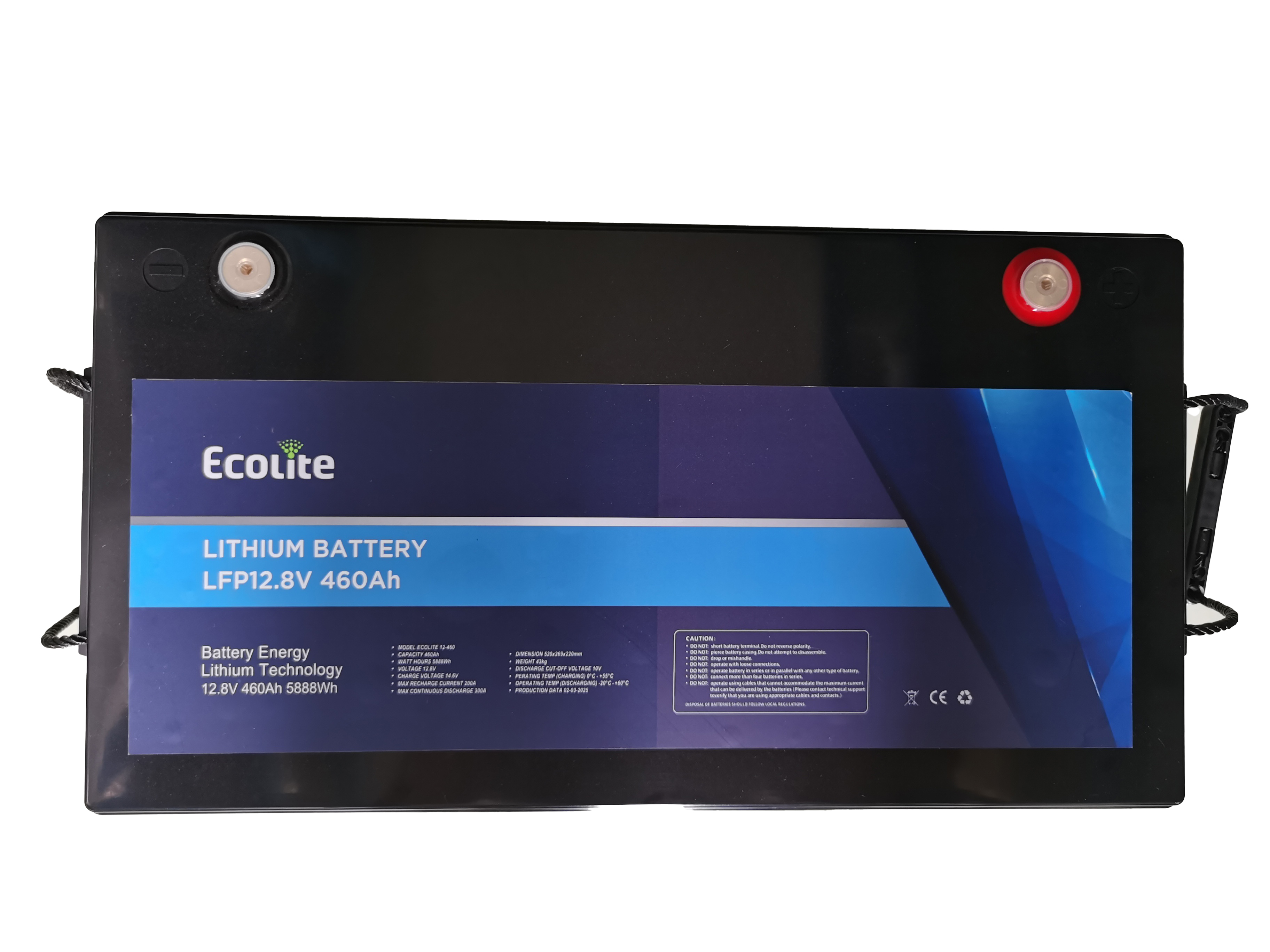

Customized Light Weight 12.8V 460Ah LiFePO4 RV Lithium Battery integrated BMS
APPLIANCE
LFP12-460 can be used in marine, RV, household or commercial energy storage equipment. The product has a wide range of adaptability and is safe and convenient to use. The lithium-ion raw material has better charging and discharging efficiency than traditional lead-acid batteries.
PRODUCT FRATURE
Adopts Lithium Iron Phosphate (LiFePO4) chemistry, recognized as the safest lithium technology, and integrates
a Battery Management System (BMS) for reliable protection and performance optimization.
Supports flexible configuration with up to 4 batteries in series or 4 in parallel, adapting to diverse power needs.
PERFORMANCE
Exceptional Longevity: Boasts a cycle life of over 6000 cycles with remaining capacity exceeding 80% under conditions of 25°C, 0.5C charge/discharge, and 100% Depth of Discharge (DOD).
High-Efficiency Output: Features high energy density (5888Wh) and strong discharge capability, with a continuous discharge current of 350A and pulse discharge current of 450A (for less than 1 second).
Versatile and Convenient: Operates across a wide temperature range, is lightweight, maintenance-free, supports fast charging, and is environmentally friendly, making it ideal for RV applications.
SPECIFICATION
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
12.8V |
Dimension(WxDxH) |
520x269x220mm |
| Rated Capacity |
460Ah |
Dimension(WxDxH) |
20.47''x10.59''x8.66'' |
| Energy |
5888Wh |
Weight |
43kg |
| Resistance |
≤15mΩ |
Terminal Type |
M8 |
| Efficiency |
≥0.98 |
Battery Housing |
ABS |
| Cycle Life |
>6000cycles @(25℃,0.5C/0.5C,100%DOD,Remaining capacity＞80%) |
Housing Protection |
IP65 |
| Self Discharge |
<5% per Month |
Cell Type-Chemistry |
LiFePO4 Cell |
| Cell in Series/Parallel |
4S/2P |
Communication |
Bluetooth |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
350A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
450A(<10S) |
Charge Voltage |
14.2-14.6V |
| Recommended Volt. Disconnect |
10V |
Recommended Float Voltage |
13.3~13.4V@100% |
| BMS Discharge Cut-off Voltage |
10V |
Recommended Charge Current |
230A |
| Reconnect Voltage |
10.8V |
Maximum Charge Current |
350A |
| Short Circuit Protection |
100-400uS |
BMS Charge Cut-off Valtage |
14.8V |
| Temperature Parameters |
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 60℃ |
| Storage Temperature |
-10℃ to 35℃ |
| BMS High Temperature Cut-off |
65℃ |
The LFP12-460 is the perfect lithium battery for RVers looking for dependable, long-lasting power. With 460Ah of capacity, it provides steady energy for your appliances, lights, and electronics, ensuring you stay powered whether you're off-grid or at a campsite. Lightweight, maintenance-free, and built with safe LiFePO4 chemistry, the LFP12-460 delivers superior performance and peace of mind on every journey.
Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.
Q: what is the warranty
A: 1year
Q: what is the lead time ?
A: Depends on your quantity
Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C
Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request
Q: accept OEM order ?
A: 100% customized solution for you .
