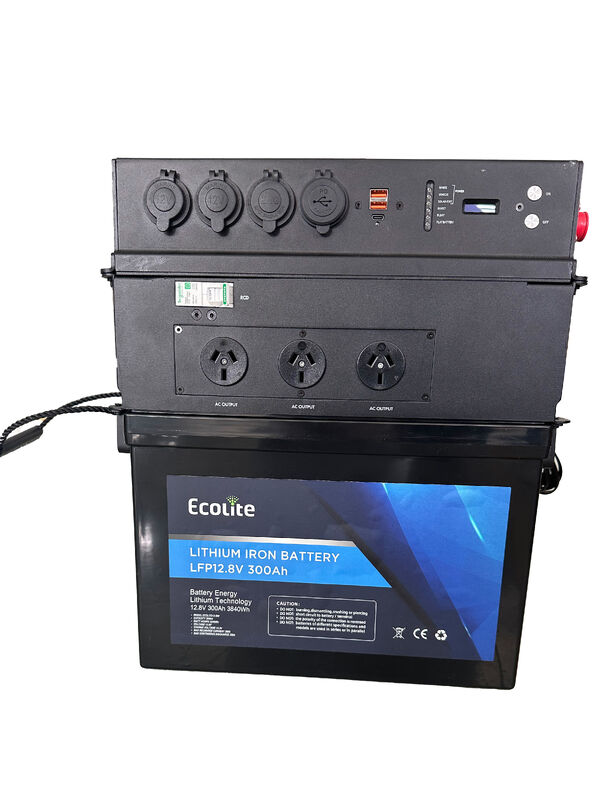

Portable Power Station 12.8V 300Ah 3840Wh 1200W Inverter LiFePO4 RV Camping

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C,T/T

Supply Ability: 50000pcs

Get Best Price
Contact Now
Specifications
Highlight:

Portable Power Station LiFePO4 battery

,

RV camping power station 3840Wh

,

12.8V lithium battery with inverter

Usage Scenario:
RV/Indoor/outdoor
Capacity:
300Ah
Size(L×W×H):
387×206.5×409mm
Weight:
32kg
Energy:
3840Wh
Nominal Voltage:
12.8V
Cut-off Voltage:
10V
Working Temperature:
-20℃ To 60℃
Charging Temperature:
0℃~+55℃
Charging Mode:
CC/CV
Charging Voltage:
14.2V~14.6V
Usage Scenario:
RV/Indoor/outdoor
Capacity:
300Ah
Size(L×W×H):
387×206.5×409mm
Weight:
32kg
Energy:
3840Wh
Nominal Voltage:
12.8V
Cut-off Voltage:
10V
Working Temperature:
-20℃ To 60℃
Charging Temperature:
0℃~+55℃
Charging Mode:
CC/CV
Charging Voltage:
14.2V~14.6V
Description
Portable Power Station 12.8V 300Ah 3840Wh 1200W Inverter LiFePO4 RV Camping

Portable Power Station 12.8V 300Ah 3840Wh 1200W Inverter LiFePO4 RV Camping


This portable power station combines a 12.8V 300Ah 3840Wh LiFePO4 battery, a 1200W pure sine wave inverter, and versatile charging inputs in a compact 32kg package. With three AC outlets, multiple DC and USB ports, and a smart monitoring display, this portable power station is the all‑in‑one energy solution for camping, RV, marine, and home backup use.


Specifications

Battery parameters Standard
Rated Capacity 300Ah/3840Wh
Nominal Voltage 12.8V
Cut-off Voltage 10V
Max.Discharge Current 250A Continuous
Maximum Charging Current 200A per Battery
Working Temperature -20℃ to 60℃
Charging Mode CC/CV
Charging Voltage 14.2V-14.6V
Standby/Float Voltage 13.3V~13.4V@100%
Charging Temperature 0℃~+55℃


Connector And Display
DC Input Anderson 50A(Blue) Alterator,DC11.5~DC32V,Max30A

Anderson 50A(Red) Solar,DC14V-DC50V,Max30A
DC Output Anderson 120A(Grey) DC10~DC14.6V,Max120A

M8 terminal post DC10-DC14.6V,Max200A

CigaSocketr(x2) DC10-DC14.6V,Max10A

Engle Socket(x1) DC10-DC14.6V,Max10A

USB-C PD3.0(x2) 5V3A,9V-3A.12V-2.25A.Max27W

USB-A QC3.0(x2) 5V3A,9V-2A,12V-1.5A,Max18W

USB-C PD3.0(x1) 5V3A,9V-3A,12V-3A.15V-3A.20V-3A,Max60W
AC Output AC(x3) AC120V,60Hz,1200W
Other 2P Wiring Terminal lgnition
Dispaly LED Indicator Light Fullycharged/Solar /AlternatoroveroltageUndervoltage/overcurrent
AC Output Display Screen Voltage/CurentSOC/Alarm Information



Other parameters
Size(L*W*H) 387x206.5x409mm
Weight 32Kg


Core Specifications of This Portable Power Station
This portable power station features a 12.8V 300Ah LiFePO4 battery with 3840Wh of stored energy. This portable power station delivers 1200W continuous AC output (2000W surge) through a pure sine wave inverter. This portable power station has a nominal voltage of 12.8V and a discharge cut‑off of 10V. Continuous discharge current of this portable power station is 250A, with maximum charging current of 200A. This portable power station operates from -20°C to 60°C and charges from 0°C to 55°C. Dimensions of this portable power station are 387 by 206.5 by 409mm, weighing 32 kilograms.

AC Output of This Portable Power Station
This portable power station provides three AC 120V 60Hz outlets with 1200W continuous power and 2000W surge capacity. The pure sine wave output of this portable power station protects sensitive electronics like laptops, TVs, and medical devices. This portable power station runs refrigerators, fans, lights, power tools, and communication equipment without risk of damage from modified sine wave distortion.

DC and USB Connectivity on This Portable Power Station
This portable power station includes a grey Anderson 120A connector for high‑current DC loads. M8 terminal posts on this portable power station handle up to 200A for heavy‑duty connections. This portable power station features two lighter sockets and one Engle socket (10A each) for 12V accessories. USB ports on this portable power station include two USB‑C PD3.0 (27W max each), one USB‑C PD3.0 (60W max), and two USB‑A QC3.0 (18W max) for fast charging phones, tablets, and laptops. A 2‑pin ignition terminal is also available on this portable power station.
