Ultra Slimline RV Lithium Battery 12.8V200Ah For Camper Off-Road Vehicle With BMS

Name: Ultra Slimline RV Lithium Battery 12.8V200Ah For Camper Off-Road Vehicle With BMS
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: SLIMLINE200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: SLIMLINE200

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 3000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ultra Slimline RV Lithium Battery, 12.8V200Ah Camper Lithium Battery, RV Lithium Battery with BMS


RV Lithium Battery Voltage:	12.8V	Rated Capacity:	200Ah
Energy:	2560Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In SeriesParallel:	4S/2P

RV Lithium Battery Voltage:	12.8V
Rated Capacity:	200Ah
Energy:	2560Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In SeriesParallel:	4S/2P

Description

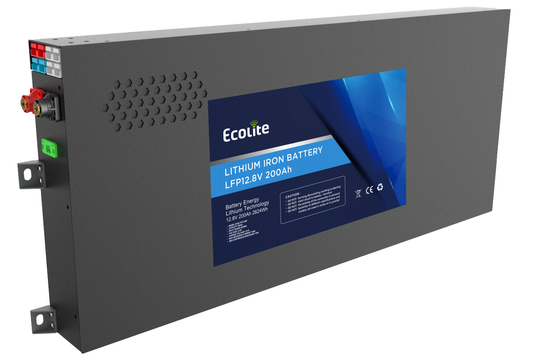

Ultra Slimline RV Lithium Battery 12.8V200Ah For Camper Off-Road Vehicle With BMS

The ECOLITE slimline LiFePO4 RV battery rechargeable batteries have been specifically designed for the replacement of similar size lead-acid batteries. The family is comprised of the popular size found in the lead-acid range but with the added benefits of lithium Iron phosphate ( LiFePO4) technology and is ideally suited to deep cycle longer run time applications.

Specification

SLIMLINE 200SS( 12.8V200Ah)
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(W×H×D) Including installation feet	758x335x70mm
Rated Capacity	200Ah		29.84 x13.19x 2.76''
Energy	2580Wh	Weight	26.5kg
Resistance	≤30mΩ	Terminal Type	Reference connector parameters
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life(25℃, 0.5C/1C)	>6000cycles @70%DOD	Housing Protection	IP30
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	/
Reconnect Voltage	10.8V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	14.8V

Connector		Temperature Parameters
Anderson 50A(Blue)	Alternator ,DC11.5~16V,Max40A	Discharge Temperature	-30℃ to 60 ℃
Anderson 50A(Red)	Solar ,DC11.5~DC50V ,Max40A	Charge Temperature	0 ℃t o 60 ℃℃
Anderson 120A(Grey)	DC10~DC14.6V,Max100A	Storage Temperature	-30℃ to 60 ℃
2P Wiring Terminal	Lgnition	BMS High Temperature Cut-off	65℃

Ultra Slimline RV Lithium Battery 12.8V200Ah For Camper Off-Road Vehicle With BMS 0

The SLIMLINE 200Ah sampling lithium iron phosphate battery, with a built-in intelligent BMS, features long life, lightweight, high discharge current, wide temperature range, fast charging, maintenance-free operation, and safety and environmental friendliness. It also features a variety of charging and discharging interfaces, supporting charging from vehicle generators, photovoltaic panels, and mains power, making it a simpler and more convenient multi-functional power source.

Performance

A large number of cycles>6000 (70% DOD)
Greater capacity utilization
High energy density
Fast recharge battery is charged and ready to be used sooner
Flat discharge Curve longer run time & more efficient use of capacity
Extremely low self-discharge rate

Key Features

Ultra Slim Design: With a depth of only 60mm, this battery is perfect for tight installations without compromising storage space for your gear.

High Capacity: A robust 200Ah capacity (2580Wh) ensures ample energy for extended off-grid adventures, power-hungry applications, and demanding setups.
Bluetooth Connectivity: Monitor battery performance, state of charge, and health in real time directly from your smartphone.
Advanced Lithium Iron Phosphate (LiFePO4) Technology: Delivers exceptional longevity, safety, and reliability compared to traditional lead-acid batteries.
Durable and Adventure-Ready: Built to endure the rigors of off-road travel, marine environments, and harsh conditions.
Efficient Space Utilization: Perfect for mounting on walls, behind seats, or in canopy setups, liberating valuable space for your tools, equipment, and gear.

Applications
Off-Grid Living: Power lights, appliances, and tools in remote locations while maximizing storage space.
4×4 and Overlanding: Designed to fit behind the rear seats of 4×4 cabs, it powers fridges, lights, and essential electronics without compromising gear space.
Canopy and RV Installations: Mount it on canopy walls or storage compartments for an organized and efficient energy solution.
