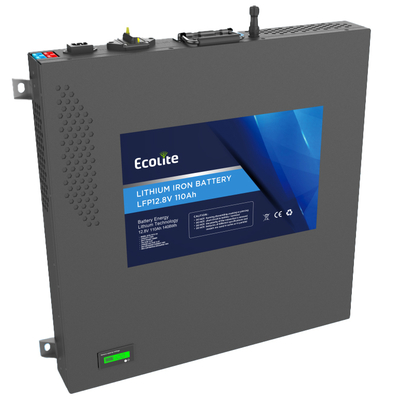

Slimline Max 12.8V 110Ah RV Lithium Battery Pack Integrated Inverter For Pickup Truck
PRODUCT FEATURES:
Built with Lithium Iron Phosphate (LiFePO4) cells and an integrated intelligent BMS, ensuring safety and reliability.
Compact design (585x540x75mm) and lightweight (22Kg), perfectly fitting small battery compartments behind seats in pickup trucks and modified vehicles.
Equipped with built-in AC/DC and DC/DC charging modules, supporting three charging methods: car generators, solar panels, and AC power sources for convenient charging.
Integrated 1200W inverter eliminates the need for an external inverter, directly powering AC loads.
Multiple connectors (Anderson 50A, 175A, AC plugs, USB ports, etc.) for versatile device connections.
PERFORMANCE:
Long cycle life: Over 4000 cycles with remaining capacity >80% at 25°C, 0.5C, 100% DOD.
High discharge capability: 100A continuous discharge current and 200A pulse discharge current (<1S).
Wide temperature adaptability: Operates in discharge temperatures from -20°C to 60°C and charge temperatures from 0°C to 55°C.
Fast charging, maintenance-free, and eco-friendly, ideal for reliable backup power in vehicles.
Electrical Parameters | |
Nominal Voltage | 12.8V |
Rated Capacity | 110Ah |
Energy | 1408Wh |
Resistance | ≤30mΩ |
Efficiency | ≥0.98 |
Cycle Life(25℃,0.5C,100%DOD) | >4000cycles Remaining capacity>80% |
Self Discharge | <5% per Month |
Max. Modules in Series,Parallel | 4S/1P |
Mechanical Parameters | |
Dimension(LxWxH) | 585x540x75mm |
Dimension((LxWxH) | 20.03×21.26×2.95'' |
Weight | 22Kg |
Terminal Type | Reference connector parameters |
Battery Housing | SPCC |
Housing Protection | IP30 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | Bluetooth |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 14.2~14.6V |
Recommended Float Voltage | 13.3~13.4V@100% |
Recommended Charge Current | 50A |
Maximum Charge Current | 100A |
BMS Charge Cut-off Voltage | 14.8V |
Discharge Parameters | |
Continuous Discharge Current | 100A |
Pulse Discharge Current | 200A(<1S) |
Recommended Volt. Disconnect | 10V |
BMS Discharge Cut-off Voltage | 10V |
Reconnect Voltage | 10.8V |
Short Circuit Protection | 300-800us |
Connector | |
Anderson 50A(Blue) | Alternator,DC11.5~16V,Max30A |
Anderson 50A(Red) | Solar,DC14~DC50V,Max30A |
Anderson 175A(Grey) | DC10~DC14.6V,Max50A |
AC Plug×3 | AC120V 60Hz 1200W |
Ciga Socket | DC10~DC14.6V,Max10A |
USB-A+USB-C | 18W+65W |
USB-Cx2 | 45W |
Aviation socket | IGNITION |
AC input | AC120V,60Hz |
Temperature Parameters | |
Discharge Temperature | -20℃ to 60℃ |
Charge Temperature | 0℃ to 55℃ |
Storage Temperature | 0℃ to 35℃ |
BMS High Temperature Cut-off | 65℃ |
All IN ONE
Slimline Deep Cycle Ultra Slim Lithium is the perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS,DCDC,DC-AC, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel
case.
Easy to MOUNT
Built into a tough steel housing, the Kings Deep Cycle Ultra Slim Lithium doesn’t require a separate battery box. The integrated mounts allow the case to be easily fitted vertically or horizontally, maximising available space or allowing you to improve your weight distribution or centre of gravity. simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.
Long life Lithium
Deep Cycle Lithium batteries allow for a much deeper discharge compared to typical lead acid batteries without affecting the battery’s long term life. ECOLITE Slimline Deep Cycle Lithium Battery can be discharged right the way down to 20% every day and could still last 4000 or more cycles. In real world terms that means with daily use you could get up to ten years of battery life.
Super safe deep cycle lithium battery
Unlike some other lithium-ion batteries,ECOLITE Slimline Deep Cycle Lithium Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! ECOLITE Slimline Deep Cycle Lithium Batteries are vigorously tested and approved according to international lithium battery standards.
