14.6V Charging Voltage Battery Management System Intelligent 4 Series Battery Packs

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Battery Management System Intelligent, 14.6V Battery Management System


Cell Specifications:	4 Series Of Lithium Iron Phosphate Cells	Interface Type:	Charge And Discharge Are Both At The Same Port
Charging Voltage:	14.6V	Cell Voltage Range:	9.6~15V
Continuous C≤150Aharging Current:	≤150A	Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA	Consumption Of Sleep:	≤300uA
Size(LWH):	160mm95mm25mm	Operating Temperature Range:	-30℃~75℃

Cell Specifications:	4 Series Of Lithium Iron Phosphate Cells
Interface Type:	Charge And Discharge Are Both At The Same Port
Charging Voltage:	14.6V
Cell Voltage Range:	9.6~15V
Continuous C≤150Aharging Current:	≤150A
Continuous Discharge Current:	≤150A
Consumption Of Running:	≤25mA
Consumption Of Sleep:	≤300uA
Size(LWH):	160mm95mm25mm
Operating Temperature Range:	-30℃~75℃

Description

14.6V Charging Voltage Battery Management System Intelligent 4 Series Battery Packs

Ecolite Battery Management System 4-Series Battery Packs

FEATURES

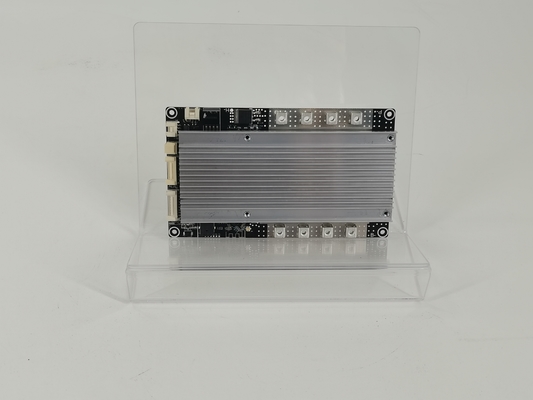

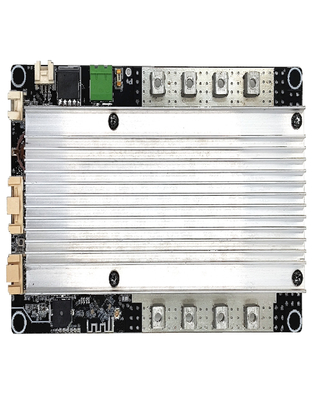

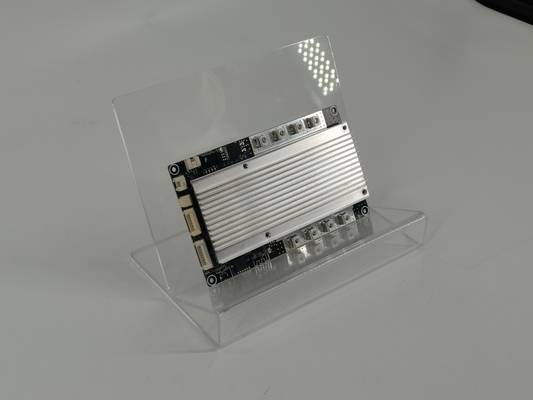

YKN-BMS4S is a protection board designed and developed for 4-series battery packs, suitable forsmall energy storage batteries,street lights,

12V leadacid lithium swappable batteries, and other products; The product adopts an integrated intelligent lithium battery management chip, supporting S485,CAN, and Bluetooth communication.Some parameters can be flexibly adjusted through theupper computer according to customer needs.

Functional features

Supports 4 series of lithium iron phosphate battery packs
Integrate hardware protection functions, such as overvoltage, low voltage, overcurrent, high temperature, low temperature, short circuit protection.etc:
Inteligent balancing function: lt can set the starting voltage and starting voltage difference for balancing, and can choose between charging balancing or static balancing;
Supports 4-way battery cell temperature detection and 1-way power temperature detection;
Supports communication such as Bluetooth, RS485, CAN, etc;
Reserve heating and buzzer functions
Low power consumption: When the BMS is in a stationary state, it can enter a sleep state to reduce power consumption.
BMS supports series and parallel connection of battery packs.

Products	Technical parameters
YKN-BMS4S(Bluetooth)	Basic parameters
	Cell specifications	4 series of lithium iron phosphate cells
	Interface type	Charge and discharge are both at the same port
	Charging Voltage	14.6V
	Cell voltage range	9.6~15V
	Continuous charging current	≤150A
	Continuous discharge current	≤150A
	Consumption of running	≤25mA
	Consumption of sleep	≤300uA
	Operating temperature	-30℃~75℃
	Size(LWH)	160mm95mm25mm
