LiFePO4 12V 100Ah Solar Street Light Lithium Battery BMS MPPT All In One

10Units
MOQ
Inquiry
Price
LiFePO4 12V 100Ah Solar Street Light Lithium Battery BMS MPPT All In One
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: Lithium-ion
Material: LiFePo4
Battery Capacity: 12.8V 100Ah
Energy: 1280Wh
Cycle Life: >4000cycles @1C,80% DOD
Dimension(L×W×H): 380x202x154mm
Weight: 16.5kg
Terminal Type: MC4,SP1712/S4
Case: Cold Rolled Steel Sheet
IP Rating: IP65
Highlight:

LiFePO4 Solar Street Light Lithium Battery

,

12V Solar Street Light Lithium Battery

,

12V 100Ah Lithium Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/ECOLTO/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: SL12-100
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1 months
Payment Terms: L/C, T/T
Supply Ability: 4000 Units per month
Product Description

LiFePO4 12V100Ah Lithium Battery for Solar Street Light

BMS MPPT ALL IN ONE

Solar street light is not only energy saving and environmental protection will not produce electricity,In the past, many solar street lamps used lead-acid batteries, but now, almost all of them use lithium batteries.

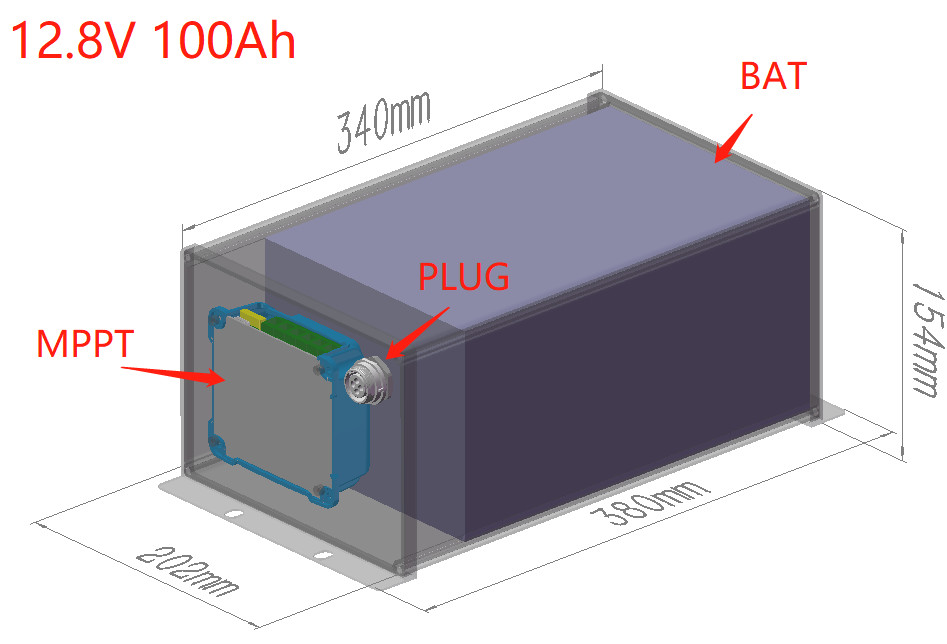

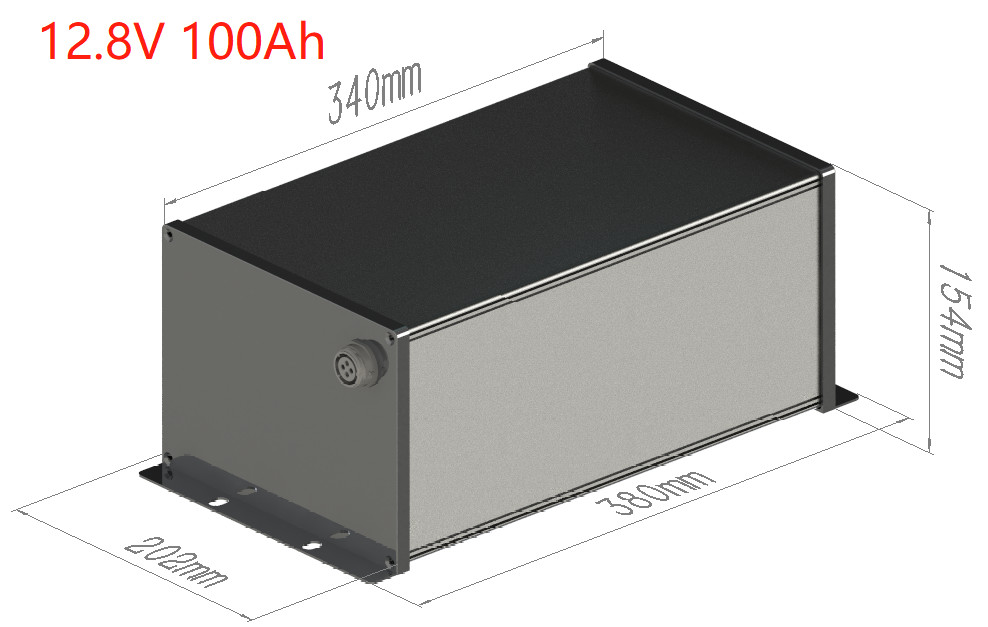

LiFePO4 12V 100Ah Solar Street Light Lithium Battery BMS MPPT All In One 0



BATTERY DATA SHEET



Electrical Parameters   Mechanical Parameters
Nominal Voltage 12.8V Dimension(L×W×H) 360x202x154mm
Rated Capacity 80Ah 14.17x 7.95x 6.06"
Energy 1024Wh Weight 12.6kg
Resistance ≤30mΩ Terminal Type MC4,SP1712/S4
Efficiency ≥0.98 Battery Housing Cold rolled steel sheet
Cycle Life >4000cycles @1C,80% DOD   Housing Protection IP65
Self Discharge < 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Cell in Series/Parallel 4S/1P Communication Option

Discharge Parameters   Charge Parameters
Continuous Discharge Current 40A Charge Method CC-CV
Pulse Discharge Current 60A (<10S) Charge Voltage 13.7~14.6V
Recommended Volt. Disconnect   10V Recommended Float Voltage 13.5~14.3V
BMS Discharge Cut-off Voltage 8.2V Recommended Charge Current   15A
Reconnect Voltage 8.6V Maximum Charge Current 40A
Short Circuit Protection 100-300us BMS Charge Cut-off Voltage 15V

Temperature Parameters
Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off

85 ℃



















































Advantage

1. Lithium batteries are small in size, light in weight and easy to transport.

Compared with lithium-ion energy storage systems and lead-acid colloidal batteries used for power solar street lamps, they weigh about a third and are a third by volume.

That makes it easier to transport, and the cost of transport falls.

2. Lithium battery has high energy density and long service life.

Energy density refers to the amount of energy stored in a given unit of space or mass.

The more energy density a battery has, the more power it can store per unit weight or volume.

There are many factors that affect the service life of lithium batteries, and energy density is one of the most important internal factors.

3. Solar street lamps using lithium batteries are easy to install.

The installation of traditional solar street lamps needs to reserve a battery pit, and the buried box will put the battery into the sealed.

And the installation of lithium solar street light is more convenient, you can directly install the lithium battery on the bracket, the use of suspension or hidden type.

4. Lithium-ion solar street lamps are easy to maintain.

Lithium-ion solar street lamps only need to take out the batteries from the lamp pole or panels during maintenance, while traditional solar street lamps need to dig out the batteries buried in the ground during maintenance, which is much more troublesome than lithium solar street lamps.

ECOLITE produces LFP 12V100AH battery pack, specially designed for solar street lamps.

The service life is up to 20 years.Be brave of any inclement weather.
