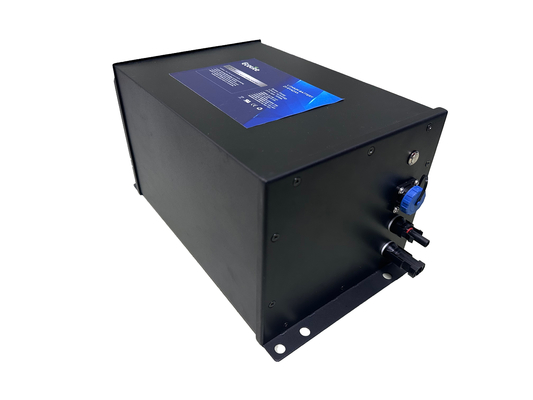

Wide Temperature Design Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: E24-40

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1 months

Payment Terms: L/C, T/T

Supply Ability: 4000 Units per month

Get Best Price
Contact Now
Specifications
Highlight:

LiFePo4 Solar Street Light Battery

,

25.6V Solar Street Light Battery

Nominal Voltage:
25.6V
Rated Capacity:
42Ah
Energy:
1075.2Wh
Resistance:
≤30mΩ
Efficiency:
>98%
Cycle Life(1C,80%DOD,25℃):
>2000cycle @1C,80%DOD
Self Discharge:
<5% Per Month
Nominal Voltage:
25.6V
Rated Capacity:
42Ah
Energy:
1075.2Wh
Resistance:
≤30mΩ
Efficiency:
>98%
Cycle Life(1C,80%DOD,25℃):
>2000cycle @1C,80%DOD
Self Discharge:
<5% Per Month
Description
Wide Temperature Design Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS

Wide Temperature Design Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS


FEATURES

Powering the future of solar street lighting, our 25.6V 42Ah lithium battery stands as a paragon of reliability and efficiency. Engineered with state-of-the-art technology, it’s designed to meet the demanding requirements of sustainable urban illumination, ensuring consistent performance even in the most challenging environments.


PERFORMANCE

1. Prolonged Cycle Life

With a remarkable cycle life exceeding 2000 deep discharge cycles, this lithium battery significantly outperforms conventional energy storage solutions. Its extended lifespan reduces replacement frequency, cutting down on the total cost of ownership. This makes it a perfect choice for long-term outdoor applications where maintenance access is limited, ensuring years of uninterrupted service.

2. High Energy Density

Featuring an impressive energy density, our 25.6V 42Ah battery packs a substantial amount of energy into a compact form. This allows for smaller, lighter battery systems that can deliver equivalent or even greater power compared to bulkier alternatives. It optimizes space utilization within solar street light fixtures without sacrificing performance, enabling more streamlined and efficient lighting setups.

3. High Discharge Current Capacity

Built to handle peak load demands, this battery can support high continuous discharge currents. It ensures a stable power supply during periods of high energy consumption, such as when the street lights are operating at full intensity throughout the night. The battery maintains consistent brightness levels, providing reliable illumination when it’s needed most.

4. Wide Temperature Tolerance

Designed to function flawlessly in extreme climates, our lithium battery operates efficiently across a broad temperature range, from -20°C to +60°C (-4°F to 140°F). Thanks to specialized thermal management technology, it prevents capacity loss in both freezing winters and scorching summers. This makes it suitable for global deployments, whether in arid deserts or frigid mountain regions.

5. Ultra-Lightweight Design

Utilizing premium lithium iron phosphate (LiFePO₄) chemistry, this battery is notably lightweight. It weighs significantly less than traditional lead-acid batteries with equivalent capacity, simplifying installation and reducing structural stress on lighting poles. The reduced weight also eases transportation and logistics, making it more convenient to handle and deploy.

6. Maintenance-Free Operation

Our 25.6V 42Ah lithium battery is hermetically sealed and requires zero routine maintenance. There’s no need for periodic watering, equalization charging, or electrolyte checks, eliminating associated labor costs and operational disruptions. The built-in Battery Management System (BMS) continuously monitors voltage, temperature, and state of charge, ensuring safe and stable performance at all times.

7. Fast Charging Technology

Equipped with advanced charging algorithms, this battery supports rapid charging without compromising its cycle life. It maximizes energy harvesting efficiency, allowing for quick replenishment from solar panels during daylight hours, even in regions with limited sunlight. This ensures the battery is ready to power the street lights through the night, day after day.

8. Environmentally Friendly

We are committed to sustainability, and our 25.6V 42Ah lithium battery is free of heavy metals such as lead, cadmium, and mercury. It complies with strict international environmental standards like RoHS, CE, and UN38.3. Its long lifespan and recyclable components further minimize e-waste, aligning perfectly with global green energy initiatives.



BATTERY DATA SHEET



Electrical Parameters

  Mechanical Parameters
Nominal Voltage
25.6V
Dimension(L×W×H) 336x204x179mm
Rated Capacity 42Ah 13.23x 8.03x 7.05"
Energy 1075.2Wh Weight 12.5kg
Resistance ≤30mΩ Terminal Type MC4,SP1712/S4
Efficiency ≥98% Battery Housing SPCC
Cycle Life >2000cycles @1C,80% DOD   Housing Protection IP65
Self Discharge < 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Cell in Series/Parallel 8S/6P Communication /

Discharge Parameters   Charge Parameters
Continuous Discharge Current 40A Charge Method CC-CV
Pulse Discharge Current 60A (<10S) Charge Voltage 28.4~29.2V
CCA(Tested by DY-2015) 1200CCA Recommended Float Voltage
27~28V
Recommended Volt. Disconnect   10V
BMS Discharge Cut-off Voltage 10V Recommended Charge Current   15A
Reconnect Voltage 10.4V Maximum Charge Current 40A
Short Circuit Protection 200-800us BMS Charge Cut-off Voltage 30V

Temperature Parameters









Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 65 ℃



































































Why Select Our 25.6V 42Ah Solar Street Light Battery?
  • Reliability: Engineered for round-the-clock outdoor operation, it comes with built-in protection against overcharge, overdischarge, and short circuits, ensuring long-term dependability.
  • Adaptability: Its customizable configurations can fit a wide range of solar street light designs and energy requirements, providing versatile solutions for different projects.
  • Performance Assurance: Rigorously tested for vibration, shock, and thermal cycling, this battery guarantees durability in harsh conditions, delivering consistent performance wherever it’s installed.



APPLICATION

Ideal for:

  • Municipal solar street lighting projects
  • Rural electrification initiatives
  • Off-grid infrastructure
  • Commercial and industrial outdoor lighting

WHY CHOOSE  ECOLITE



  • Innovation: Over 10 years of expertise in renewable energy storage.
  • Quality Assurance: UN 38.3,ISO 9001...:certified production processes and rigorous quality testing.
  • Sustainability: Environmentally friendly materials and RoHS-compliant manufacturing.
