BC12-150(DC) With 12V 10A Refrigertor Interface 12V 120A Anderson Discharge Interface

500 pcs
MOQ
BC12-150(DC) With 12V 10A Refrigertor Interface 12V 120A Anderson Discharge Interface
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: 2.5kg
Dimension(L×W×H): 378×192×85mm
Battery Capacity: 14.8V6Ah 8.8Wh(NCM)/12.8V6Ah 76.8Wh(LFP)
Housing Protection: IP20
Highlight:

12V 120A Anderson Discharge Interface

,

12V 10A Refrigertor Interface

Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: BC 12-150(DC)
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs a month
Product Description

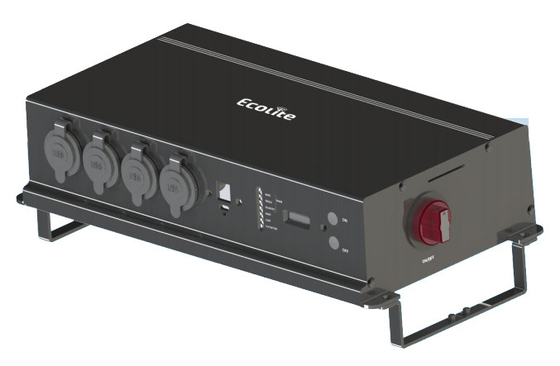

BC12-150(DC) With 12V 10A Refrigertor Interface 12V 120A Anderson Discharge Interface

Features

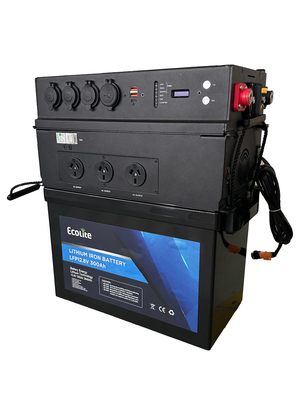

BC 12-150(DC)has 12V10A cigarette lighter interface,12V10A refrigerator interface,12V120A Aderson discharge interface;comes with USB-A,USB-C interface;built-in DC charging module, supports car charging,PV charging and external charging it has an LCD display and LED indicator light to display voltage,current,SOC,status,fault and  other information.The product supports 4 strings of lithium iron phosphate and is a simple installation solution.It is your all-in-one portable power solution.



BC12-150(DC) With 12V 10A Refrigertor Interface 12V 120A Anderson Discharge Interface 0

Specifications



Basic Parameters BC 12-150(DC)
Weight 2.5kg
Dimension(L×W×H) 378×192×85mm
Battery Capacity 14.8V6Ah 8.8Wh (NCM) / 12.8V6Ah 76.8Wh (LFP)
Housing Protection IP20
Input
Anderson 50A(blue) DC charging input,charging current 40A
Anderson 50A(red) Comes with MPPT,PV open circuit voltage maxinmun 50V,charging current 40A
output
Anderson 120A(grey) DC10V-DC14.6V,Max 120A
Car cigarette lighter(×2) DC10V-DC14.6V,Max 10A
American standard refrigerator socket(×2) DC10V-DC14.6V,Max10A
USB-A QC3.0(×2) 5V-3A;9V-2A;12V-1.5A,Max18W
USB-C PD3.0 5V-3A;9V-3A;12V-3A;15V-3A;20V-3A,Max60W
LED display
display voltage,Current,Power,SOC
LED indicator light
instructions DC charging,PV charging,overvoltage protection,undervoltage protection,Overcurrent protection,USB-A and USB-C working status
Protection
Protection Input overcurrent,output overcurrent,charging gigh voltage,discharge undervoltage,input reverse connection protection
Applicable capacity
Applicable capacity 12.8V100Ah,12.8V150Ah,12.8V200Ah,12.8V300Ah



Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: two year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many modules you can produce per month?
A: 1000 pcs

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
