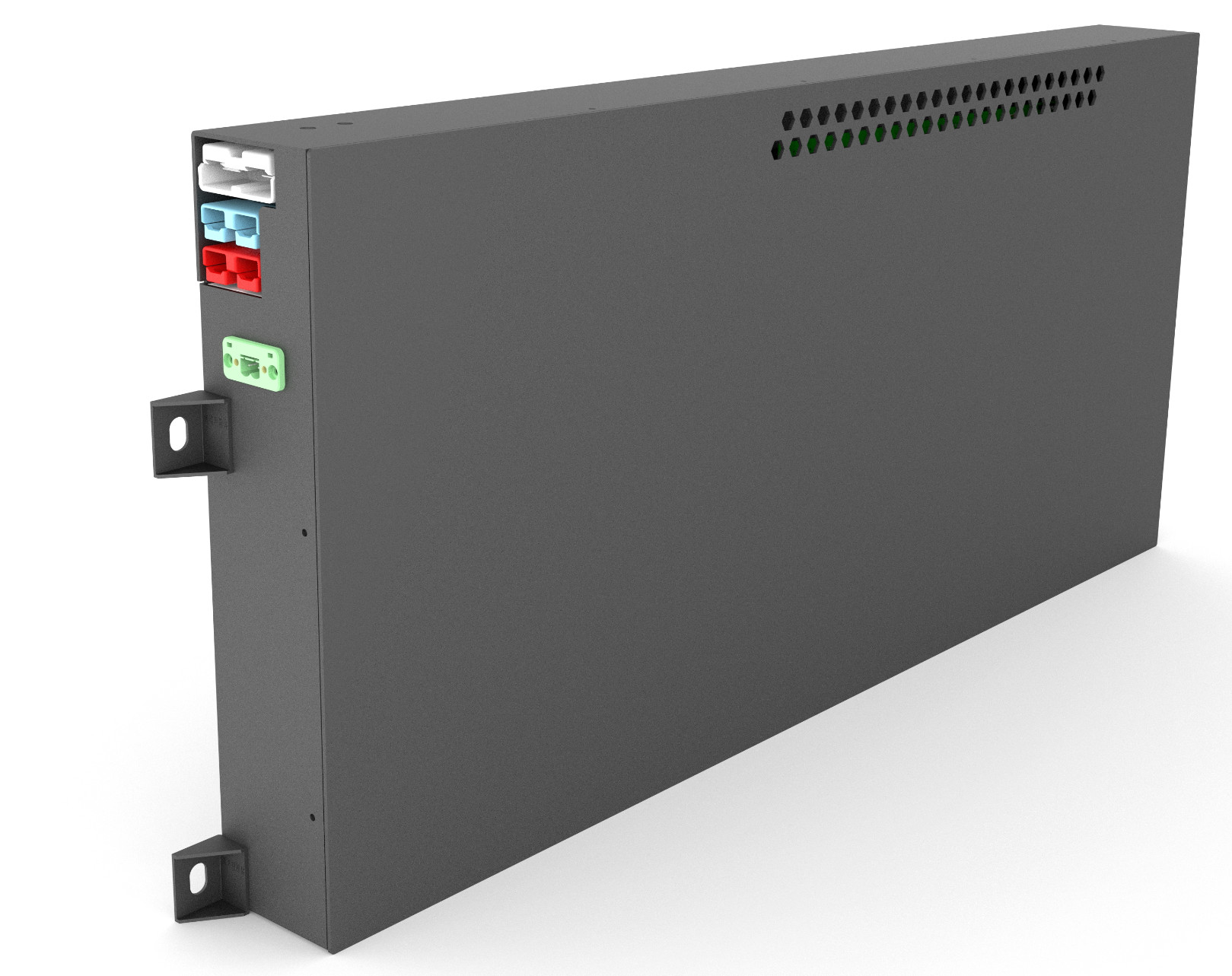

LFP 12.8V 200Ah 12V Lithium Battery Pack For Marine Boat Sailboat

Name: LFP 12.8V 200Ah 12V Lithium Battery Pack For Marine Boat Sailboat
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: SLIMLINE200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: SLIMLINE200

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 3000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              200Ah 12V Lithium Battery Pack, Marine 12V Lithium Battery Pack, LFP Sailboat Lithium Battery


Nominal Voltage:	12.8V	Rated Capacity:	200Ah
Energy:	2560Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In SeriesParallel:	4S/2P

Nominal Voltage:	12.8V
Rated Capacity:	200Ah
Energy:	2560Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In SeriesParallel:	4S/2P

Description

LFP 12.8V 200Ah 12V Lithium Battery Pack For Marine Boat Sailboat

SLIMLINE LFP12.8V 200Ah 12V Lithium Battery Pack For Marine Boat Sailboat

PERFORMANCE
SLIMLINE 100 sampling lithium iron phosphate battery cell, with built-in intelligent BMS, has characteristics such as long service life, light weight, high discharge current, wide temperature range, fast charging, maintenance free, safety and environmental protection.At the same time, it has multiple charging and discharging interfaces,supporting three charging methods: car generator,photovoltaic panel, and city power. lt is a multi- functional power supply, making it easier to use and more convenient.

SLIMLINE 200SS( 12.8V200Ah)
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(W×H×D) Including installation feet	758x335x70mm
Rated Capacity	200Ah		29.84 x13.19x 2.76''
Energy	2580Wh	Weight	26.5kg
Resistance	≤30mΩ	Terminal Type	Reference connector parameters
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life(25℃, 0.5C/1C)	>6000cycles @70%DOD	Housing Protection	IP30
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	/
Reconnect Voltage	10.8V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	14.8V

Connector		Temperature Parameters
Anderson 50A(Blue)	Alternator ,DC11.5~16V,Max40A	Discharge Temperature	-30℃ to 60 ℃
Anderson 50A(Red)	Solar ,DC11.5~DC50V ,Max40A	Charge Temperature	0 ℃t o 60 ℃℃
Anderson 120A(Grey)	DC10~DC14.6V,Max100A	Storage Temperature	-30℃ to 60 ℃
2P Wiring Terminal	Lgnition	BMS High Temperature Cut-off	65℃
