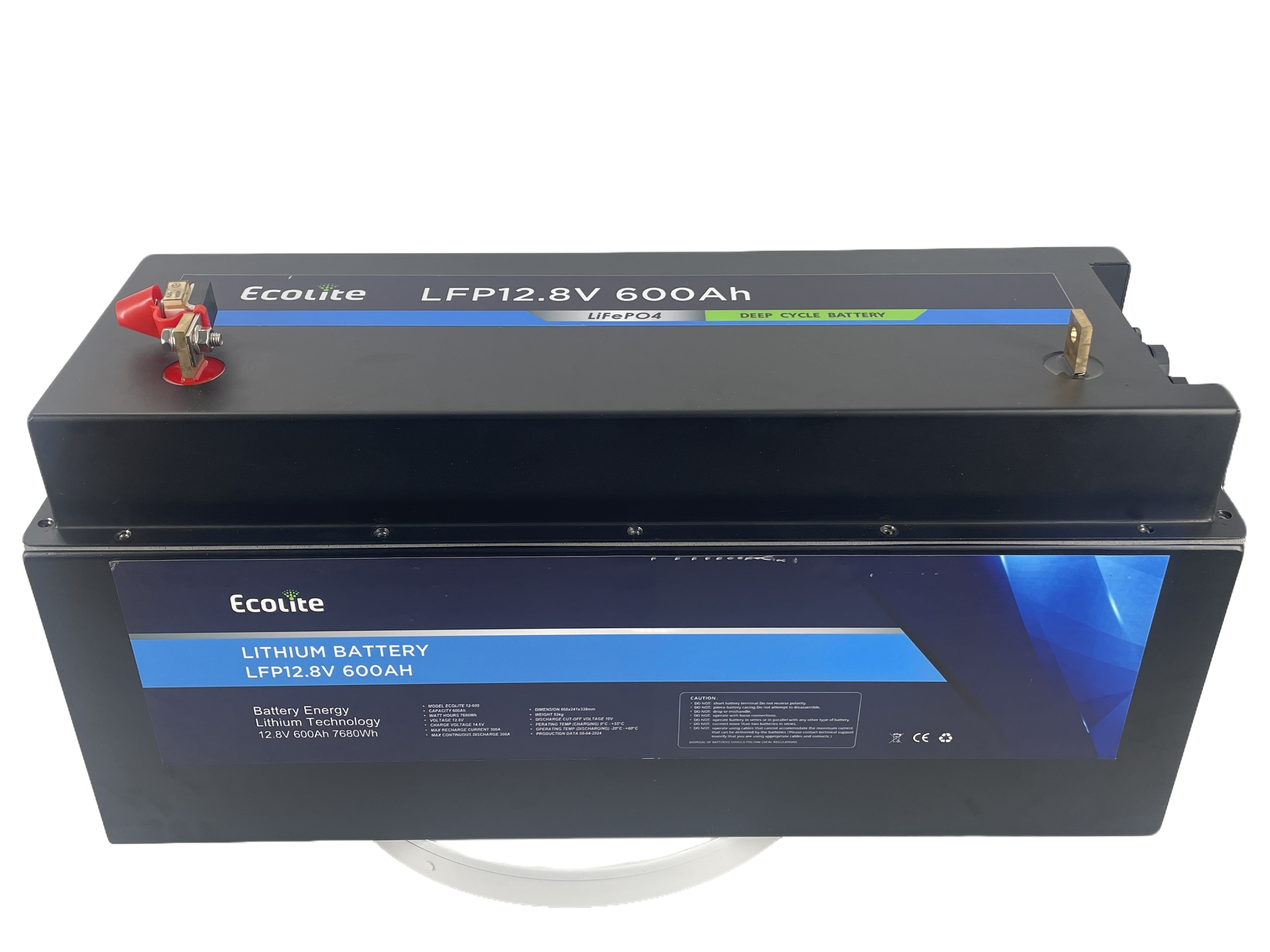

12.8V 600Ah Marine LiFePO4 Battery For Boat Applications

Name: 12.8V 600Ah Marine LiFePO4 Battery For Boat Applications
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: Boat Marine
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Model Number: Boat Marine

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              600Ah Marine LiFePO4 Battery, 12.8V Marine LiFePO4 Battery, 12.8V LiFePO4 Boat Battery


Nominal Voltage:	12.8V	Rated Capacity:	600Ah
Energy:	7680Wh	Resistance:	≤50mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month	Cell Series/Parallel:	4S/2P
Discharge:	-20℃ To 60℃	Charge Temperature:	0℃to 55℃
Storage Temperature:	-20℃ To 60℃	BMS High Temperature Cut-off:	65℃

Nominal Voltage:	12.8V
Rated Capacity:	600Ah
Energy:	7680Wh
Resistance:	≤50mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month
Cell Series/Parallel:	4S/2P
Discharge:	-20℃ To 60℃
Charge Temperature:	0℃to 55℃
Storage Temperature:	-20℃ To 60℃
BMS High Temperature Cut-off:	65℃

Description

12.8V 600Ah Marine LiFePO4 Battery For Boat Applications

Safe and Durable Marine LiFePO4 Battery 12.8V 600Ah for Boat Applications

Mechanical Parameters
Dimension(LxWxH)	668x241x338mm
Dimension(LxWxH)	26.30x 9.49x 13.31
Weight	52Kg
Terminal Type	M8
Battery Housing	SPCC
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	CAN/Bluetooth

Discharge Parameters
Continuous Discharge Current	300A
Pulse Discharge Current	500A (<10S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	300A
BMS Charge Cut-off Voltage	14.8V
