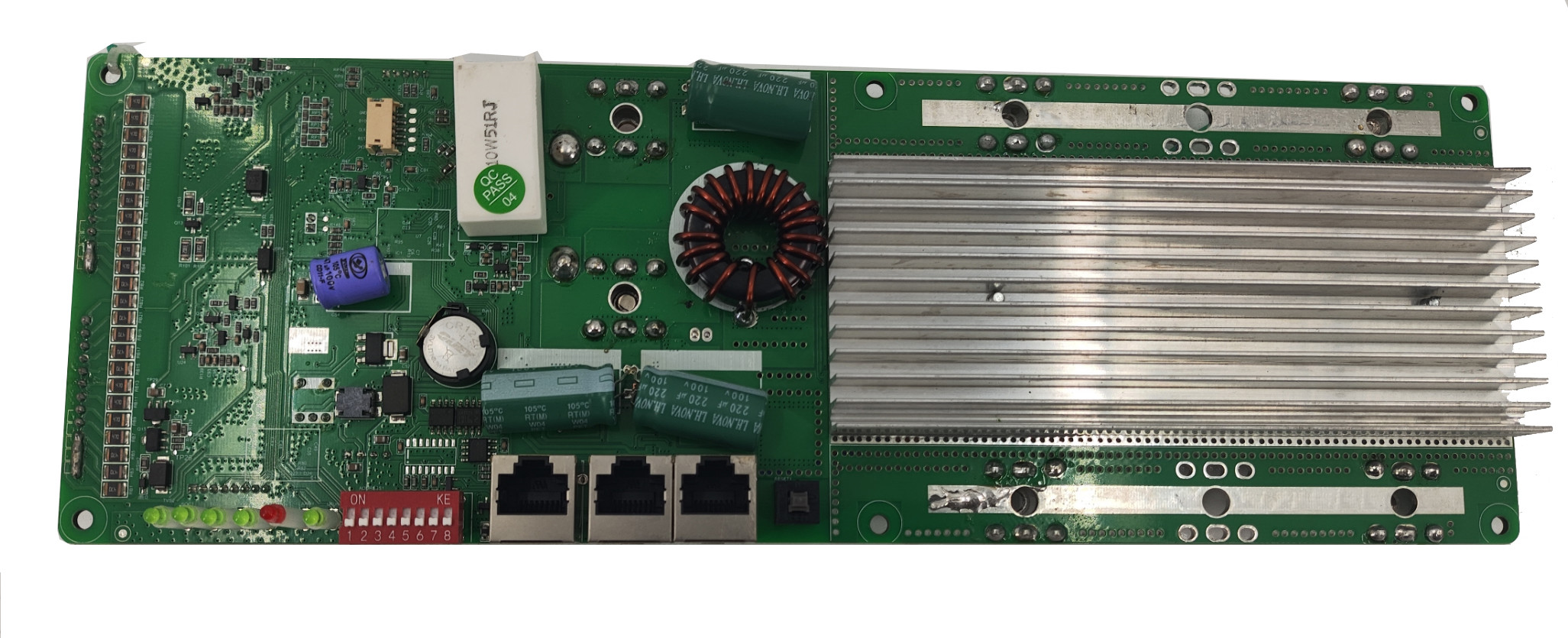

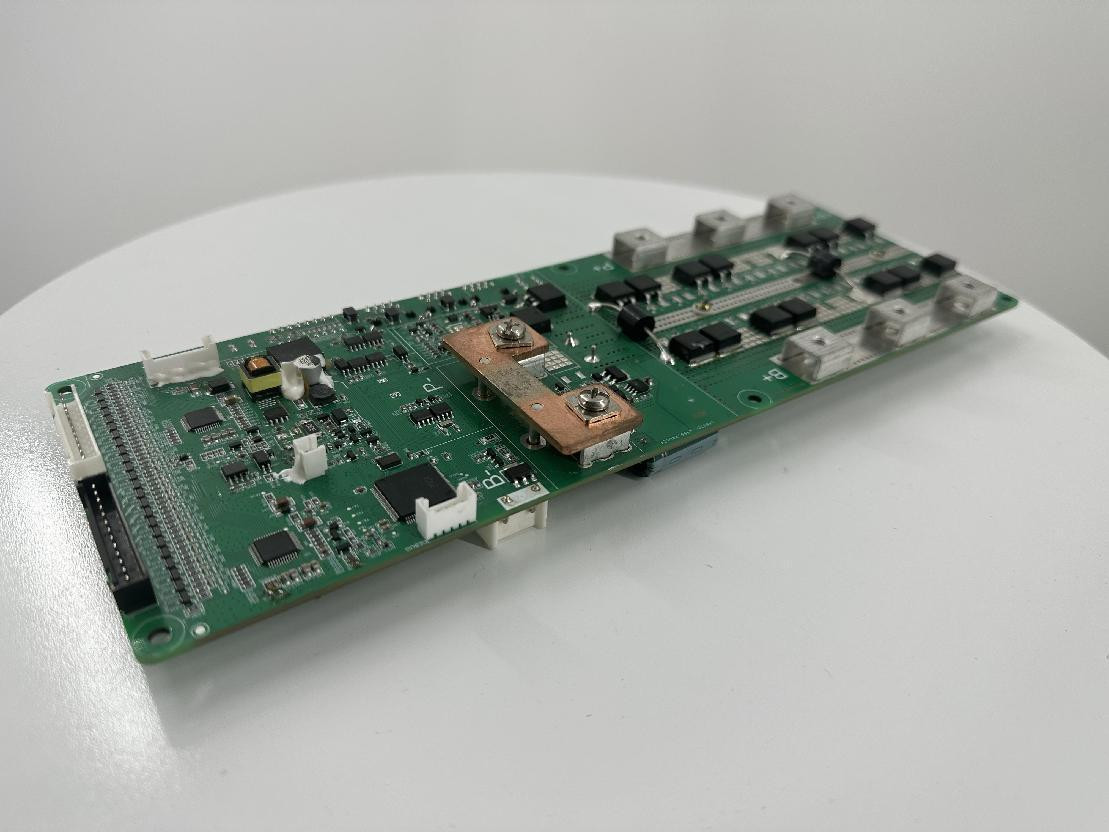

Household Energy Storage Battery Management System BMS24S 100A

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 1000UNITS

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Household Energy Storage Battery Management System, BMS24S Battery Management System


Supports Serial Number:	8S~24S	Support Ontinuous Current:	100A
NTC Quantity:	2 Channels Built-in 4 Channels External	Equalization Function:	Passive Equalization
Switch Function:	Standard	Charging Current Limiting Function Standard:	Standard
Battery Packs Used In Parallel:	Support	Data Storage Function:	Standard
Pre-discharge Function:	Standard	485 Communication (lsolation):	Standard
CAN Communication:	Standard	Heating Film Interface:	Support
LCD Display:	Optional	LED Indicator Interface:	Support

Supports Serial Number:	8S~24S
Support Ontinuous Current:	100A
NTC Quantity:	2 Channels Built-in 4 Channels External
Equalization Function:	Passive Equalization
Switch Function:	Standard
Charging Current Limiting Function Standard:	Standard
Battery Packs Used In Parallel:	Support
Data Storage Function:	Standard
Pre-discharge Function:	Standard
485 Communication (lsolation):	Standard
CAN Communication:	Standard
Heating Film Interface:	Support
LCD Display:	Optional
LED Indicator Interface:	Support

Description

Household Energy Storage Battery Management System BMS24S 100A

Intelligent BMS24S100A (Battery Management System)

FEATURES:

This product is a BMS designed specifically for household energy storage, supporting lithium iron phosphate, ternary lithium, and lithium titanate. Supports 8-24 string batteries. It adopts integrated and modular design, integrating battery data acquisition, management, communication and other functions into one. This product is equipped with voltage acquisition, current acquisition, temperature acquisition, and various protection mechanisms. It also provides intelligent charging balance, battery SOC estimation, historical data storage, RS485 communication, CAN communication, RS232 communication, as well as functions such as power on pre charging, charging current limiting, heating control, LCD display, etc.

Products	Function configuration
BMS24S100A	Function	Configuration	Function	Configuration
Battery packs used in parallel	Supports serial number	8S~24S	Pre-discharge function	Standard
	Support ontinuous current	100A	485 Communication (lsolation)	Standard
	NTC Quantity	2 channels built-in 4 channels external	CAN Communication	Standard
	Equalization function	Passive equalization	Heating film interface	Support
	Switch function	Standard	LCD display	Optional
	Charging current limiting function	Standard	LED indicator interface	Standard
	Battery packs used in parallel	Support
	Data storage function	Standard
