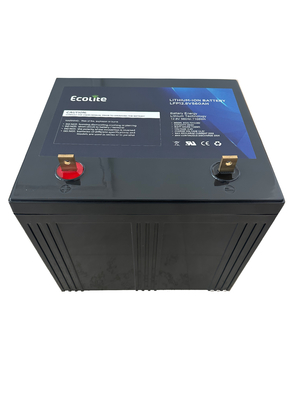

ECOLITE Marine LifePO4 Lithium Battery LFP 12.8V 560Ah M8 Terminal Type

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  ECOLITE Marine LifePO4 Lithium Battery, 12.8V Marine LifePO4 Lithium Battery


Battery Type:	LiFePO4	Battery Voltage:	12.8V
Battery Capacity:	560Ah	Energy:	7168Wh
Resistance:	≤30mΩ	Cycle Life:	>6000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month	Max, Modules In Series,Parallel:	4S/2P
Product Dimension(LxWxH):	401x351x342mm	Product Weight:	50Kg
Battery Housing:	ABS	Terminal Type:	M8
Maximum Charge Current:	200A

Battery Type:	LiFePO4
Battery Voltage:	12.8V
Battery Capacity:	560Ah
Energy:	7168Wh
Resistance:	≤30mΩ
Cycle Life:	>6000cycles @0.5C,80% DOD
Self Discharge:	<5% Per Month
Max, Modules In Series,Parallel:	4S/2P
Product Dimension(LxWxH):	401x351x342mm
Product Weight:	50Kg
Battery Housing:	ABS
Terminal Type:	M8
Maximum Charge Current:	200A

Description

ECOLITE Marine LifePO4 Lithium Battery LFP 12.8V 560Ah M8 Terminal Type

Ecolite Marine LifePO4 Lithium Battery LFP12.8V 560Ah

Product Features

Lithium lron Phosphate (LiFePO4).

The SafestLithium Technology.

Integrated Battery Management System(BMS)

Maximum support 4 in series or 4 in parallel.

Product Performance

Long Cycle Life >4000cycles@ 80%DOD.

High Density,High Discharge Current,High Tempera-ture Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

Product Specifications

Electrical Parameters
Nominal Voltage	12.8V
Nominal Capacity	560Ah
Energy	7168Wh
Resistance	≤30mΩ
Efficiency	≥0.98
Cycle Life	>6000cycles @0.5C,80% DOD
Self Discharge	<5% per Month
Max, Modules in Series,Parallel	4S/2P

MechanicalParameters
Dimension(LxWxH)	401x351x342mm
Dimension((LxWxH)	15.79x 13.82x 13.46
Weight	50Kg
Terminal Type	M8
Battery Housing	ABS
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Discharge Parameters
Continuous Discharge Current	200A
Pulse Discharge Current	300A(<1S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	200A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
