Ecolite Smart BMS Level 3 Architecture Home Energy Storage Lithium LFP Battery Management System

Highly Functional Level 3 Architecture System High voltage Battery Management System for BCU Energy Storage

About this products:

  The Ecolite Smart BMS Active Balance Home Energy Storage Lithium LFP LifePO4 Battery 8S 24V 16S 48V 100A Management System BMS provides efficient energy storage management for various applications, including home energy storage systems, ensuring optimal battery performance and longevity.

  Customizable Options: This product offers customizable board thickness, hole size, line width, and line spacing, catering to specific user requirements, such as those mentioned by a client requesting a tailored solution.

  Robust Communication Protocols: The BMS can be supports LAN,USB Interface,CAN communication protocols,

Diagram of Energy storage level 3 Architecture System:
Level 3 battery system architecture:

First level control: BAU centrally manages the various clusters of batteries in the battery array, and communicates with external PCS, UPS, EMS, airconditioning, liquid cooling, fire protection, etc;
Secondary control: BCU1~BCUmmanaging each cluster of batteries collecting cluster battery information, high-voltage control, and uploading cluster information to BAU;

Slave control:BMU1~BMUn, responsible for collecting battery voltage, temperature and other information of the battery module.

Products	Function configuration
BCU	Parameter	Minimum Value	Typical Value	Maximum UnitValue		Description
	Power input	9	24	32	v
	Working current	180	125	130	mA
	Rated power			S3	W
	CAN BuS			3	Channel	2-wayisolation,1-way non isolation
	485 Bus			2	Channel	2-way isolation
	LAN interface (TCP/P)			1	Channel
	High edge output			8+2	Channel	2-way support for PWM output
	Switching input detection			9	Channel	solaed acise dee prosive detection, 1 -way
	Dry node output			2	Channel	Rated 2A, passive output
	Temperature detection			4	Channel	+2℃℃,-40~125°℃,supports NTC-10K,100K
	Total voltage detection channel			3	Channel	1 channel supports main and negative relayadhesion detection
	Total voltage detection range	12		1500	V	Total pressure detection error ≤ 0.3%
	Manage the rated voltage ofthe battery pack		1500		V	Rasrocltage ssoy, withstand voltage AC3100+,DC4380+
	Supports the number of BMU			40	PCS
	Detect the total	6		500	Strand	Used in
	Number of battery strings					Conjunction with BMU
	Current detection			2	Channel	Supports 1 splitter,1 Hall(supports 5v,12v), and can collect data simultaneously
	Current detection range	-1500		1500	A	Range optional
	Current detection error	0	1	1%FSR	A	Typical error 0.5% FSR, maximum error 1% FSR
	Insulation testing			15%	KΩ	0-200KΩ,error<15KΩ;>200KΩ,eror≤+15%
	BCU automatic addressing		support			lsolation type, level signal addressed
	SOC estimation error	0	3%	5%		≤5%
	SOH estimation accuracy	0	3%	10%
	SOE estimation accuracy	0	3%	5%

Products	Function configuration
BAU	Parameter	MinimumValue	TypicalValue	Maximum UnitValue		Description
	Power input	9	24	32	v
	Working current	180	200	220	mA
	Rated power			≤5	W
	CAN Bus			4	Channel	lsolation communication
	485 Bus			4	Channel	lsolation communication
	USB interface			1	Channel	Used for external data storage, default 32/64G
	LAN interface (TCP/IP)			2	Channel
	Relay drive output (RL)			4	Channel
	Dry node output (DO)			4	Channel	Rated 2A, passive dry node
	Digital Input (DlH)			2	Channel	High level detection
	Digital Input (DlL)			2	Channel	Low level detection
	Digital signal power input			1	Channel	lsolation signal detection power supply
	Supports the number of BCU			30	PCS

Products		Function configuration

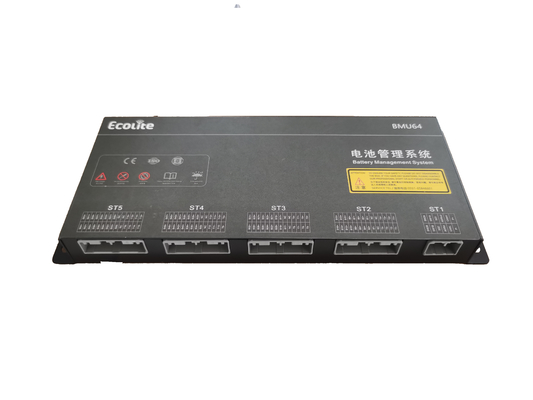

BMU	Parameter	BMU16	BMU32	BMU48	BMU64
	Working voltage range	9~32V
	Working voltage range	S50mA(12V)/s25mA(24V)
	Nominal power	≤0.6W
	CAN communication	1 Channel
	Number of voltage acquisitionstrings	16	32	48	64
	Temperature detection point	4	8	12	16
	Single cell detection range	0-5000mV; Exceeding the range of -0.5~6V can cause AFE damage
	Voltage acquisition accuracy	±5mV
	Temperature detection accuracy ±2°C	±2°C
	Balance function	Support, passive balancing
	Balanced number of opening routes	Every 8 channels can activate 1 channel equalization
	Digital signal power input	Max120mA,effective value 30-50mA
	Automatic address allocation	Support
	Io output	2-way dry contact, rated 2A, passive output
	Analog input detection	2-way (high edge detection)
	Bootloader	Support CAN bus burning and writing
	CAN communication	1 Channel
	Anti reverse connection of power supply	Support
	Power surge prevention	Support
	Voltage resistance	Voltage withstand AC3100+,DC4380+
	Working temperature	-40°C~85°C
	Storage temperature	-40°C~125°C
	Protection level	IP43, Not waterproof
	Humidity range	<95%,No condensation
	Shock	≤5500m
	Automatic address allocation	At 10-25Hz,the amplitude is 1.2mm: At 26-500Hz,maximum 30m/S
	Drop	1.5m, 5 times in both horizontal and vertical directions, no damage to PCBA, no change in performance
