Smart BMS YKN-BMS8 Energy Storage Battery Protection Board With RS485 And CAN

Name: Smart BMS YKN-BMS8 Energy Storage Battery Protection Board With RS485 And CAN
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: YKN-BMS8S
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: YKN-BMS8S

Payment & Shipping Terms

Minimum Order Quantity: 100 Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Smart BMS Battery Protection Board, RS485 Battery Protection Board, CAN Battery Protection Board


Cell Specifications:	8 Series Of Lithium Iron Phosphate Cells	Charging Voltage:	29.2V
Cell Voltage Range:	19.2~30V	Support Continuous Curent:	150A
Operating Temperature:	-30℃~75℃	Communicaton:	RS485,CAN
Consumption Of Running:	≤25mA	Consumption Of Sleep:	≤300uA
Supports Serial Number:	8S~10S	Battery Packs Used In Parallel:	Support
Data Storage Function:	Standard

Cell Specifications:	8 Series Of Lithium Iron Phosphate Cells
Charging Voltage:	29.2V
Cell Voltage Range:	19.2~30V
Support Continuous Curent:	150A
Operating Temperature:	-30℃~75℃
Communicaton:	RS485,CAN
Consumption Of Running:	≤25mA
Consumption Of Sleep:	≤300uA
Supports Serial Number:	8S~10S
Battery Packs Used In Parallel:	Support
Data Storage Function:	Standard

Description

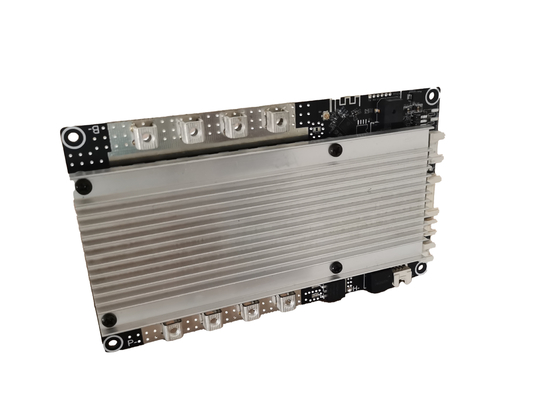

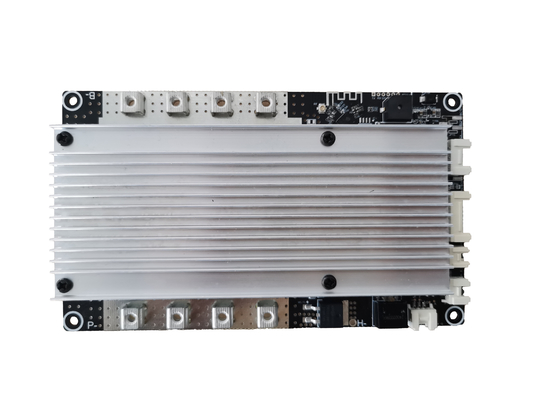

Smart BMS YKN-BMS8 Energy Storage Battery Protection Board With RS485 And CAN

Smart BMS YKN-BMS8 Energy Storage Battery Protection Board with RS485 and CAN

FEATURES:
YKN-BMS8S is specifically designed for 8-series small energy storage battery packs, It can be applied to different lithium batteries, such as street lights, 24V lead-acid lithium replaceable battery, and other products;The protection board is made of high quality to keep your battery for a long cycle life.BMS ensures the stability and safety of the battery system, optimizes battery performance and extends its service life.

Functional features:
Supports 8 series of lithium iron phosphate battery packs

The main functions are:over-charing protection,over-discharging protection,over-current protection, short circuit protection.etc
Intelligent balancing function: the starting voltage and starting voltage difference can be set for balancing, and charging balancing or static balancing can be selected;

Multi-Communication Options: This high-performance BMS offers a range of communication options, including RS485, CAN,UART,and Bluetooth, allowing for seamless integration with various applications and user-friendly monitoring.
Integrated solution,stable performance,off-line protection while charging and discharging;
Supports series and parallel connection

Products	Technical parameters
YKN-BMS8S(Bluetooth)	Basic parameters
	Cell specifications	8 series of lithium iron phosphate cells
	Interface type	Charge and discharge are both at the same port
	Charging Voltage	29.2V
	Cell voltage range	19.2~30V
	Continuous charging current	≤150A
	Continuous discharge current	≤150A
	Consumption of running	≤25mA
	Consumption of sleep	≤300uA
	Operating temperature	-30℃~75℃
	Size(LWH)	160mm95mm25mm

Function configuration
Function	Configuration	Function	Configuration
Supports serial number	8S~10S	Pre-discharge function	Standard
Support continuous curent	150A	485 Communication (lsolation)	Standard
NTC Quantity	1 channels built-in. 4 channels external	CAN Communication	Standard
Equalization function	Passive equalization	UART Communication	Optional
Battery packs used in parallel	Support	Heating film interface	Support
Data storage function	Standard	BLE/WVIFI	Optional
Buzzer alarm	Optional
