Deep Cycle Marine Lithium Battery 12.8V 560Ah 600Ah LiFePO4 Yacht Battery Pack With BMS

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          12.8V Marine Lithium Battery, 600Ah Marine Lithium Battery


Rated Voltage:	12.8V	Nominal Capacity:	600Ah
Nominal Energy:	7680Wh	Inner Resistance:	≤50mΩ
Pulse Discharge Current:	Pulse Discharge Current	Continuous Discharge Current:	300A
Self Discharge:	<5% Per Month	Cell Series/Parallel:	4S/2P
Housing Protection:	IP65	Communication:	CAN/Bluetooth
Recommended Volt. Disconnect:	10V

Rated Voltage:	12.8V
Nominal Capacity:	600Ah
Nominal Energy:	7680Wh
Inner Resistance:	≤50mΩ
Pulse Discharge Current:	Pulse Discharge Current
Continuous Discharge Current:	300A
Self Discharge:	<5% Per Month
Cell Series/Parallel:	4S/2P
Housing Protection:	IP65
Communication:	CAN/Bluetooth
Recommended Volt. Disconnect:	10V

Description

Deep Cycle Marine Lithium Battery 12.8V 560Ah 600Ah LiFePO4 Yacht Battery Pack With BMS

Battery Features
Lithium Iron Phosphate(LiFePO4).
The Safest Lithium Technology.BMS safety management system.
Flexible in series and Parallel(Max 4S4P)
IP65 Waterproof
Products Advantage

Long cycle life: Lithium iron phosphate batteries have a lifecycle of two to four times longer than lithium-ion. This is in part because the lithium iron phosphate option is more stable at high temperatures, so they are resilient to overcharging. Additionally, lithium iron phosphate batteries can be stored for longer periods without degrading.

Less Enviromental Pollution: with non-toxic materials: iron, graphite, and copper.

More safer: Lithium iron phosphate has super stability and safety, and is not easy to be impacted and exploded.

High discharge efficiency: higher rate than lithium-ion batteries.

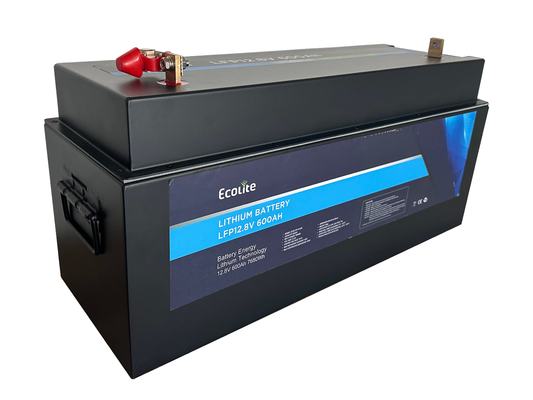

Three Views Of Products

Products Specification

Electrical Parameters
Ratedl Voltage	12.8V
NominalCapacity	600Ah
Nominal Energy	7680Wh
Resistance	≤50mΩ
Efficiency	≥0.98
Cycle Life	＞4000cycles@0.5C,80％ DOD
Self Discharge	＜5％ per Month
Cell in Series/Parallel	4S/2P

Mechanical Parameters
Dimension(LxWxH)	668x241x338mm
Dimension(LxWxH)	26.30x 9.49x 13.31
Weight	52Kg
Terminal Type	M8
Battery Housing	SPCC
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	CAN/Bluetooth

Discharge Parameters
Continuous Discharge Current	300A
Pulse Discharge Current	500A (<10S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	300A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
