ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries

Name: ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: YKNQD4SC1V100
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: YKNQD4SC1V100

Payment & Shipping Terms

Minimum Order Quantity: 1000UNITS

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  12V Cranking Battery Management System, Cusomized Battery Management System, Smart Battery Management System


Size（LWH):	130mm90mm25mm	Charging Voltage:	14.6V
Voltage Range Continuous:	8~17V	Operating Temperature:	-30℃~75℃
Consumption Of Running:	≤3W

Size（LWH):	130mm90mm25mm
Charging Voltage:	14.6V
Voltage Range Continuous:	8~17V
Operating Temperature:	-30℃~75℃
Consumption Of Running:	≤3W

Description

ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries

ECOLITE Smart Battery Management System 600A Cusomized For 5-6Ah Starter Batteries

FEATURES

YKNQD4SC1V100 has basic acquisition functions such as 4-channel cell temperature acquisition,and 1-channel current acquisition.It also has control functions such as 1-channel relay drive and 1-channel mos drive.Equipped with battery overcharge,overdischarge,overcurrent,over temperature,under temperature,and short circuit protection functions.Equipped with Bluetooth,CAN,485 communication function.

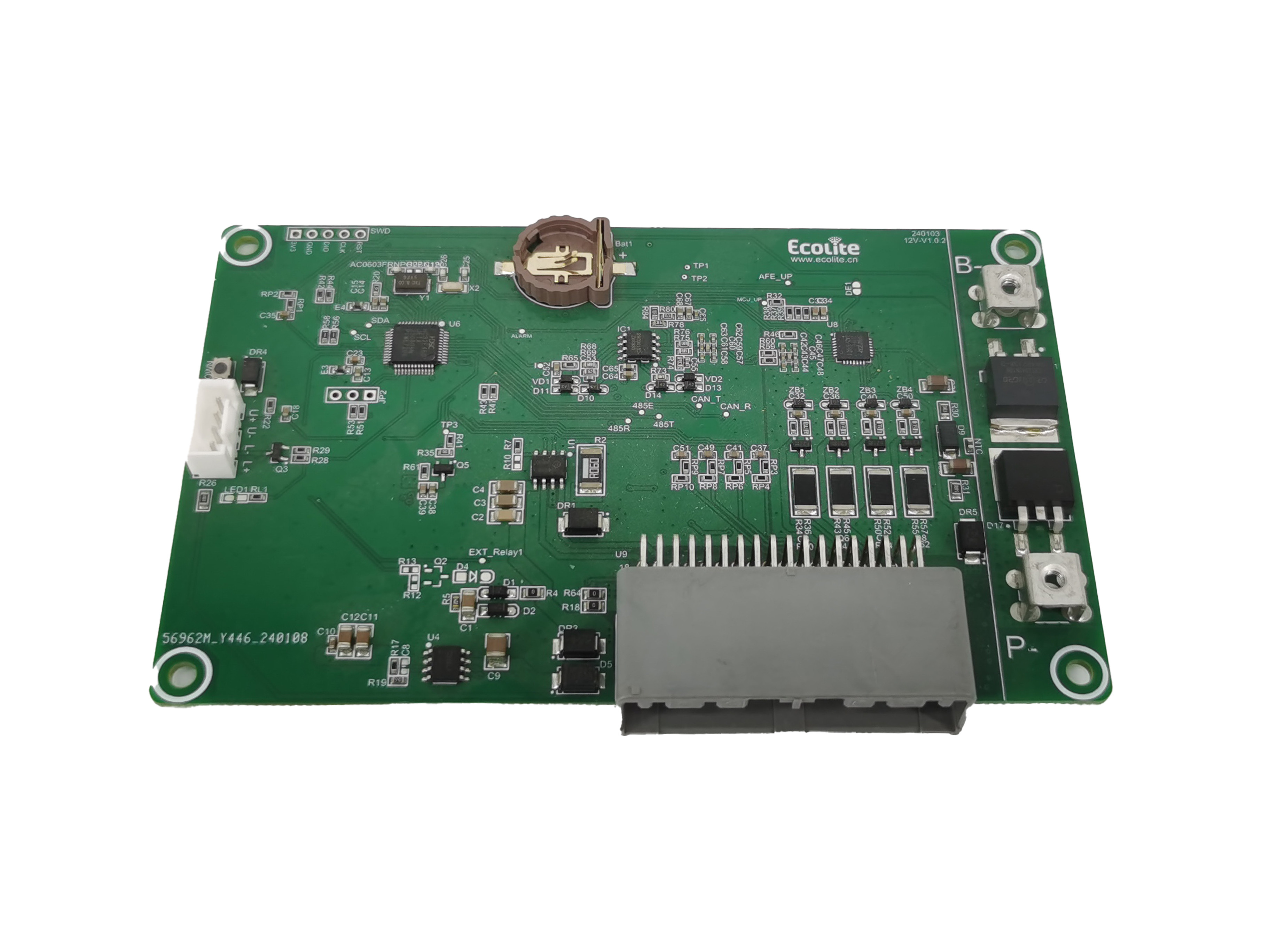

ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries 0

Technical Parameters
Basic parameters
Cell specifications	4 series of lithium iron phosphate cells
Interface type	Charge and discharge are both at the same port
Charging Voltage	14.6V
Voltage range Continuous	8~17V
Charging current Continuous	According to the relay
Discharge current	According to the relay
Consumption of running	≤3W
Consumption of sleep	≤0.15W
Operating temperature	-30℃~75℃
Size(LWH)	130mm90mm25mm

Configuration	Parameter
Cell Type	LFP
Rated voltage of battery	12.8V
The number of temperatures collected by BMS	4
Temperature sensor type	NTC
CAN communication interface	Yes
Switch button	Yes
Bluetooth	Yes
RS485	Yes
The number of voltages collected by BMS	4
Relay drive circuit	2
CAN baud rate	250/500Kbps
Current sensor	0.1mΩsplitter

FUNCTIONAL FEATURES

Supports 4 series of lithium iron phosphate battery packs.
Integrate hardware protection functions,such as overvoltage,low voltage,overcurrent,high temperature,low temperature,short circuit protection,etc;
Intelligent balancing function:It can set the starting voltage and starting difference for balancing,and can choose between charging balancing or static balancing;
Supports 4-channel battery cell temperature detection and 1-channel current detection.
Supports communication such as Bluetooth, RS485, CAN, etc;
Support 4~channel relay drive.
Support button switches.
Low power consumption: When the BMS is in a stationary state, it can enter a sleep state to reduce power consumption.
