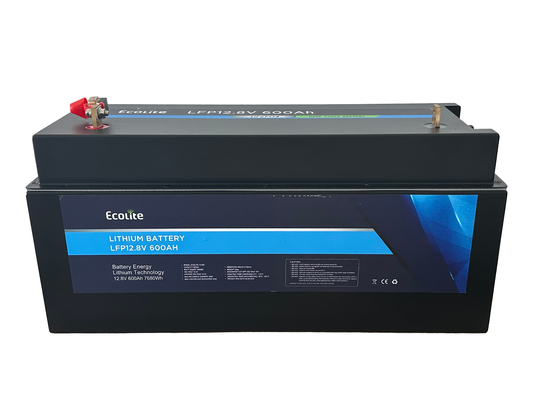

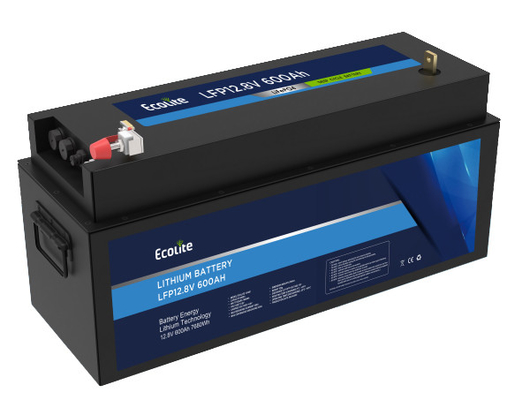

Lithium Battery Marine LiFePO4 Battery 12.8V 600Ah For Marine Standby Power Supply

Name: Lithium Battery Marine LiFePO4 Battery 12.8V 600Ah For Marine Standby Power Supply
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP12-600
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Model Number: LFP12-600

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Marine standby power supply LiFePO4 Battery, Marine LiFePO4 Battery 600Ah, Marine LiFePO4 Battery 12.8V


Voltage:	12.8V	Capacity:	600Ah
Energy:	7680Wh	Resistance:	≤50mΩ
Efficiency:	≥0.98	Dimension(L×W×H):	668×241×338mm
Weight:	52kg	Terminal Type:	M8
Battery Housing:	SPCC	Housing Protection:	IP65

Voltage:	12.8V
Capacity:	600Ah
Energy:	7680Wh
Resistance:	≤50mΩ
Efficiency:	≥0.98
Dimension(L×W×H):	668×241×338mm
Weight:	52kg
Terminal Type:	M8
Battery Housing:	SPCC
Housing Protection:	IP65

Description

Lithium Battery Marine LiFePO4 Battery 12.8V 600Ah For Marine Standby Power Supply

Lithium Battery Marine 12.8V 600Ah Marine LiFePO4 Battery for Marine standby power supply

Fish all day with LFP12-600! The LFP12-600 is a durable and long-lasting 12V lithium iron phosphate power source designed specifically for marine use. The parallel design brings a simpler set-up and more capacity, keeping you out on the water for longer.

FEATURES

1.Lithium Iron Phosphate(LiFePO4). The Safest Lithium Technology.

The battery cell material is lithium iron phosphate, which has a longer cycle life, a wider operating temperature range, is not prone to fire or explosion, and is highly safe.

2.Integrated Battery Management System(BMS).

Equipped with a dedicated BMS to protect the battery from overcharge, over-discharge, overvoltage, overcurrent, etc., ensuring real-time management of the battery status.

3.Maximum support 4 in series or 4 in parallel.

The batteries can be adjusted in series or parallel according to customer requirements to meet their needs for capacity and voltage.

PERFORMANCE

Long Cycle Life ＞ 4000cycles@80％DOD

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

SPECIFICATION

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	600Ah
Energy	7680Wh
Resistance	≤50mΩ
Efficiency	≥0.98
Cycle Life	＞4000cycles@0.5C,80％ DOD
Self Discharge	＜5％ per Month
Cell in Series/Parallel	4S/2P

Mechanical Parameters
Dimension(LxWxH)	668x241x338mm
Dimension(LxWxH)	26.30x 9.49x 13.31
Weight	52Kg
Terminal Type	M8
Battery Housing	SPCC
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	CAN/Bluetooth

Discharge Parameters
Continuous Discharge Current	300A
Pulse Discharge Current	500A (<10S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	300A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
