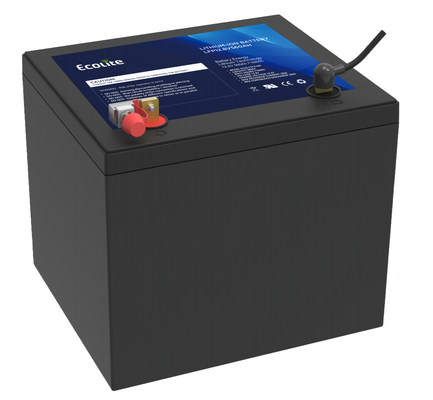

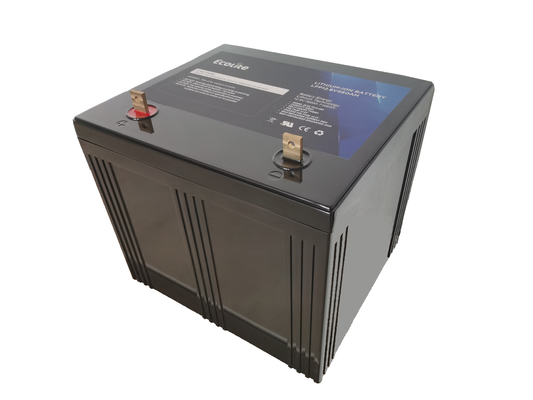

LiFePo4 Battery Pack 560Ah 12.8V Lithium Iron Battery For Marine Yacht Power

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price
Contact Now
Specifications
Highlight:

560Ah LiFePo4 Battery Pack

,

12.8V LiFePo4 Battery Pack

Nominal Voltage:
12.8V
Rated Capacity:
560Ah
Energy:
7168Wh
Resistance:
≤30mΩ
Efficiency:
≥0.98
Cycle Life:
>6000cycles @0.5C,80% DOD
Self Discharge:
<5% Per Month
Max.Modules In Series/Parallel:
4S/2P
Nominal Voltage:
12.8V
Rated Capacity:
560Ah
Energy:
7168Wh
Resistance:
≤30mΩ
Efficiency:
≥0.98
Cycle Life:
>6000cycles @0.5C,80% DOD
Self Discharge:
<5% Per Month
Max.Modules In Series/Parallel:
4S/2P
Description
LiFePo4 Battery Pack 560Ah 12.8V Lithium Iron Battery For Marine Yacht Power

Ecolite LiFePo4 Battery Pack 560Ah 12.8V Lithium iron Battery for Marine Yacht Boat Power

The LFP12-560 Lithium Iron battery ideal for applications where long lifespan,light weight,fast charging and compactness are key.Its practical form factor makes the LFP12-560 perfectly suitable for mobile applications.



FEATURES



Lithium lron Phosphate (LiFePO4).

The safest lithium-ion technology available, designed for marine applications.



Integrated Battery Management System(BMS),

Ensures optimal performance, safety, and extended lifespan.



Flexible Configuration
Supports up to 4S4P (4 in series/4 in parallel) for scalable energy storage solutions.



PERFORMANCE

Long Cycle Life

Long Cycle Life >4000cycles@ 80%DOD.



High Performance

High energy density with high discharge current capabilities and wide operating temperature range.



Lightweight&Low Maintenance

Low weight design with no maintenance required.



Fast Charging

Supports rapid charging for efficient operation.



Eco-Friendly

Environmentally friendly materials and sustainable design.

LiFePo4 Battery Pack 560Ah 12.8V Lithium Iron Battery For Marine Yacht Power 0

Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 560Ah
Energy 7168Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >6000cycles @0.5C,80% DOD
Self Discharge <5% per Month
Max, Modules in Series,Parallel 4S/2P



MechanicalParameters
Size(LxWxH) 401x351x342mm
Size((LxWxH) 15.79x 13.82x 13.46
Weight 50Kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 300A(<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current /
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 14.8V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃

LiFePo4 Battery Pack 560Ah 12.8V Lithium Iron Battery For Marine Yacht Power 1
 Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
