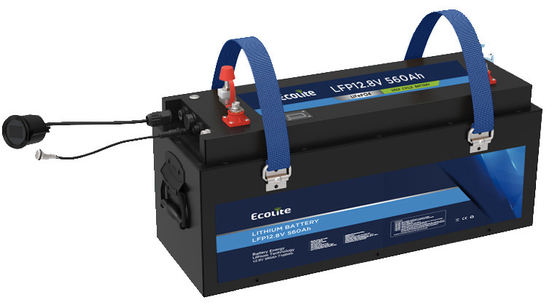

Excellent Cycle Performance 12V560Ah Lifepo4 Battery Energy Storage Battery For Marine Boat
Battery Features
Lithium Iron Phosphate(LiFePO4).
The Safest Lithium Technology.BMS safety management system.
◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures
Products Advantage
The lithium iron phosphate option is more stable at high temperatures, 100%DOD&10-year lifetime: Ecolite lithium battery provide 5000cycles,with 10-year service life,three times longer than lead-acid battery.
Use Grade A Lifepo4 cells. 12V560Ah Lithium ion battery is assembled with Automotive Grade Lifepo4 cell with UL certification, offfering higher energy density, stable performance ,greater power
LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.
Stainless steel case with IP67 waterproof
304/316 stainless steel case is highly resistant to corrosion, making it suitable for use in variousenvironments, including marine and chemical industries.A stainless steel case with IP67 waterproof rating offers a rugged, long-lasting, and moisture-resistant enclosure that provides protection for battery pack in harsh environments.
Ecolite lithium battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched.
Products Specification
| Electrical Parameters |
|
| Marine battey Voltage |
12.8V |
| Battery Capacity |
560Ah |
| Nominal Energy |
7168Wh |
| Resistance |
≤30mΩ |
| Efficiency |
≥0.98 |
| Cycle Life |
＞5000cycles@0.5C,80％ DOD |
| Self Discharge |
＜5％ per Month |
|
Cell in Series/Parallel
|
4S/2P |
| Mechanical Parameters |
|
| Dimension(LxWxH) |
655x301x278mm |
| Dimension(LxWxH) |
25.79x 11.85x 10.94 |
| Weight |
62Kg |
| Terminal Type |
M8 |
| Battery Housing |
SPCC |
| Housing Protection |
IP65 |
| Cell Type-Chemistry |
LiFePO4 Cell |
| Communication |
CAN/Bluetooth/RS485
|
| Discharge Parameters |
|
| Continuous Discharge Current |
200A |
| Pulse Discharge Current |
400A (<10S) |
| Recommended Volt. Disconnect |
10V |
| BMS Discharge Cut-off Voltage |
10V |
| Reconnect Voltage |
10.8V |
| Short Circuit Protection |
300-800us |
| Charge Parameters |
|
| Charge Method |
CC-CV |
| Charge Voltage |
14.2~14.6V |
| Recommended Float Voltage |
13.3~13.4V@100% |
| Recommended Charge Current |
/ |
| Maximum Charge Current |
200A |
| BMS Charge Cut-off Voltage |
14.8V |
| Temperature Parameters |
|
| Battery discharge Temperature |
-20℃ to 55℃ |
| Charge Temperature |
0℃ to 55℃ |
| Storage Temperature |
-20℃ to35℃ |
| BMS High Temperature Cut-off |
60℃ |
| |
