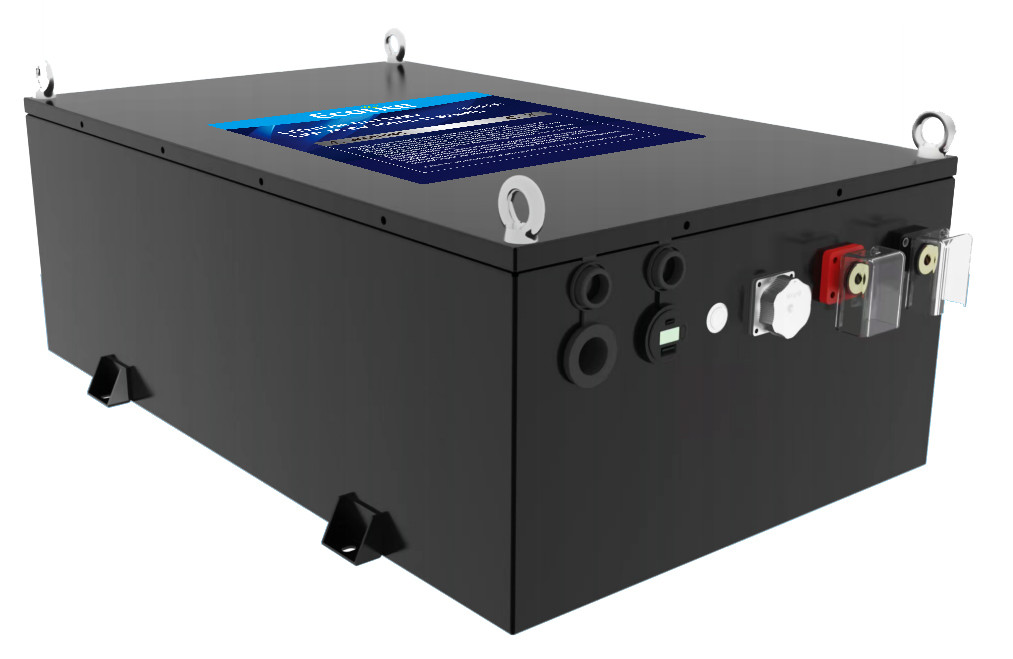

Electric Outboard Boat Batteries 76.8V150Ah LifePO4 Battery For Marine Boat Yacht

50
MOQ
Inquiry
Price
Electric Outboard Boat Batteries 76.8V150Ah LifePO4 Battery For Marine Boat Yacht
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Voltage: 76.8V
Battery Nominal Capacity: 150Ah
Rated Energy: 11520Wh
Inner Resistance: ≤30mΩ
Self Discharge: <3% Per Month
Cell Series/Parallel: 24S/1P
Product Class: IP54
Coummunication Protocol: Bluetooth
Cell Type-Chemistry: Lifepo4 Cell
Charge Temperature: 0℃ To 55℃
Battery Discharge Temperature: -20℃ To 60℃
Battery Scenario: Marine LiFePO4 Battery
Highlight:

Yacht Electric Outboard Boat Batteries

,

76.8V 150Ah Electric Outboard Boat Batteries

,

Marine Boat Electric Outboard Boat Batteries

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

Electric Outboard Boat Batteries 76.8V1500Ah Lifepo4 Battery For Marine Boat Yacht

LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.



Maine battery Features

◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures



Performance
Long Cycle Life >4000cycles,Remaining capacity >80%@25℃,0.5C/0.5,100%DOD.
High Denisity,High Discharge Current,High Temperature Range,Low weight, Free Maintenance.

Fast Charging.

Environment Friendly.



Product Application

Our Marine LiFePO4 battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched lithium battery system.









                                 Electric Outboard Boat Batteries 76.8V150Ah LifePO4 Battery For Marine Boat Yacht 0





Products Specification



Electrical Parameters
Marine battey Voltage 76.8V
Battery Capacity 150Ah
Nominal Energy 11520Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >4000cycles@0.5C,80% DOD
Self Discharge <3% per Month

Max Cell in Series/Parallel

24S/1P





Mechanical Parameters
Dimension(LxWxH) 660x450x231mm
Dimension(LxWxH) 25.98x 17.72x 9.09
Weight 97Kg
Terminal Type M8
Battery Housing SPCC
Housing Protection IP54
Cell Type-Chemistry LiFePO4 Cell
Communication

Bluetooth





Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 600A (<500ms)
Recommended Volt. Disconnect 60V
BMS Discharge Cut-off Voltage 60V
Reconnect Voltage 64.8V
Short Circuit Protection 100-300us



Charge Parameters
Charge Method CC-CV
Charge Voltage 85.2~87.6V
Recommended Float Voltage 79.8~80.4V@100%
Recommended Charge Current    /
Maximum Charge Current 50A
BMS Charge Cut-off Voltage 88.8V



Temperature Parameters
Battery discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature 0℃ to 35℃
BMS High Temperature Cut-off 65℃
