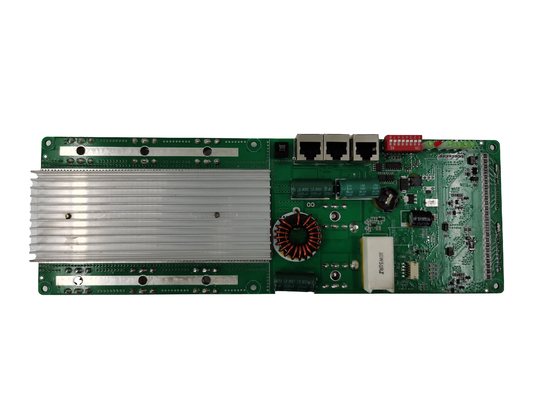

Active Balance 16S 100A / 200A Lifepo4 Battery Management System For Energy Storage

Active Balance 16S 100A / 200A Lifepo4 Battery Management System For Energy Storage

Products	Function configuration
BMS16S100A-X	Function	Configuration	Function	Configuration
Battery packs used in parallel	Supports serial number	8S~16S	Pre-discharge function	Standard
	Support ontinuous current	100A	485 Communication (lsolation)	Standard
	NTC Quantity	2 channels built-in 4 channels external	CAN Communication	Standard
	Equalization function	Passive equalization	232 Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function Standard	Standard	LCD display	Optional
	Battery packs used in parallel	Support	LED indicator interface	Standard
	Data storage function	Standard

Products	Function confiquration
BMS16S100A-Y	Function	Configuration	Function	Configuration
Battery packs used in parallel	Supports serial number	8S~16S	Data storage function	Standard
	Support ontinuous current	100A	Pre-discharge function	Standard
	NTC Quantity	2 channels built-in 4 channels external	485 Communication	Standard
	Equalization function	Passive equalization	CAN Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function	Standard	LCD display	Optional
	Battery packs used in parallel	Support	LED indicator interface	Support

Products	Function configuration
BMS16S200A	Function	Configuration	Function	Configuration
350x110x29.5mm	Supports serial number	8S~16S	Data storage function	Standard
	Support ontinuous current	200A	Pre-discharge function	Standard
	NTC Quantity	2 channels built-in 4 channels external	485 Communication	Standard
	Equalization function	Passive equalization	CAN Communication	Standard
	Switch function	Standard	Heating film interface	Support
	Charging current limiting function	Standard	Display	Support 7-inchCOF Screen
	Battery packs used in parallel	Support	LED indicator interface	Reserved interface

PRODUCT FEATURES:

The BMS records operational data and communicates with other systems, allowing remote monitoring and management of the battery pack.

Prolonging Battery Life:


By managing charging and discharging cycles accurately, the BMS significantly prolongs the battery life, making energy storage solutions more cost-effective.

BMS plays a crucial role in large-scale energy storage systems. It ensures safe operation, maximizes battery performance, and extends the usable life of battery packs. This makes BMS technology a critical factor in the success of renewable energy integration, grid stabilization, and backup power solutions provided by BESS.

Battery Management Systems (BMS) are the cornerstone of Battery Energy Storage Systems (BESS), providing essential monitoring, protection, and optimization functions. By managing battery cells with precision, BMS not only extends the lifespan of batteries but also ensures the overall safety and efficiency of energy storage operations. As BESS continues to play a pivotal role in renewable energy and grid stabilization, the advancements in BMS technology will further support the transition towards a more sustainable energy future.
