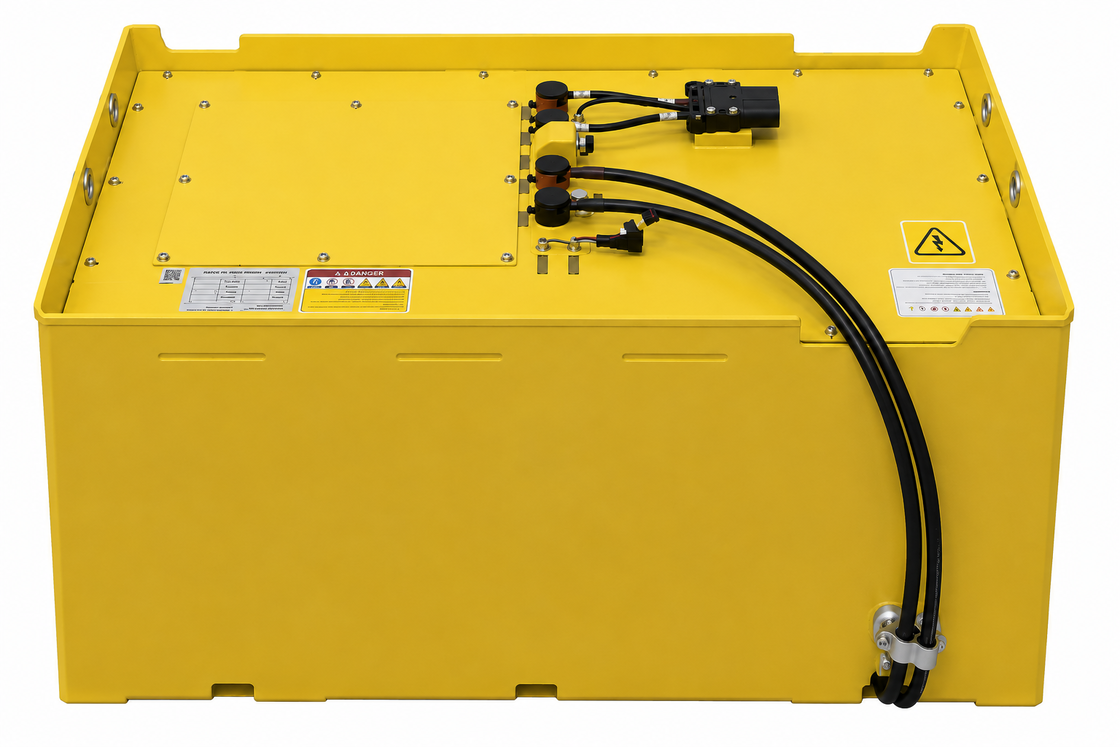

Forklift Lithium Battery 51.2V 300Ah 300A Continuous 500A Pulse 3000 Cycles

Forklift Lithium Battery 51.2V 300Ah 300A Continuous 500A Pulse 3000 Cycles

Replace Lead Acid with This Forklift Lithium Battery
This Forklift Lithium Battery is specifically designed for electric forklifts and industrial traction applications. This Forklift Lithium Battery directly replaces heavy lead acid batteries with higher energy density, longer lifespan, fast charging, zero memory effect, and maintenance free operation. The integrated BMS provides intelligent management and comprehensive protection. We support customization for various forklift brands and lead acid to lithium conversions. If you want to change your lead acid forklift battery to a Forklift Lithium Battery, this is your best choice.

Core Specifications of This Forklift Lithium Battery
This Forklift Lithium Battery has a nominal voltage of 51.2V with 300Ah rated capacity. Total energy of this Forklift Lithium Battery is 15,360 watt hours (15.4kWh). Internal resistance of this Forklift Lithium Battery is ≤60 milliohms. Efficiency of this Forklift Lithium Battery reaches 98 percent. Self discharge of this Forklift Lithium Battery is less than 5 percent per month. Cycle life of this Forklift Lithium Battery exceeds 3000 cycles at 1C and 80% DOD while retaining over 80 percent capacity. Cell configuration is 16S1P. Dimensions including handle are 985mm by 543mm by 635mm. Weight of this Forklift Lithium Battery is 790±10 kilograms. Terminal types on this Forklift Lithium Battery include Anderson 350A and REMA 160A. Housing is SPCC steel with IP54 protection. Communication interfaces on this Forklift Lithium Battery include RS485 and CAN.

Discharge Performance
Continuous discharge current is 300 amps, sufficient for full load forklift operation including lifting and travel. Pulse discharge current reaches 500 amps for less than 5 seconds, handling peak demand during heavy lifts and acceleration. Recommended voltage disconnect is 40V. BMS discharge cut off voltage is 40V with reconnect at 48V. Short circuit protection is integrated (specific time not listed).

Charge Parameters
Charging uses the CC CV method with charge voltage range of 56.8V to 58.4V. Recommended float voltage is 53.6V to 55.2V. Recommended charge current is 150 amps for optimal cycle life and safe daily charging. BMS charge cut off voltage is set to 58.4V. Fast charging reduces downtime between shifts.

Discharge Performance of This Forklift Lithium Battery
Continuous discharge current of this Forklift Lithium Battery is 300 amps, sufficient for full load forklift operation including lifting and travel. Pulse discharge current of this Forklift Lithium Battery reaches 500 amps for less than 5 seconds, handling peak demand during heavy lifts and acceleration. Recommended voltage disconnect for this Forklift Lithium Battery is 40V. BMS discharge cut off voltage is 40V with reconnect at 48V. Short circuit protection is integrated.

Charge Parameters for This Forklift Lithium Battery
Charging this Forklift Lithium Battery uses the CC CV method with charge voltage range of 56.8V to 58.4V. Recommended float voltage for this Forklift Lithium Battery is 53.6V to 55.2V. Recommended charge current for this Forklift Lithium Battery is 150 amps for optimal cycle life. BMS charge cut off voltage is set to 58.4V. Fast charging of this Forklift Lithium Battery reduces downtime between shifts.

Forklift Lithium Battery Benefits
This Forklift Lithium Battery offers high energy density for longer run times. Fast charging of this Forklift Lithium Battery allows opportunity charging during breaks. No memory effect means partial charges do not reduce capacity of this Forklift Lithium Battery. Lightweight design of this Forklift Lithium Battery (compared to lead acid) improves forklift efficiency and reduces floor loading. This Forklift Lithium Battery provides environmental protection with zero emissions and no acid spills. The intelligent BMS on this Forklift Lithium Battery with RS485/CAN communication provides real time data to the forklift controller and fleet management system.

Temperature Range of This Forklift Lithium Battery
Discharge temperature range of this Forklift Lithium Battery is -20°C to 60°C. Charge temperature range is 0°C to 55°C. Storage temperature range is -20°C to 60°C. For cold storage warehouses, optional heating is available for this Forklift Lithium Battery.

Customization Options for This Forklift Lithium Battery
We support customization of various voltages and capacities for different forklift brands. Lead acid to lithium conversion kits are available for this Forklift Lithium Battery. Brands that have been customized for customers include many major forklift manufacturers. Contact us with your forklift model and specifications to order your Forklift Lithium Battery.

Applications for This Forklift Lithium Battery
This Forklift Lithium Battery is ideal for counterbalance forklifts, reach trucks, pallet stackers, order pickers, and AGVs. This Forklift Lithium Battery suits warehouse distribution centers, manufacturing plants, cold storage facilities, and port terminals. This Forklift Lithium Battery can replace lead acid batteries in most Class I, II, and III electric forklifts.

Installation Notes for This Forklift Lithium Battery
Remove the existing lead acid battery and tray if necessary. Install this Forklift Lithium Battery using the original hold downs or custom brackets. Connect the Anderson 350A or REMA 160A terminals of this Forklift Lithium Battery to the forklift controller. Connect RS485 or CAN from this Forklift Lithium Battery to the display or fleet management system. Ensure the charger is programmed for this Forklift Lithium Battery with absorption 58.4V and float around 54V. No watering or equalization charges are required for this Forklift Lithium Battery.
