Highlight:
4000 Cycle Life LiFePO4 Pack
, Fast Charge Forklift Battery
, Zero Maintenance Drop-in Replacement

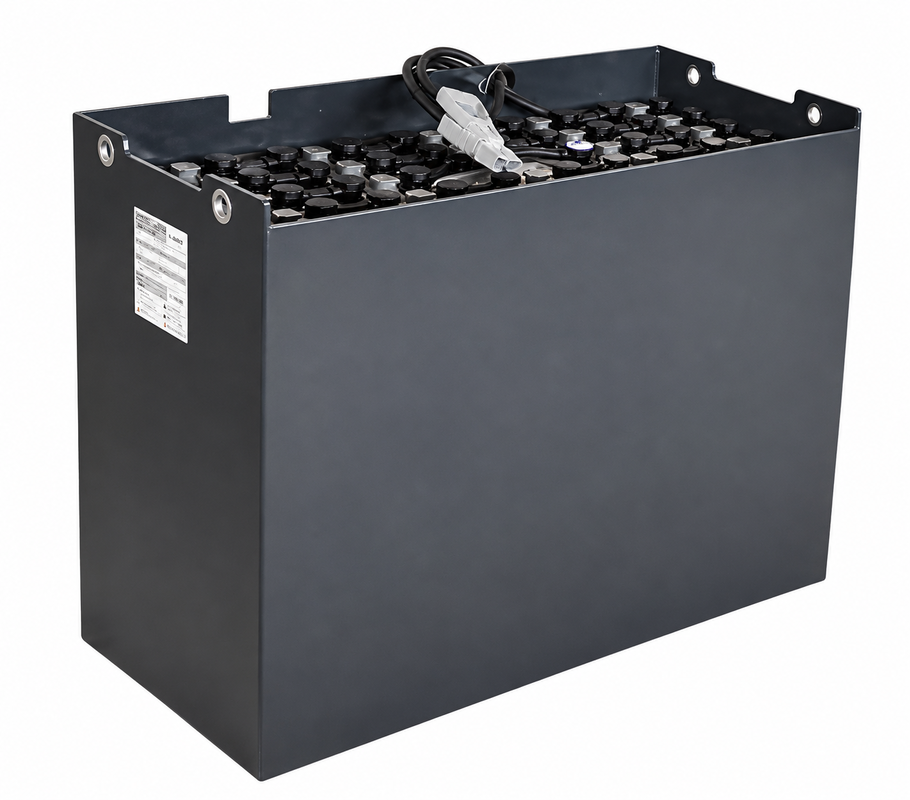

48V 600Ah LiFePO4 Forklift Lithium Battery 4000 Cycle Life Counterbalance Truck Power
Product Overview
This 48V 600Ah LiFePO4 forklift lithium battery is engineered for counterbalance forklifts in the 2.5-3.5 ton class, delivering up to 4000 charge cycles at 80% depth of discharge (DOD). Compared with traditional lead-acid batteries that typically last only 1200-1500 cycles, this lithium iron phosphate power pack extends service life by 2.5-3 times, significantly reducing the total cost of ownership over the equipment lifecycle.
The battery adopts automotive-grade LiFePO4 prismatic cells with welded busbar connections, ensuring low internal resistance, excellent thermal stability and consistent voltage output under heavy lifting loads. It is designed as a true drop-in replacement, fitting standard 48V battery compartments without modification to the forklift or charger system.
Core Selling Point: Industry-Leading Cycle Life
Cycle life is the most critical parameter for forklift battery economics. Our 48V 600Ah LiFePO4 battery achieves 4000 cycles at 80% DOD, verified through accelerated aging tests following IEC 62660-1 standards. This translates to 8-10 years of service in single-shift operation, or 4-6 years in demanding multi-shift applications.
- 4000 cycles @ 80% DOD: 2.5-3x longer than lead-acid batteries
- Deep discharge capability: supports 100% DOD in emergency situations without permanent damage
- Low self-discharge rate: less than 3% per month, ideal for intermittent operation
- No memory effect: partial charging does not reduce usable capacity
- Consistent performance: voltage plateau maintains full lifting speed until the last 5% of capacity
Discharge Characteristics
| Discharge Rate | Capacity Retention | End Voltage | Max Duration |
|---|
| 0.5C (300A) | 100% | 45.6V | Continuous |
| 1C (600A) | 95% | 44.4V | Continuous |
| 1.5C (900A) | 90% | 42.0V | 30 min |
| 2C (1200A) | 85% | 40.8V | 3 seconds (peak) |
The wide discharge plateau between 2.8V and 3.2V per cell ensures the forklift maintains full hydraulic lifting speed and travel performance until the battery reaches 95% depth of discharge. Operators will not experience the "power fade" typical of lead-acid batteries in the final hours of a shift.
Charging Parameters
| Parameter | Standard Charging | Fast Charging |
|---|
| Charging Current | 0.2C (120A) | 0.5C (300A) |
| Charging Voltage | 54.75V (3.65V/cell) | 54.75V (3.65V/cell) |
| Charging Time | 3 hours | 1-2 hours |
| Charge Efficiency | 95% | 93% |
| Recommended Charger | 48V 120A LiFePO4 charger | 48V 300A fast charger |
Lithium vs Lead-Acid Comparison
| Parameter | LiFePO4 Lithium Battery | Lead-Acid Battery |
|---|
| Cycle Life (80% DOD) | 4000 cycles | 1200-1500 cycles |
| Service Life | 8-10 years | 2-3 years |
| Charging Time | 1-2 hours (fast charge) | 8-10 hours |
| Energy Efficiency | 95% | 70-80% |
| Maintenance | Zero maintenance | Water refilling, equalization |
| Weight | Approx. 40% lighter | Heavy |
| Opportunity Charging | Supported | Not recommended |
| Acid Fumes / Spills | None | Risk of acid leakage |
| Operating Temperature | -20 to 55 degrees C | -10 to 45 degrees C |
| Battery Change-Out | Not required | Required for multi-shift |
| Lifetime Cost per kWh | 30-50% lower | Baseline |
Technical Specifications
| Nominal Voltage | 48V |
| Nominal Capacity | 600Ah |
| Energy | 28.8 kWh |
| Cycle Life | 4000 cycles @ 80% DOD |
| Cell Chemistry | LiFePO4 (LFP) prismatic |
| Cell Configuration | 15S (15 cells in series) |
| BMS | Smart BMS with CAN bus 2.0 |
| Communication Protocol | CANopen, J1939 (optional) |
| Charging Time | 1-2 hours (fast charge) |
| Max Discharge Current | 1C continuous, 2C peak (3s) |
| Self-Discharge Rate | Less than 3% per month |
| Protection Rating | IP54 |
| Operating Temperature | -20 to 55 degrees C (charge 0-55) |
| Storage Temperature | -20 to 45 degrees C (recommended 25) |
| Weight | Approx. 450kg |
| Dimensions (L x W x H) | Customizable to battery compartment |
| Warranty | 3 years |
Dimension Options (Reference)
| Model | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|
| FL-48V600Ah-A | 990 | 700 | 520 | 450 |
| FL-48V600Ah-B | 1050 | 650 | 560 | 460 |
| FL-48V600Ah-C (custom) | Per drawing | Per drawing | Per drawing | Varies |
Smart BMS Protection
The built-in intelligent BMS continuously monitors cell voltage, current and temperature, providing comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, high temperature and cell imbalance. Real-time status is communicated to the forklift controller via CAN bus, and optional Bluetooth / 4G modules enable remote fleet monitoring through our cloud platform.
| Protection Function | Threshold | Response |
|---|
| Overcharge Protection | 3.75V per cell | Disconnect charging |
| Over-discharge Protection | 2.5V per cell | Disconnect load |
| Overcurrent Protection | 2C (1200A) | Disconnect within 3s |
| Short Circuit Protection | Immediate | Disconnect instantly |
| High Temperature Protection | 65 degrees C | Reduce current / cutoff |
| Cell Balancing | +/- 20mV | Passive balancing |
Applications
This 48V 600Ah lithium battery is suitable for counterbalance forklifts, reach stackers, and electric port equipment in warehouses, logistics centers, manufacturing plants, cold storage facilities and container terminals. The wide operating temperature range and IP54 protection make it reliable in demanding environments.
- Counterbalance forklifts 2.5-3.5 ton class
- Reach stackers and container handlers
- Cold storage and freezer warehouse operation
- Multi-shift distribution and logistics centers
- Manufacturing plants with continuous operation
Quality Assurance & Certifications
- ISO 9001:2015 quality management system certified factory
- Cell level: UN38.3, UL1642, IEC62133 certified
- Pack level: CE, RoHS compliant
- 100% aging tested before shipment, 3-year warranty on the complete battery pack
Packaging & Shipping
| Item | Detail |
|---|
| Packaging | Export-grade wooden case, shock-proof foam insert |
| Transport Classification | UN3480, Class 9 dangerous goods |
| Documents | MSDS, UN38.3 test report, CO, Commercial Invoice |
| Shipping Methods | Sea freight, air freight (per regulation) |
| Lead Time | 15-25 days after deposit |
Customization Options
- Voltage / capacity customization per forklift model
- Connector type: Anderson, REMA, or per customer drawing
- BMS communication protocol matching major forklift brands (Toyota, Linde, STILL, Jungheinrich, Hangcha, Heli)
- OEM / ODM branding and packaging available
- Optional heating pad for -30 degrees C cold storage operation
Frequently Asked Questions
Q1: Can this battery replace my existing lead-acid battery directly?
A: Yes. The FL-48V600Ah is designed as a drop-in replacement with matching dimensions and connectors. Our engineers will confirm compatibility based on your forklift model before shipment.
Q2: Do I need a new charger?
A: We recommend a LiFePO4-specific charger. If you have a compatible 48V lithium charger, it can be reused. Existing lead-acid chargers must not be used.
Q3: How long does the battery last per charge?
A: With 600Ah capacity and typical 2.5-3.5T forklift duty cycles, one charge supports 6-8 hours of continuous operation, or a full multi-shift schedule with opportunity charging.
Q4: Is the battery safe?
A: LiFePO4 chemistry is the safest lithium battery chemistry, with high thermal stability and no thermal runaway risk under normal operation. The battery is UN38.3 certified and fully protected by the smart BMS.
Contact us today for a quotation and free technical consultation for your forklift fleet electrification project.
