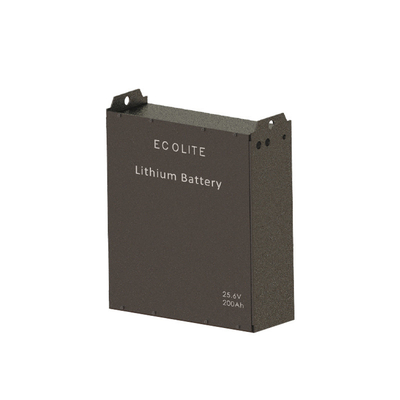

24V 48V 51.2V LiFePo4 Battery Pack 200Ah Forklift Traction Battery Industrial Lithium Battery

Name: 24V 48V 51.2V LiFePo4 Battery Pack 200Ah Forklift Traction Battery Industrial Lithium Battery
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LIFEPO4
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Model Number: LIFEPO4

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              200Ah Forklift Traction Battery, Industrial 24v Traction Battery, LiFePo4 48v Traction Battery


Nominal Voltage:	25.6V	Rated Capacity:	200Ah
Energy:	5.12KWh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4P/8S

Nominal Voltage:	25.6V
Rated Capacity:	200Ah
Energy:	5.12KWh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4P/8S

Description

24V 48V 51.2V LiFePo4 Battery Pack 200Ah Forklift Traction Battery Industrial Lithium Battery

Forklift 24V 48V 51.2V LiFePo4 Battery Pack 200Ah,Traction Battery,lithium truck,industrial lithium batteries

24V 48V 51.2V LiFePo4 Battery Pack 200Ah Forklift Traction Battery Industrial Lithium Battery 0

Forklift battery, autocraft tx20hl battery,

8ah lithium motorcycle battery, eco battery 48v 72ah,

autocraft battery tx20hl

24V 48V 51.2V LiFePo4 Battery Pack 200Ah Forklift Traction Battery Industrial Lithium Battery 1

Mechanical Parameters
Dimension(D×W×H)	206550630mm
Dimension(D×W×H)	8.1121.6524.80"
Weight	80kg(No counterweight included
Terminal Type	Optional
Battery Housing	Metal
Housing Protection	IP30(Optional)
Cell Type-Chemistry	LiFePO4 Cell
SOC	YES

Discharge Parameters
Continuous Discharge Current	200A
Maximum Discharge Current	400A
Recommended Volt. Disconnect	21.6V
BMS Discharge Cut-off Voltage	20V
Reconnect Voltage	24V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	29.2V
Recommended Float Voltage	28.8V
Recommended Charge Current	200A
Maximum Charge Current	400A
BMS Charge Cut-off Voltage	30V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃
